1.3 Device views
1.3.1 Front view

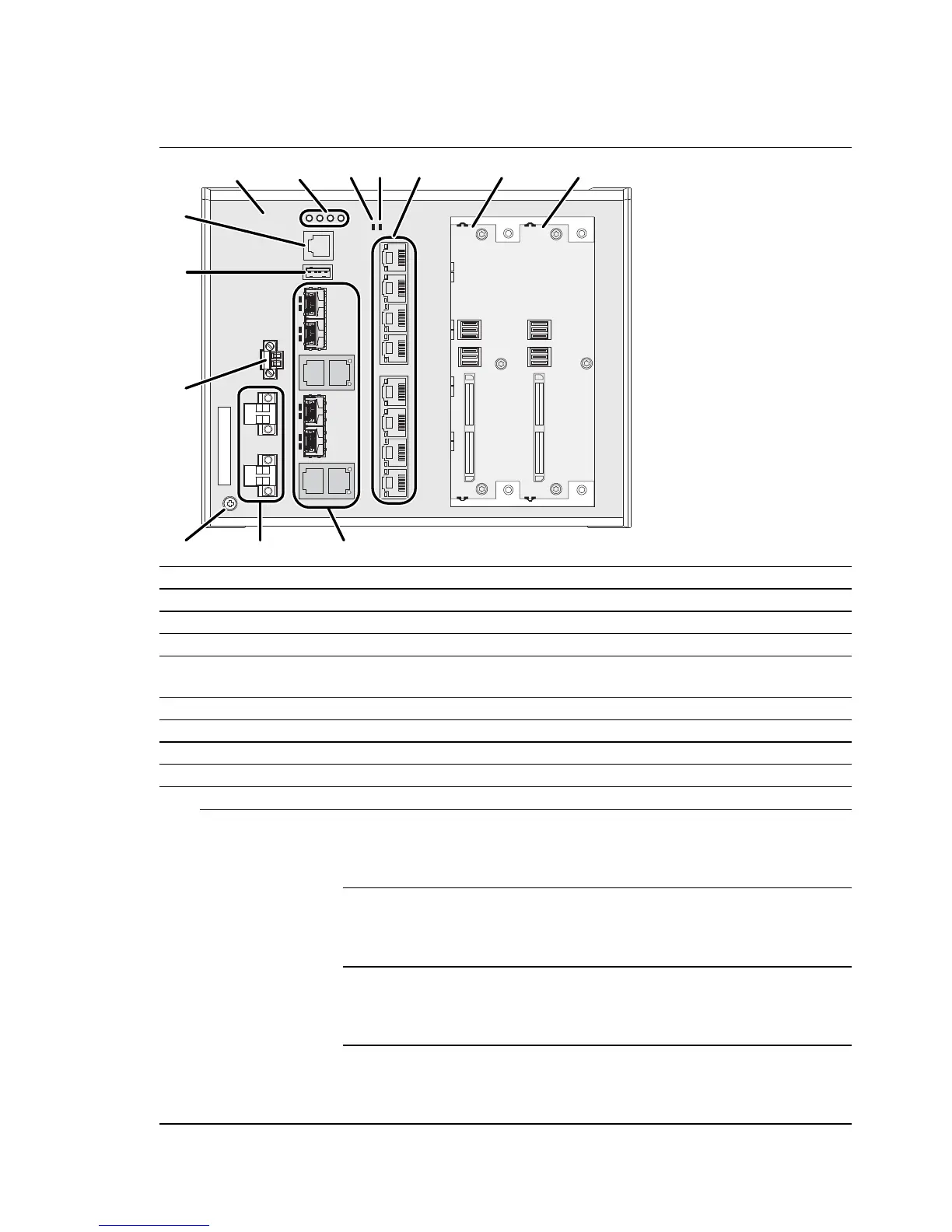

Front view (using the example RSPE30-24044O7T99-SCC...)
1 RSPE basic device (slot 1)
2 LED display elements for device status
3 LED display element for media module status
4 only device variants RSPE32 and RSPE37:
LED display element for media module status and PoE status
5 Media module with 8 × RJ45 socket for 10/100 Mbit/s twisted pair connections (slot 1)
6 Slot 2 for media module RSPM
7 Slot 3 for media module RSPM
8 4 × Combo-Port for 10
a
100/1000 Mbit/s connections (slot 1)
9 Supply voltage connection
alternatively,
depending on
device variant
Supply voltage
with the
characteristic
value:
CC
 2 voltage inputs for redundant power
supply
 2-pin terminal block
Supply voltage
with the
characteristic
value:
K9
 1 voltage input
 3-pin terminal block
Supply voltage
with the
characteristic
value:
KK
 2 voltage inputs for redundant power
supply
 3-pin terminal block
Supply voltage
with the
characteristic
value:
PP
 2 voltage inputs for redundant power
supply
 2-pin terminal block
1
34 5
6
7
8
10
9
11
12
13
2
