Installation
RSPE30/32/35/37
Release
16
04/2019
59
7.2
Dimension dr
awings

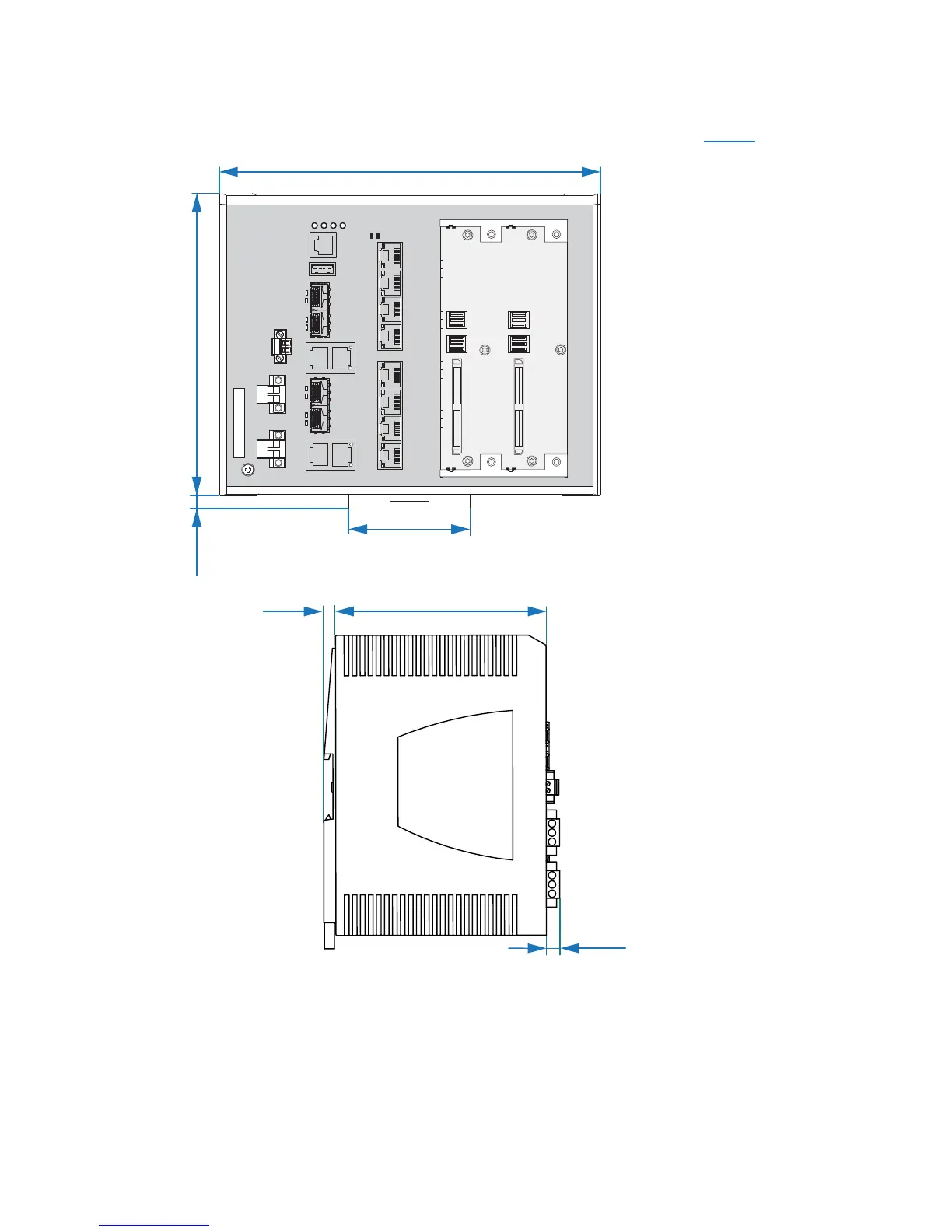

Figure 9:
Dimensions of the device va
riant
s with operating temperature
characteristic value
S. For the characteristic value, cf.
“Device name and
product code” on page
21
.
209
mm
inch
60
2.36
164
6.46
7,1
0.27
115
4.52
6,6
0.26
7,3
0.29
8.19
58
60
