1.5.1 10/100 Mbit/s twisted pair port
This port is an RJ45 socket.
The 10/100 Mbit/s twisted pair port allows you to connect network
components according to the IEEE 802.3 10BASE-T/100BASE-TX standard.
This port supports:
 Autonegotiation
 Autopolarity
 Autocrossing (if autonegotiation is activated)
 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
 10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
Delivery state: Autonegotiation activated
The port casing is electrically connected to the front panel.
1.5.2 Gigabit combo port
The RSPE30/32/35/37 device provides 4 combo ports for transmission
speeds of up to 1000 Mbit/s.
See table 6 on page 28.
You have the option of alternatively connecting a twisted pair cable via a
RJ45 socket or an optical fiber via a SFP transceiver to a combo port.
You obtain appropriate SFP transceivers as an accessory.
See “Accessories” on page 69.
By inserting a SFP transceiver, you deactivate automatically the
corresponding twisted pair interface.
 10/100/1000 Mbit/s twisted pair port
This port is an RJ45 socket.
The 10/100/1000 Mbit/s twisted pair port allows you to connect network
components according to the IEEE 802.3 10BASE-T/100BASE-TX/
1000BASE-T standard.

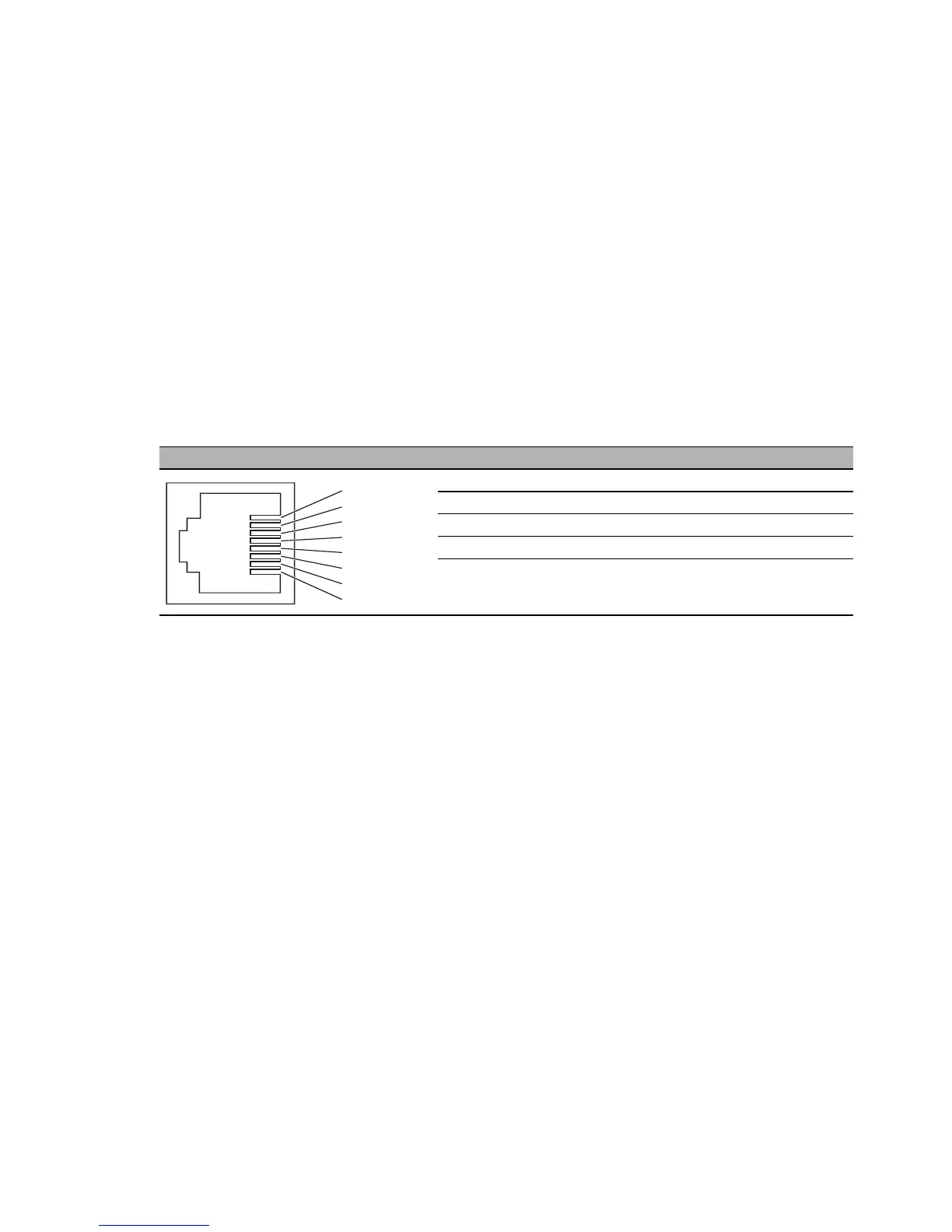

Pin Function
1 RD+ Receive path
2RD− Receive path
3 TD+ Transmission path
6TD− Transmission path
4,5,7,8 —
Table 7: Pin assignment 10/100 Mbit/s twisted pair port, RJ45 socket, MDI-X mode
