2.4.1 Installing the device onto the DIN rail
Verify that the device maintains the minimum clearance to meet the climatic
conditions during operation:
Top and bottom device side: 3.94 in (10 cm)
Left and right device side: 0.79 in (2 cm)
Decreasing the minimum clearance reduces the specified maximum
operating temperature.
See “General technical data” on page 55.
To mount the device onto a horizontally mounted 35 mm DIN rail according
to DIN EN 60715, proceed as follows:

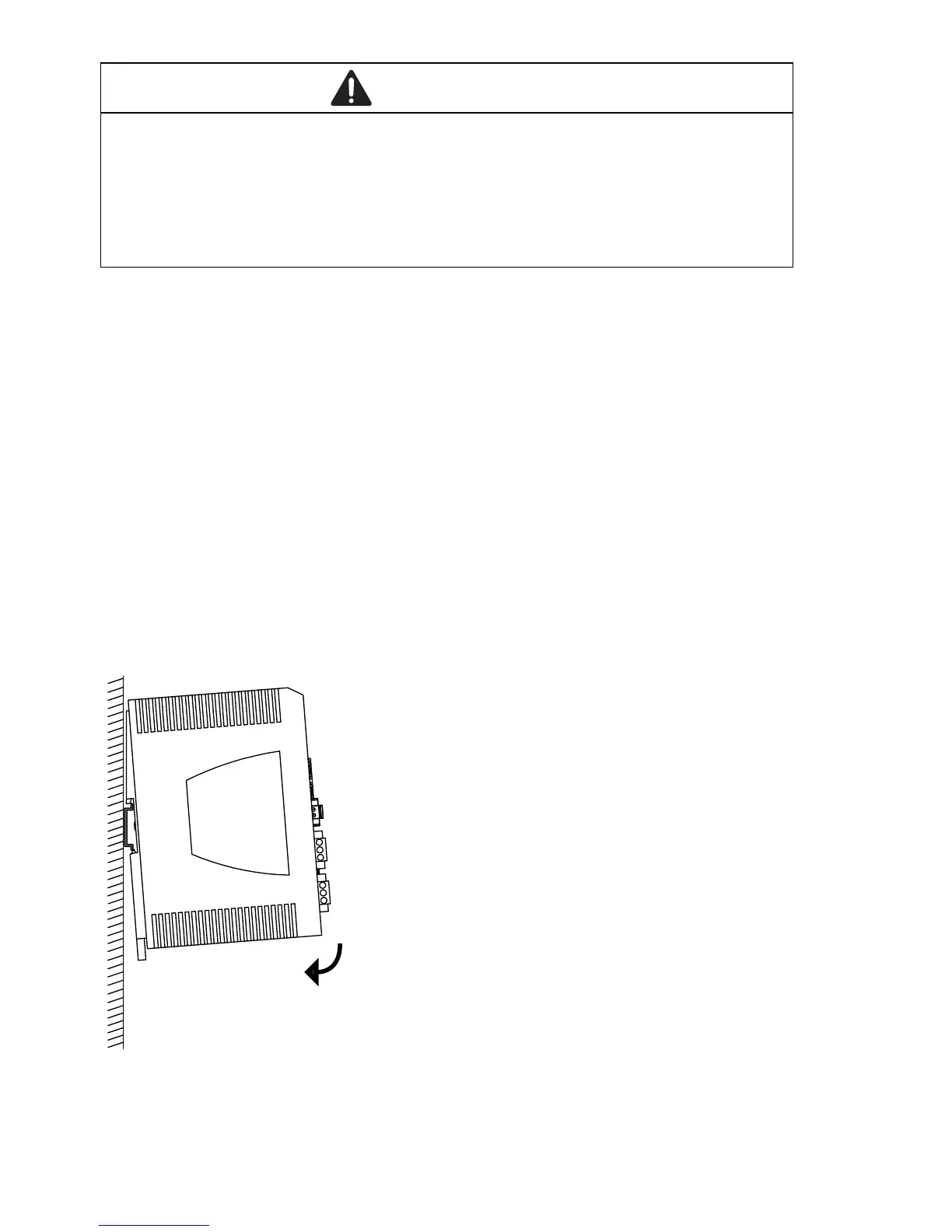

Slide the upper snap-in guide of the device into the DIN rail.
Press the media module downwards onto the clip-in bar.
Snap in the device.
Note: The overall shield of a connected shielded twisted pair cable is
connected to the grounding connector on the front panel as a conductor.
WARNING
ELECTRIC SHOCK
Install this device solely in a switch cabinet or in an operating site with
restricted access, to which maintenance staff have exclusive access.
Failure to follow this instruction can result in death, serious injury, or
equipment damage.
