6
SETTINGOFDIPSWITCHESANDRSWSWITCHES
ELECTRICAL AND CONTROL SETTINGS
6.3 Seng of DIP switches and RSW switches

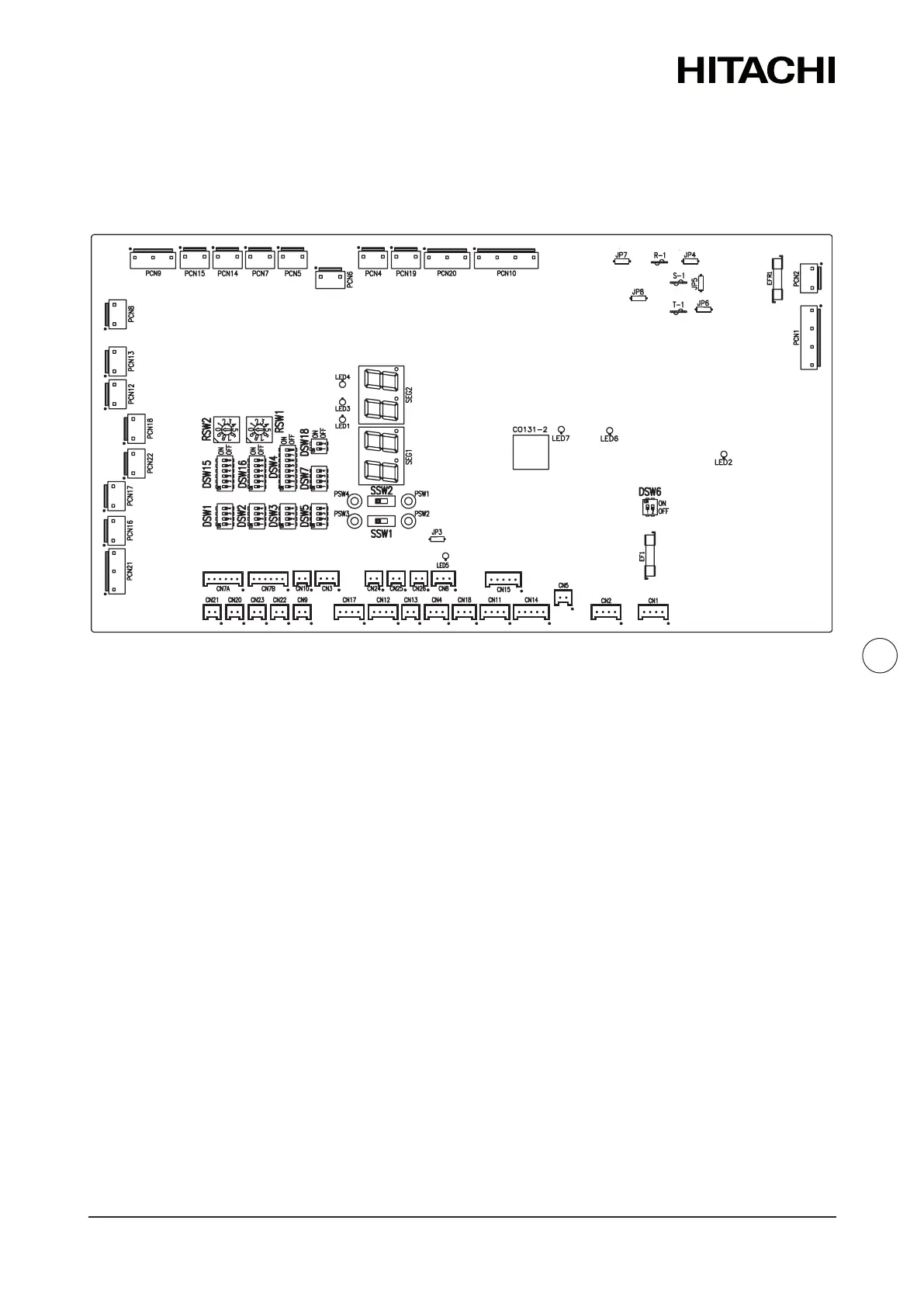

6.3.1 Locaon of DIP switches and rotary switches
6.3.1.1 Funcon of DIP switches and rotary switches
 NOTE
• The mark “” indicates the dip switches posions.
• No mark “” indicates pin posion is not aected.
• The gures show the sengs before shipment or aer selecon.
• “Not used” means that the pin must not be changed. A malfuncon might occur if changed.
! CAUTION
Before seng dip switches, rst turn the power supply OFF and then set the posion of dip switches.
If the switches are set without turning the power supply OFF, the contents of the seng are invalid.
