HOLOPLOT X1 User Manual

16X1 MD80-S Manual 1.0 en

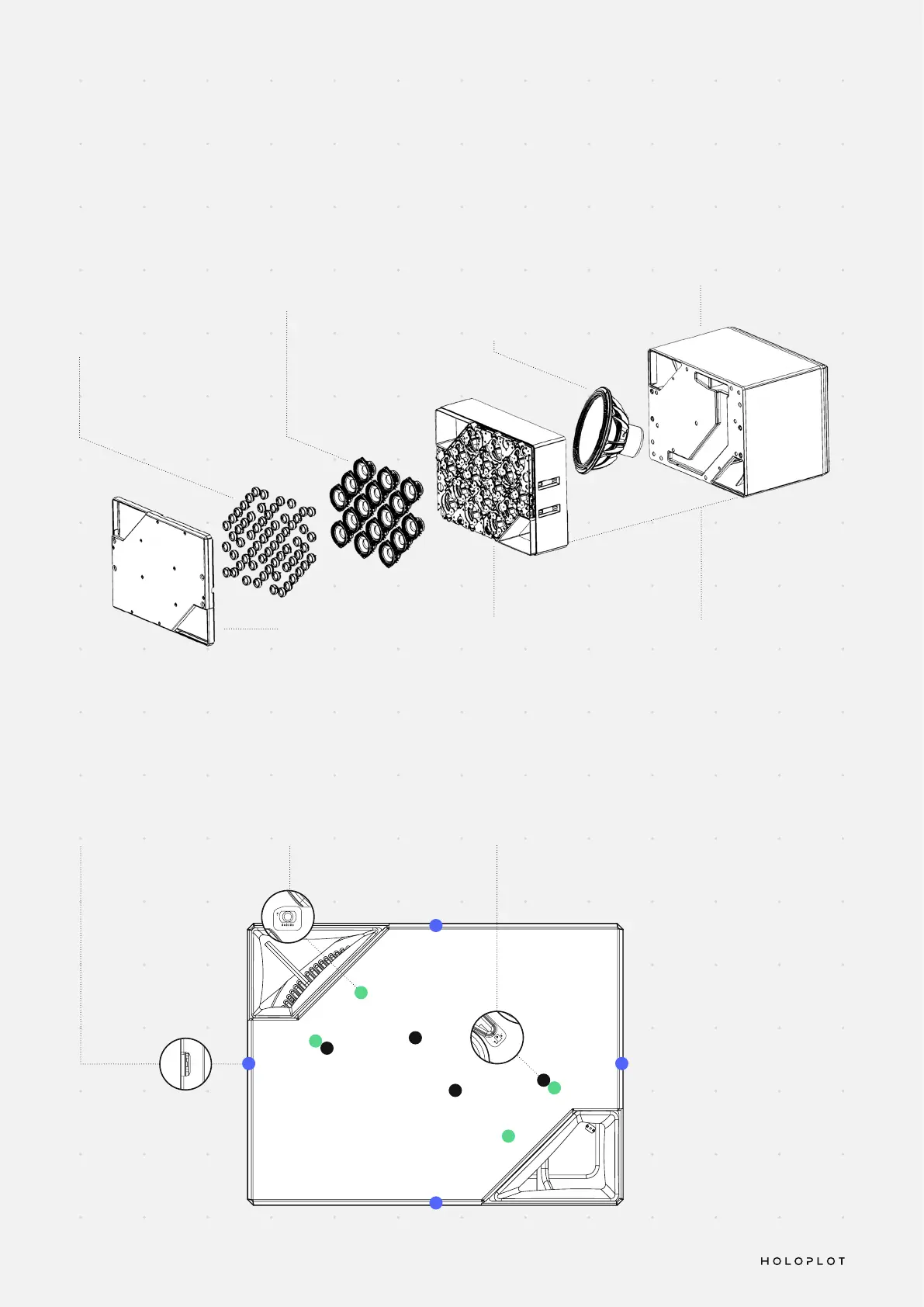

THE LOUDSPEAKER CABINET
The Loudspeaker Cabinet of the MD80-S is constructed
of an enclosure made of glass ber-reinforced
polycarbonate and a wooden extension housing.
The wooden extension housing integrates the subwoofer
driver as well as a dedicated digital subwoofer amplier
module with independent AC to DC power supply
unit, a differential pressure sensor and a zero-latency
DSP - enabling adaptive closed-loop processing of the
subwoofer driver signal.
1. 4x infrared transceivers —
enabling an Audio Module to
identify its location within an array
3. 4x digital microphones —
for quality control of the
loudspeaker drivers
2. 4x front-facing RGB LEDs —
for easily locating the Audio
Module in the venue
Further features:
• 2x temperature sensors —
each monitoring a low-
frequency loudspeaker
drivers’ magnet assembly
• 2x temperature sensors —
each monitoring a high-
frequency loudspeaker
drivers’ magnet assembly
• 2x orientation sensors —
detecting Audio Module’s
orientation
11
1
1
2
2
2
2
3
3
3
3
The MD80-S integrates the following active electronic
components in its glass ber polycarbonate enclosure:
X1 Modul 80-S
An 18-inch sensor-controlled
subwoofer driver with two
high energy, high-density
neodymium-iron-boron magnets
in a bandpass enclosure
Glass ber-reinforced
polycarbonate enclosure
Air-ow optimized
subwoofer ports
16x 5-inch low-frequency cone
loudspeaker drivers in individual
dual-ported chambers
64x 1.3-inch high-frequency
soft-dome loudspeaker
drivers coupled with individual
wave guides — delivering
powerful sound with a studio-
grade brilliance
Metal grille and hydrophobic,
damp, and dust repellent
acoustic cloth - protecting the
HF and LF drivers
Wooden extension housing
