HOLOPLOT X1 User Manual

17X1 MD80-S Manual 1.0 en X1 Modul 80-S
THE ELECTRONICS PACKAGE
The Electronics Package is fabricated of aluminum
alloy and houses the main electronic components. It is
both the brain and powerhouse of the Audio Module,
integrating processor and amplication.
The Electronics Package connects to the Loudspeaker
Cabinet through two 108-pin connectors, which carry the
amplied loudspeaker signals, a digital bus, and power
for the active electronic components in the front of the
Audio Module.
The Electronics Package integrates:
• 5x 16-channel digital amplier modules — providing
individual amplication and DSP control to each of
the 80 drivers in the rst two matrix layers
• 2x AC to DC amplier “Smart Rail” power supply
modules
• 2x DC amplier energy storage modules
• the “Core” — integrating a processing module
combining a high-performance Field Programmable
Gate Array (FPGA) and a dual-core ARM®
Cortex™-A9, with an independent AC to DC ancillary
power supply
• an optional “Dante Module” — providing Dante audio
networking connectivity
• 8x temperature-controlled fans — actively cooling
the Electronics Package
• the “Display Panel” — providing information on the
Audio Module’s ID and status

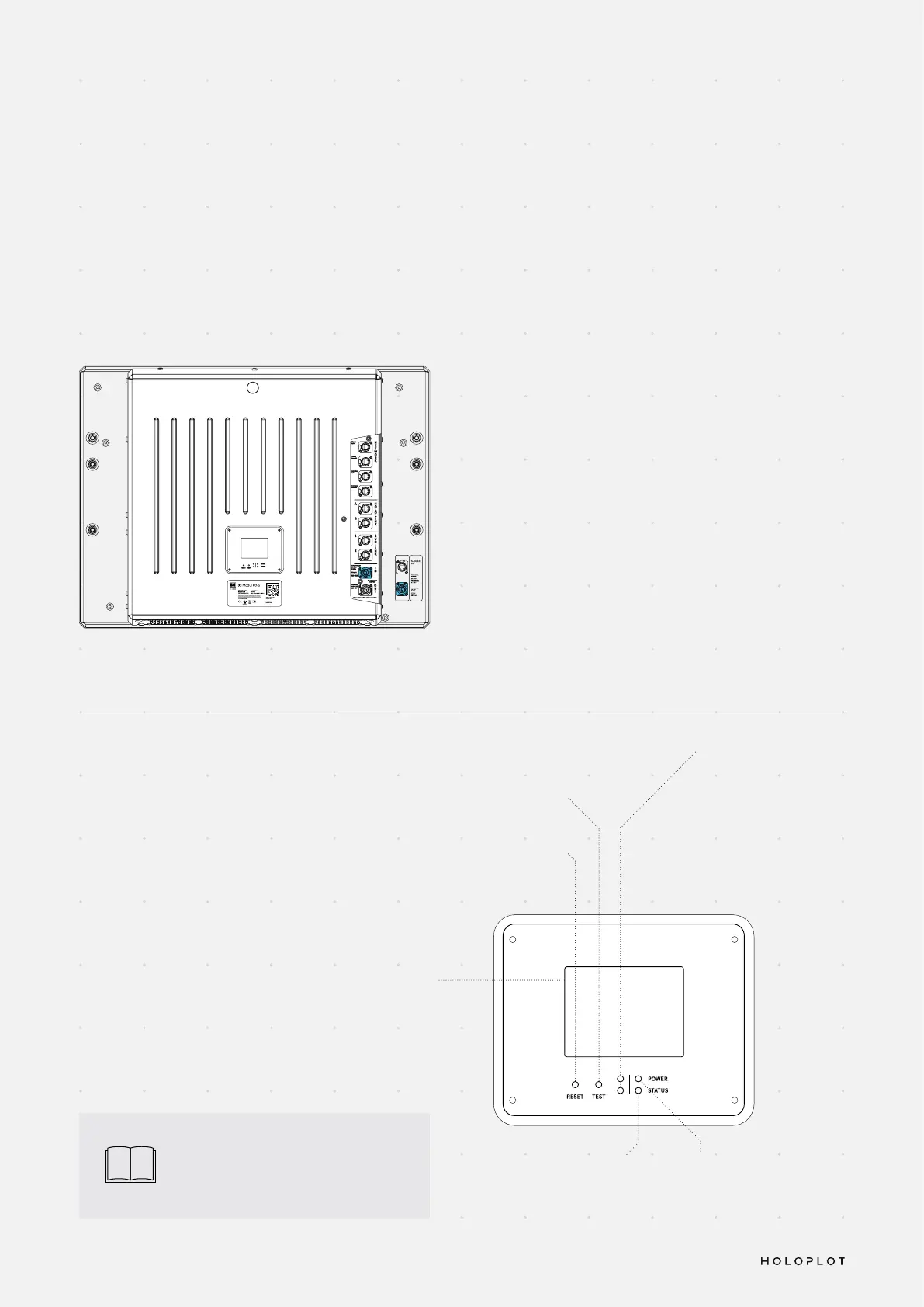

THE DISPLAY PANEL
The backside of the Electronics Package integrates
the Display Panel, which displays Audio Module status
and error messages, and provides basic information
like IP addresses and rmware version. The resistive
touch screen responds to pressure and therefore can be
operated by a ngertip, even when wearing gloves, or by
an appropriate stylus tip (pen).
“Reset”
pin-hole switch
“Test”
pin-hole switch
2x LEDs for contextual Audio
Module status display
• the upper LED lights up
blue when Audio Module
is in factory mode
• the lower LED mirrors
the behavior of the four
RGB LEDs on the front of
the Loudspeaker Cabinet
3.5” TFT color touch screen
with a resolution of 320 x 240
pixels screen: displays the serial
number, rmware version,
IP addresses, Audio Module
state, and error messages in
case a fault was detected
LED labeled “STATUS” for
general Audio Module status
indication, which lights up
red if an error is detected
and is off otherwise
LED labeled “POWER” for
Audio Module power status
indication, which lights up
green as soon as the Audio
Module is powered on
i
The touch screen utilizes a thin
exible sheet that may be damaged
by sharp objects or heavy treatment.
