Honda BF15D Owner's Manual

23
R Type (remote control)
CONTROLS AND FEATURES
LANYARD
SWITCH CLIP
SWITCH CLIP
LANYARD
EMERGENCY
STOP SWITCH
IGNITION
SWITCH
EMERGENCY STOP
SWITCH
OOFFFF
OONN
SSTTAARRTT
SWITCH CLIP

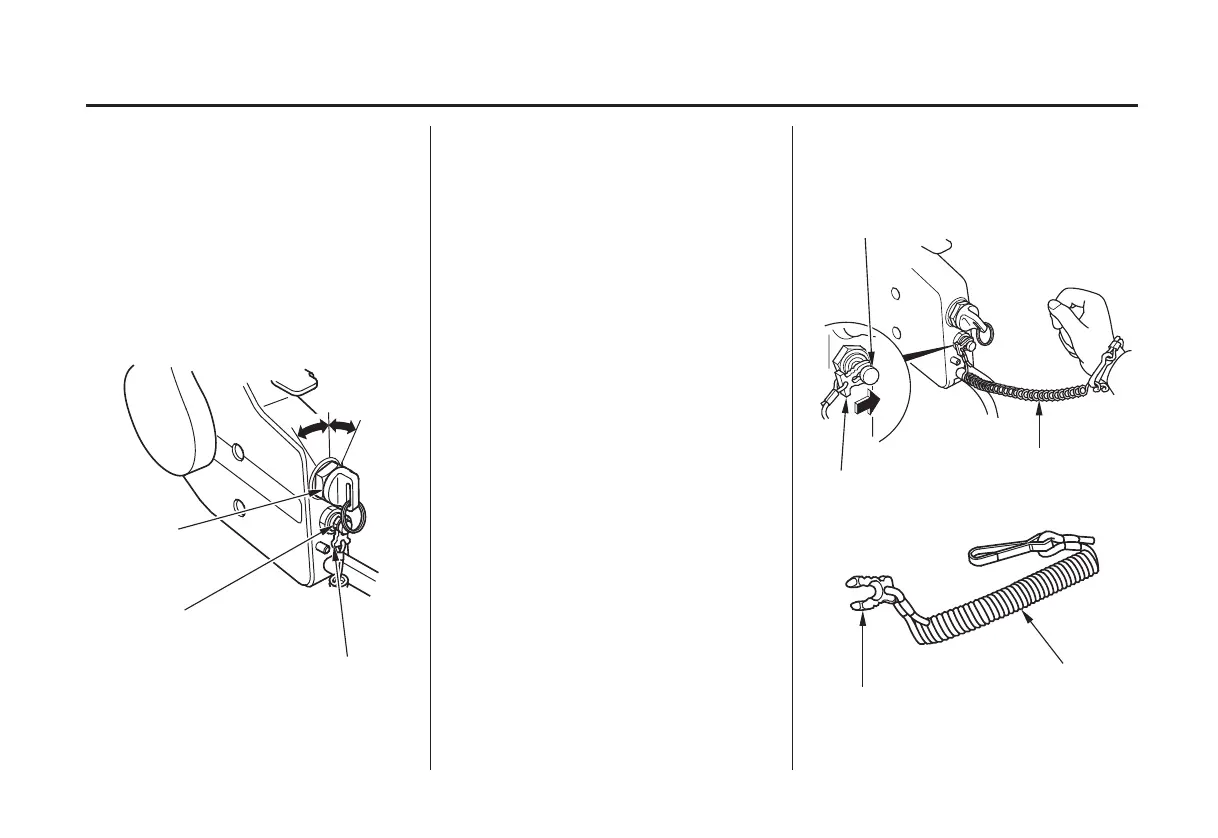

Switch Clip and Emergency Stop
Switch (side-mount type)
Ignition Switch (side-mount
type)
Turning the ignition switch key to the
START position operates the starter
motor. The key automatically returns
to the ON position when released
from the START position.
The ignition switch can be used to
start the engine only when the
gearshift lever (p. ) is in the N
(neutral) position, and the switch clip
is in the emergency stop switch.
Turning the ignition switch to the
OFF position stops the engine.
For panel mount or top mount remote
control information, refer to the
instructions provided with the remote
control equipment.
The ignition switch controls the
ignition system and starter motor.
20
04/03/15 10:25:21 31ZY0600_024

Honda BF15D Specifications

General

Displacement	350 cc (21.4 cubic inches)
HP Rating	15 HP
Fuel Delivery	1 Carburetor
Ignition System	Digital CDI
Cooling System	Water Cooled
Gear Ratio	2.08:1
Lubrication	Wet Sump
Gear Shift	F-N-R
Engine Type	4-stroke
Full Throttle RPM Range	5000 - 6000 rpm
Starting System	Manual
Exhaust	Through Propeller
Fuel Tank Capacity	External tank
Oil Capacity	1.1 L
Fuel	Unleaded Gasoline
Shaft Length	15 inches
