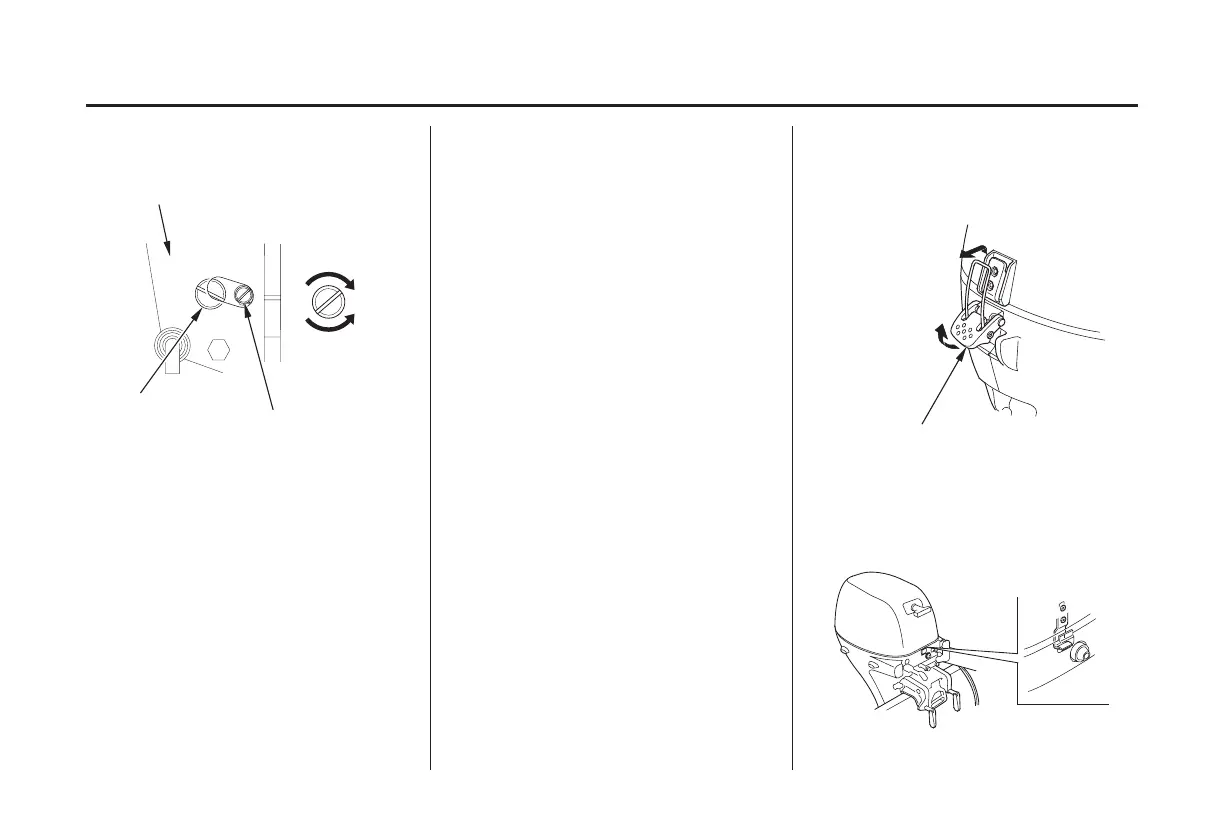

MANUAL RELIEF VALVE ENGINE COVER REMOVAL
AND INSTALLATION(T type)
SERVICING YOUR OUTBOARD MOTOR
(REAR)
(FRONT)
ENGINE COVER LATCH
MANUAL RELIEF VALVE
PPOOWWEERR
((VVaallvvee cclloosseedd
ttoo ffiixx))
MMAANNUUAALL
((VVaallvvee ooppeenn
ttoo rreelleeaassee))
RIGHT STERN BRACKET
Do not turn this screw. If this
screw is turned hydraulic oil
will bleed out of the power tilt
system. Should this happen it
will be necessary to contact your
closest authorized Honda
Marine dealer and have the
system refilled.
The outboard motor can be tilted
manually after opening the manual
relief valve. This feature enables the
outboard motor to be tilted when no
battery is connected.
For manual tilting, use a flat
screwdriver to turn the valve
counterclockwise 2 and a half turns.
Close the valve firmly after
positioning the outboard motor.
Be sure the valve is closed before
operating the outboard motor. If the
valve is not closed, the outboard
motor will tilt up when operated in
reverse.
:
04/03/15 10:33:38 31ZY0600_070

Honda BF15D Specifications

General

Displacement	350 cc (21.4 cubic inches)
HP Rating	15 HP
Fuel Delivery	1 Carburetor
Ignition System	Digital CDI
Cooling System	Water Cooled
Gear Ratio	2.08:1
Lubrication	Wet Sump
Gear Shift	F-N-R
Engine Type	4-stroke
Full Throttle RPM Range	5000 - 6000 rpm
Starting System	Manual
Exhaust	Through Propeller
Fuel Tank Capacity	External tank
Oil Capacity	1.1 L
Fuel	Unleaded Gasoline
Shaft Length	15 inches
