26
CONTROLS AND FEATURES
Power tilt is a convenience for
tilting the motor, shallow water
operation, and trailering only. It is
not designed to be used as a trim
function to adjust the trim angle of
the boat.
:

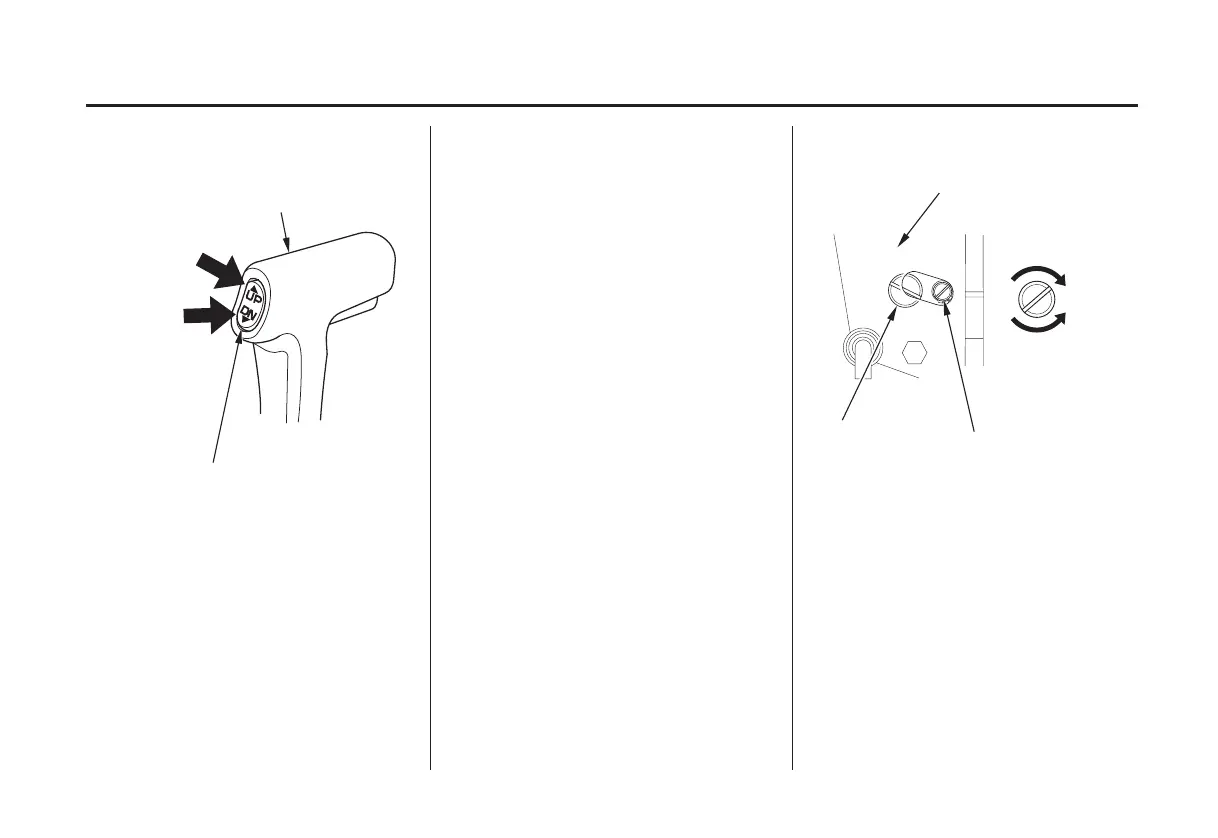

MANUAL RELIEF VALVE
POWER TILT SWITCH
CONTROL LEVER
Press UP to tilt
the motor up.
Press DN to tilt
the motor down.
MANUAL
(Valve closed
to fix)
POWER
(Valve open
to release)
RIGHT STERN BRACKET
(side-mount type)
Power Tilt Switch (T type) Manual Relief Valve (T type)
The outboard motor can be tilted
manually after opening the manual
relief valve. This allows the outboard
motor to be tilted when no battery is
connected.
Do not turn this screw. If this
screw is turned hydraulic oil
will bleed out of the power tilt
system. Should this happen it
will be necessary to consult your
authorized Honda Marine dealer
and have the system refilled.
The rocker type power tilt switch is
located on the control lever and has
UP and DN (down) positions for
changing the angle of the outboard
motor.
During shallow water operation,
beaching, launching, or mooring,
proceed at low speed with a small
throttle opening and tilt the motor up
as necessary (p. ).59
