Honda BF15D Owner's Manual

27
Common Controls
Engine Cover Latch
Transom Angle Adjusting Rod
CONTROLS AND FEATURES
LLOOCCKK
FFRREEEE
EENNGGIINNEE CCOOVVEERR LLAATTCCHH
TTIILLTT LLOOCCKK
LLEEVVEERR
ADJUSTING ROD
(manual tilt SH type/LH type)
Tilt Lock Lever
(G and T types)

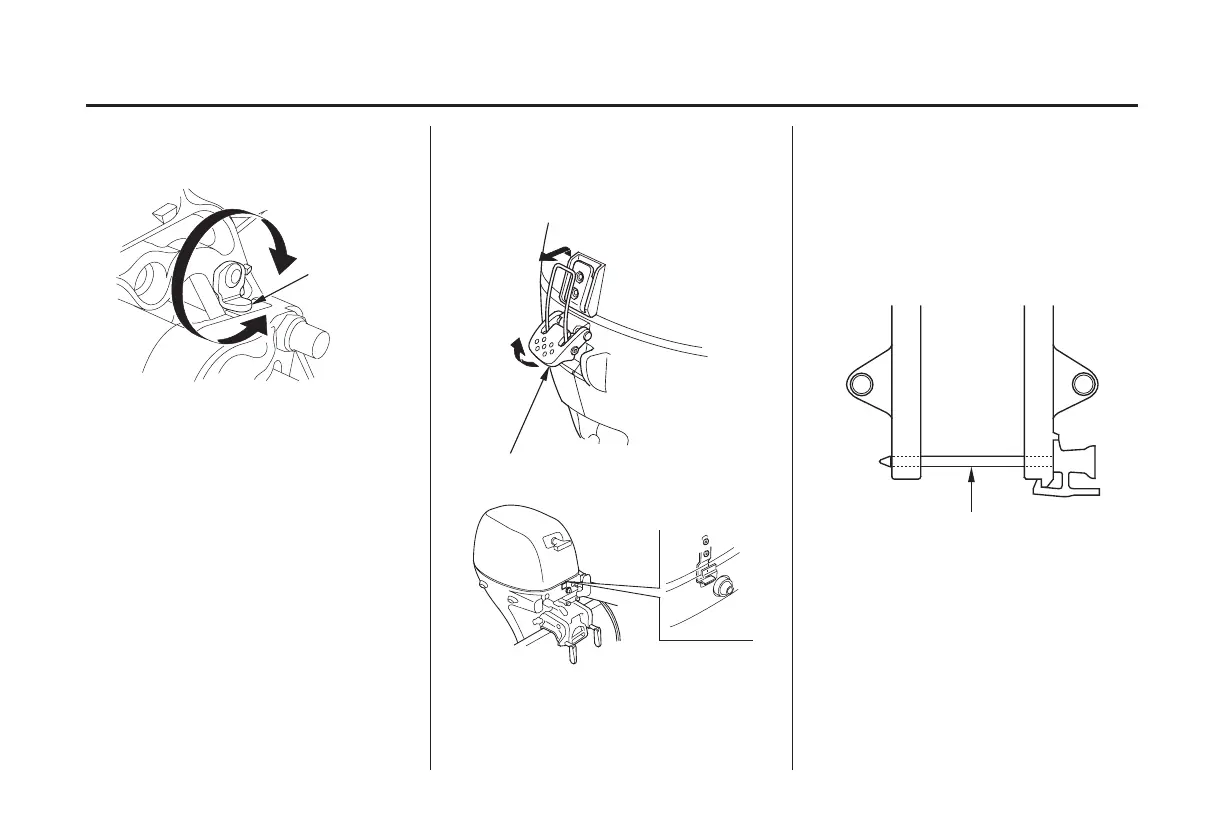

The tilt lock lever is used to support
the outboard motor in the fully-raised
position.
When the boat is to be moored for a
long time, tilt the outboard motor as
far as it will go. Then move the tilt
lock lever to the LOCK position, and
gently lower the outboard motor until
the lever contacts the stern bracket.
The engine cover latch fastens the
engine cover to the outboard motor.
The transom angle adjusting rod
limits the tilt angle of the outboard
motor when fully lowered.
04/03/15 10:26:05 31ZY0600_028

Honda BF15D Specifications

General

Displacement	350 cc (21.4 cubic inches)
HP Rating	15 HP
Fuel Delivery	1 Carburetor
Ignition System	Digital CDI
Cooling System	Water Cooled
Gear Ratio	2.08:1
Lubrication	Wet Sump
Gear Shift	F-N-R
Engine Type	4-stroke
Full Throttle RPM Range	5000 - 6000 rpm
Starting System	Manual
Exhaust	Through Propeller
Fuel Tank Capacity	External tank
Oil Capacity	1.1 L
Fuel	Unleaded Gasoline
Shaft Length	15 inches
