Honda BF15D User Manual

BF15D-BFZOD

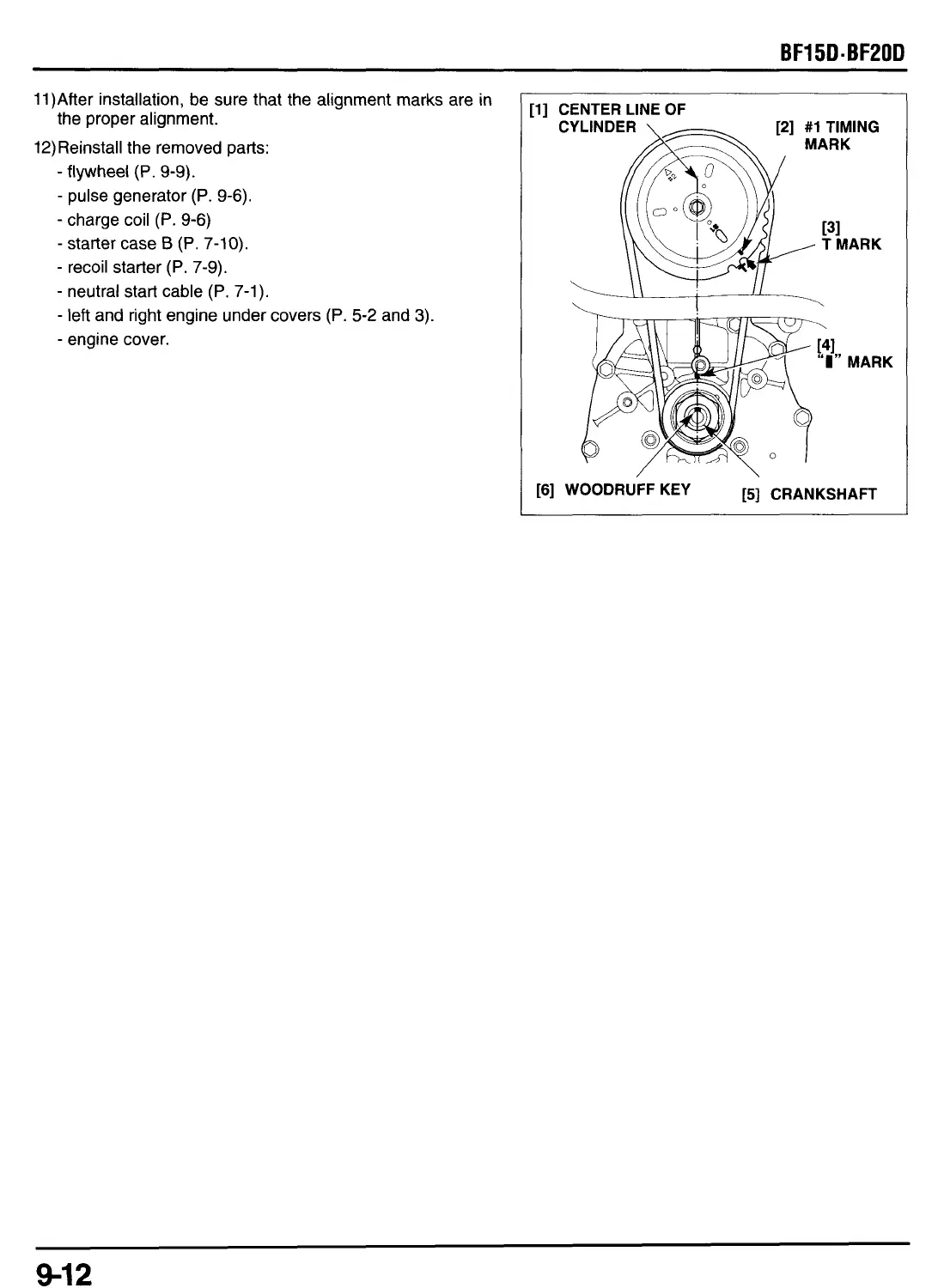

11)After installation, be sure that the alignment marks are in
the proper alignment.
12)Reinstall the removed parts:
- flywheel (P. 9-9).
- pulse generator (P. 9-6).
- charge coil (P. 9-6)
- starter case B (P. 7-10).
- recoil starter (P. 7-9).
- neutral start cable (P. 7-1).
- left and right engine under covers (P. 5-2 and 3).
- engine cover.
Ill CENTER LINE OF
[2] #1 TIMING
[6] WOODRUFF KEY [5] CRANKSHAFT
s12

Honda BF15D Specifications

General

Displacement	350 cc (21.4 cubic inches)
HP Rating	15 HP
Fuel Delivery	1 Carburetor
Ignition System	Digital CDI
Cooling System	Water Cooled
Gear Ratio	2.08:1
Lubrication	Wet Sump
Gear Shift	F-N-R
Engine Type	4-stroke
Full Throttle RPM Range	5000 - 6000 rpm
Starting System	Manual
Exhaust	Through Propeller
Fuel Tank Capacity	External tank
Oil Capacity	1.1 L
Fuel	Unleaded Gasoline
Shaft Length	15 inches
