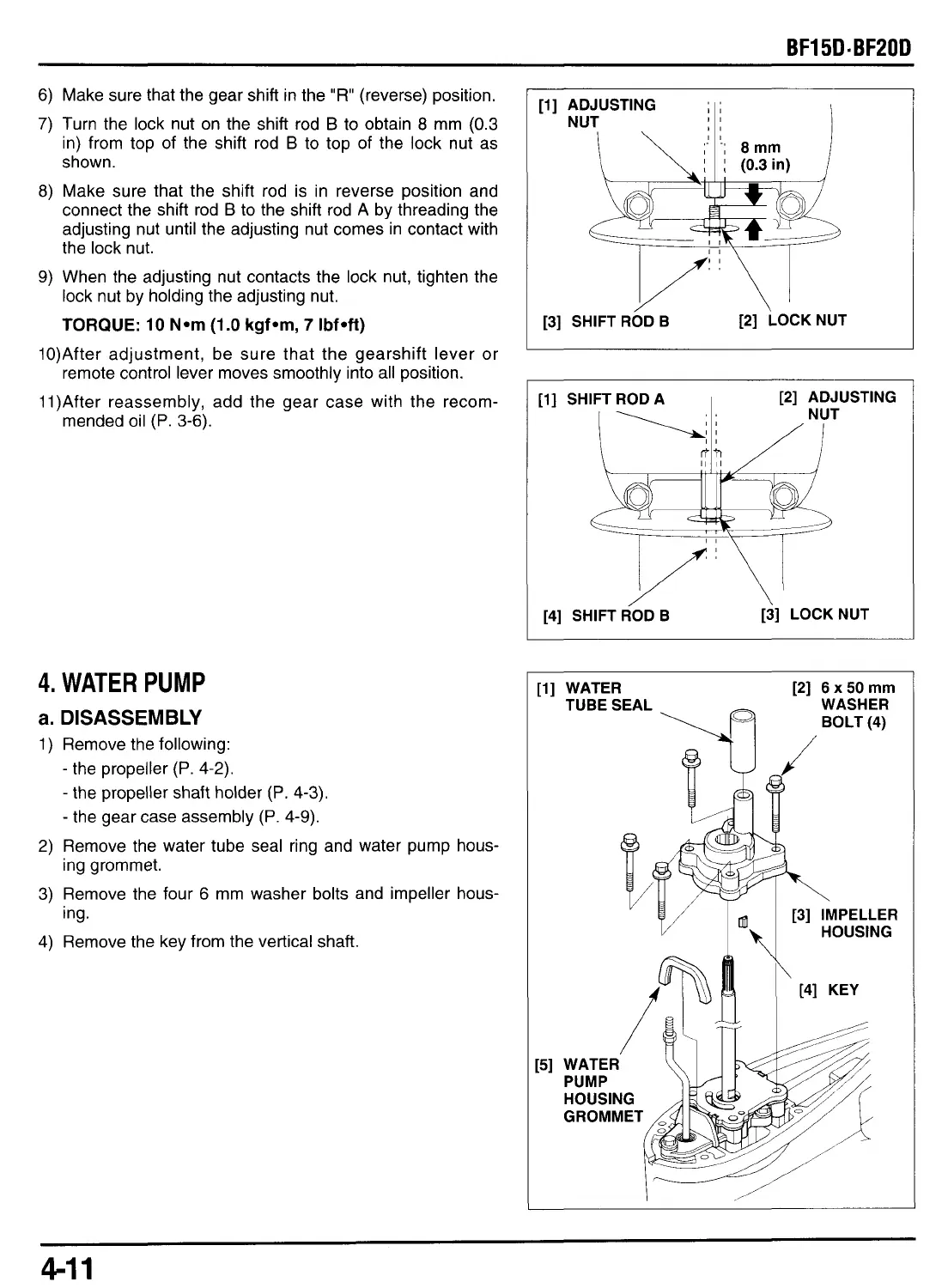

6) Make sure that the gear shift in the
"R"
(reverse) position.
7)
Turn the lock nut on the shift rod
B
to
obtain
8
mm
(0.3
in) from top of the shift rod
B
to
top of the lock nut as
shown.
8)
Make sure that the shift rod is in reverse position and
connect the shift rod
B
to
the shift rod
A
by threading the
adjusting nut until the adjusting nut comes in contact with
the lock nut.
9)
When the adjusting nut contacts the lock nut, tighten the
lock nut by holding the adjusting nut.
TORQUE:
10
N*m
(1.0
kgf*m,
7
Ibfoft)
1O)After adjustment, be sure that the gearshift lever or
remote control lever moves smoothly into all position.
11)After reassembly, add the gear case with the recom-
mended oil
(P.
3-6).
4.
WATER
PUMP
a.
DISASSEMBLY
1)
Remove the following:
-the propeller
(P.
4-2).
-the propeller shaft holder
(P.
4-3).
-
the gear case assembly
(P.
4-9).
ing grommet.
ing.
2) Remove the water tube seal ring and water pump hous-
3) Remove the four 6 mm washer bolts and impeller hous-
4) Remove the key from the vertical shaft.
I
[3] SHIFT
ROD
B
[2] LOCKNUT
[4] SHIFT
ROD
B
[3] LOCKNUT
[l] WATER [2] 6x50mm
TUBE SEAL WASHER
\
IMPELLER
H
0
US
IN
G
4-1
1
