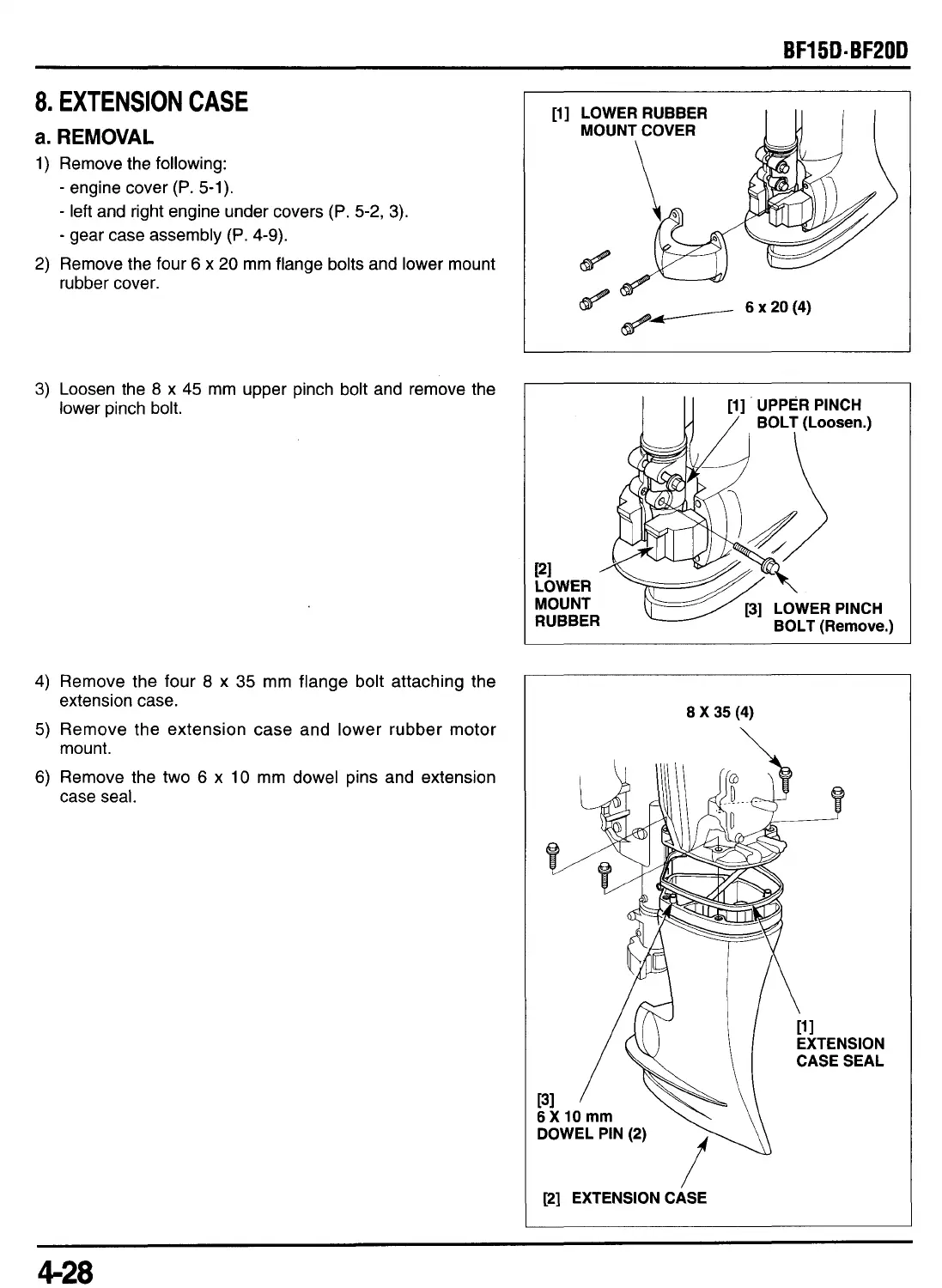

8. EXTENSION CASE
a. REMOVAL
1) Remove the following:
- engine cover (P. 5-1).
- left and right engine under covers (P. 5-2, 3).
- gear case assembly (P. 4-9).
rubber cover.
2) Remove the four 6 x 20 mm flange bolts and lower mount
3) Loosen the 8 x 45 mm upper pinch bolt and remove the
lower pinch bolt.
4) Remove the four 8 x 35 mm flange bolt attaching the
5) Remove the extension case and lower rubber motor
6) Remove the two
6 x 10 mm dowel pins and extension
extension case.
mount.
case seal.
LOWER RUBBER
MOUNT COVER
I 1 I I 111 UPPER PINCH
sen.)
PI
LOWER
MOUNT LOWER PINCH
RUBBER BOLT
(Remove.)
8 X 35 (4)
[2] EXTENSION CASE
428

Honda BF15D Specifications

General

Displacement	350 cc (21.4 cubic inches)
HP Rating	15 HP
Fuel Delivery	1 Carburetor
Ignition System	Digital CDI
Cooling System	Water Cooled
Gear Ratio	2.08:1
Lubrication	Wet Sump
Gear Shift	F-N-R
Engine Type	4-stroke
Full Throttle RPM Range	5000 - 6000 rpm
Starting System	Manual
Exhaust	Through Propeller
Fuel Tank Capacity	External tank
Oil Capacity	1.1 L
Fuel	Unleaded Gasoline
Shaft Length	15 inches
