When removing and installing the wheel, be
careful not to damage the wheel speed
sensor and pulser ring.
#
Front Wheel
Removal
1.
Place your motorcycle on a firm, level
surface.
2.
Cover right side of the front wheel and
brake caliper with protective tape or cloth.
3.
Loosen the front axle nut.
4.
Loosen the axle pinch bolt on both sides.
5.
Support your motorcycle securely and
raise the front wheel off the ground using
a maintenance stand or a hoist.
20171012170126_32K98B000_eng_BOOK Page 110 Thursday, October 12 2017 17:09:26 JST
Tyre Puncture u Removing Wheels
Troubleshooting
107
Continued

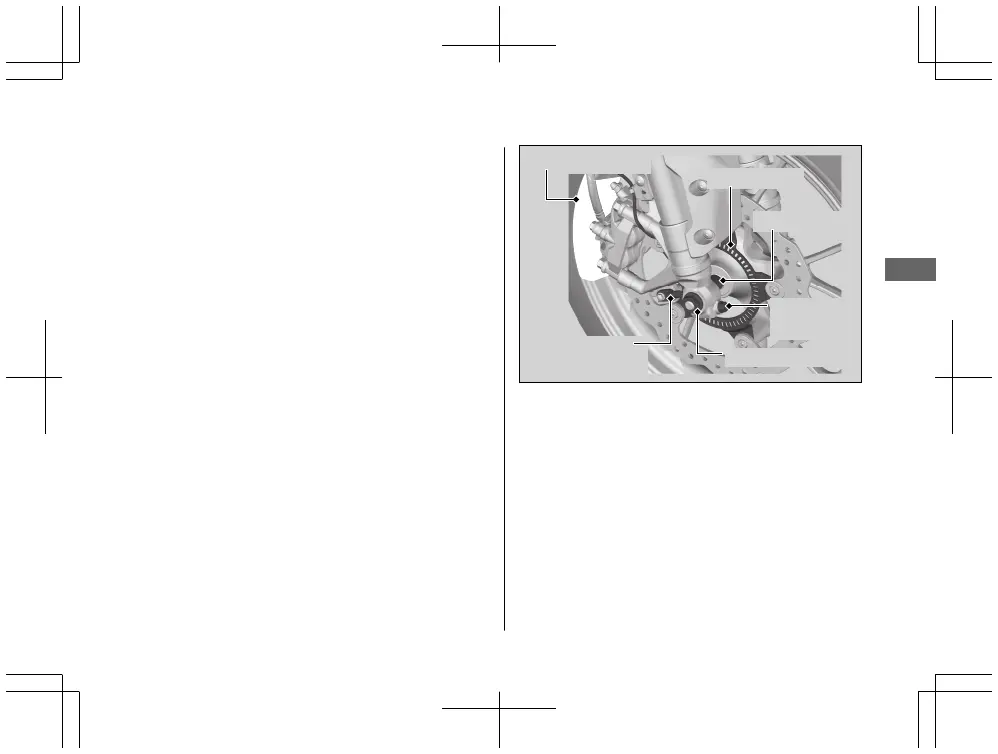

Front axle nut
Side collar
Wheel speed
sensor
Pulser ring
Axle pinch
bolt
Tape or cloth
To Next Page
