Adjusting the Drive Chain Slack
Adjusting the chain requires special tools.
Have the drive chain slack adjusted by your
dealer.
When adjusting the drive chain slack, be
careful not to damage the wheel speed
sensor and pulser ring.
1.
Shift the transmission to Neutral. Stop the
engine.
2.
Place your motorcycle on its side stand on
a firm, level surface.
3.
Loosen the rear axle nut.
4.
Loosen the lock nuts on both sides of the
swingarm.
20171012170126_32K98B000_eng_BOOK Page 94 Thursday, October 12 2017 17:09:26 JST
Drive Chain u Adjusting the Drive Chain Slack
Maintenance
91
Continued

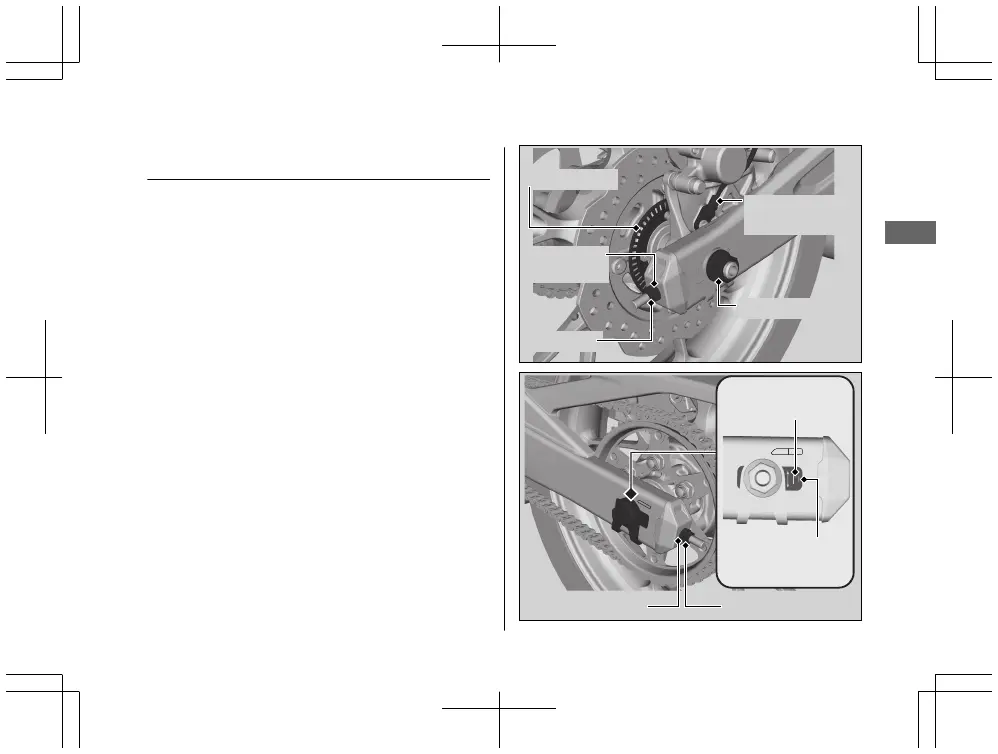

Rear axle nut
Lock nut
Adjusting
nut
Pulser ring
Wheel speed
sensor
Chain adjuster
index mark
Rear edge of
adjusting slot
Adjusting nut
Lock nut
To Next Page
