Blown Fuse
Before handling fuses, see “Inspecting and
Replacing Fuses.” 2 P. 60
#
Fuse Box Fuses
1.
Remove the fuel tank cover assembly.
2 P. 73
2.
Pull out the fuse box from the battery
case.
3.
Open the fuse box covers.
4.
Pull out the fuses one by one with the
fuse puller and check for a blown fuse.
Always replace a blown fuse with a spare
fuse of the same rating.
5.
Close the fuse box covers.
6.
Reinstall parts in the reverse order of
removal.
7.
Reinstall the fuel tank cover assembly.
2 P. 75
NOTICE
If a fuse fails repeatedly, you likely have an
electrical problem. Have your motorcycle
inspected by your dealer.
20171012170126_32K98B000_eng_BOOK Page 119 Thursday, October 12 2017 17:09:26 JST
Electrical Trouble u Blown Fuse
Troubleshooting
116

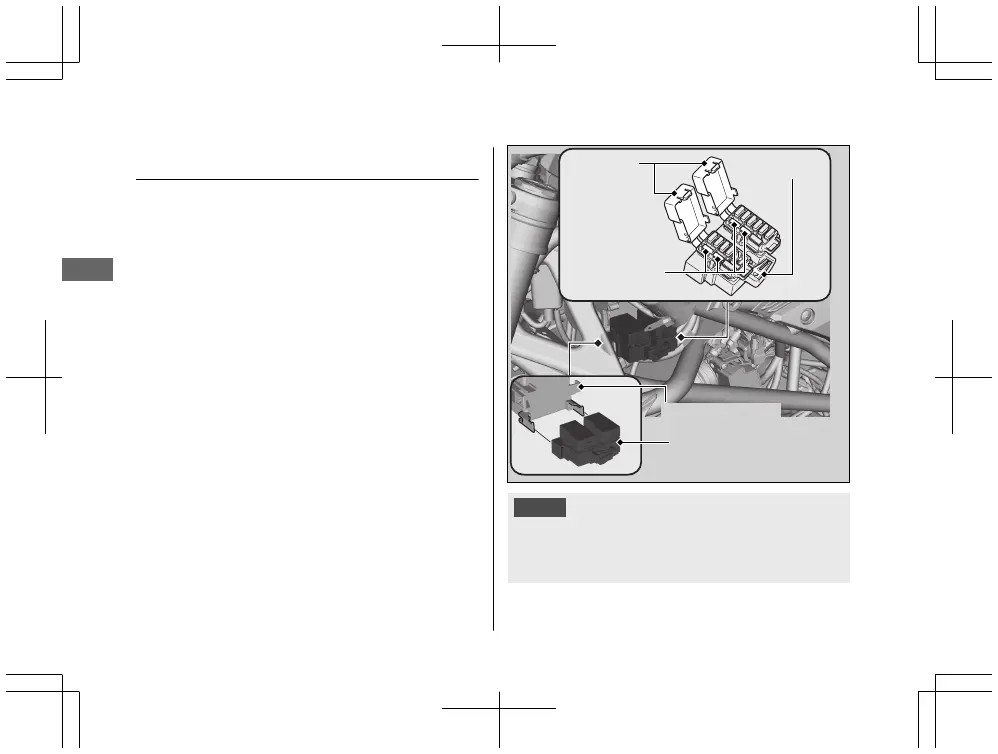

Fuse box
covers
Spare fuses
Fuse puller
Fuse box
Battery case
