Bulb Replacement
(Refer to the Safety Precautions on page 39.)
The light bulb becomes very hot while the light is ON,
and remains hot for a while after it is turned OFF. Be
sure to let it cool down before servicing.
The lighting equipment is not legal for highway use.
Do not operate this motorcycle on public streets,
roads or highways.

Be sure to turn the ignition switch OFF when
replacing the bulb.

Do not use bulbs other than those specified.

After installing a new bulb, check that the light
operates properly.

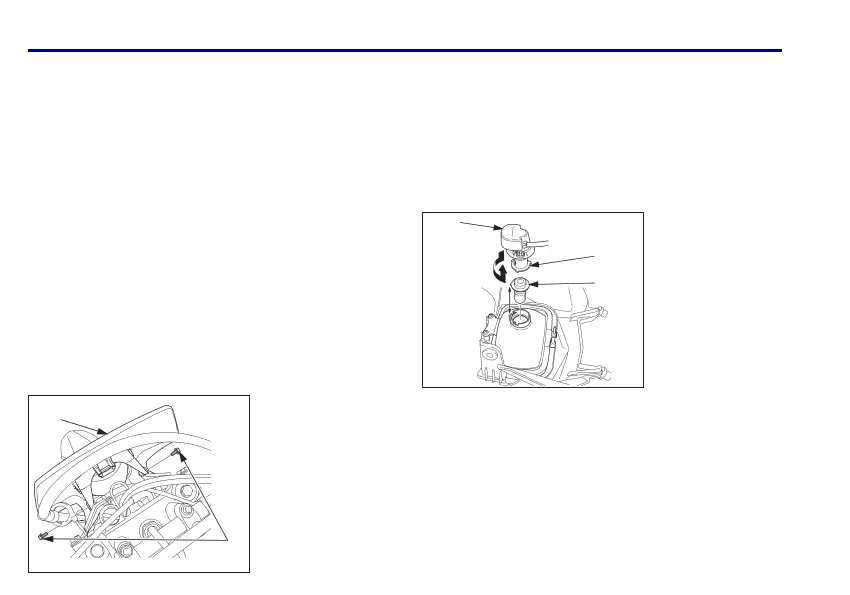

Headlight Bulb
1. Remove the bolts (1) and headlight (2).
2. Pull back the rubber dust cover (3).
3. Slightly press the socket (4) and turn it
counterclockwise. Remove the bulb (5).
4. Install a new bulb and parts in the reverse order
of removal.

When installing the bulb, align the tab on the
bulb with the groove in the headlight.
(1) Bolts
(2) Headlight
(1)
(2)
(4)
(4) Rubber dust
cover
(5) Socket
(6) Bulb
(5)
(3)

Honda CRF230F 2017 Specifications

General

Engine Type	223cc air-cooled single-cylinder four-stroke
Bore and Stroke	65.5mm x 66.2mm
Compression Ratio	9.0:1
Ignition	CDI
Rear Suspension	Pro-Link Showa single shock; 9.0 inches travel
Front Brake	Single 240mm disc
Rear Brake	Drum
Front Tire	80/100-21
Rear Tire	100/100-18
Curb Weight	249 pounds
Final Drive	Chain
Front Suspension	37mm leading-axle Showa fork
Trail	4.4 inches
Induction	Keihin 26mm piston-valve carburetor
