1. Pull back the rubber dust cover (2).
2. Loosen the lock nut (3) and turn the adjuster (4).
Tighten the lock nut and check the adjustment.
3. If the adjuster is threaded out near its limit or if
the correct free play cannot be obtained, loosen
the lock nut and turn in the clutch cable adjuster
completely. Tighten the lock nut and install the
rubber dust cover.
Clutch
Clutch adjustment may be required if the motorcycle
stalls when shifting into gear or tends to creep; or if
the clutch slips, causing acceleration to lag behind
engine speed.

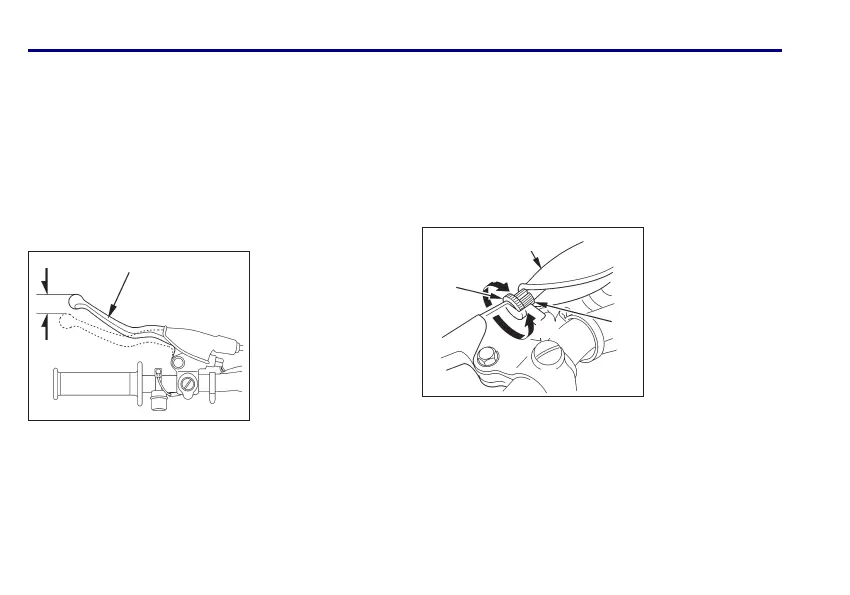

Minor adjustments can be made with the clutch cable
adjuster (4) at the clutch lever (1).
Normal clutch lever free play is:
10 – 20 mm (0.4 – 0.8 in)
(2) Dust cover
(3) Lock nut
(4) Clutch cable
adjuster
(A) Increase free
play
(B) Decrease free
play
(4)
(2)
(3)
(B)
(A)
(1) Clutch lever
(1)
4. Loosen the lock nut (5) at the lower end of the
cable. Turn the adjusting nut (6) to obtain the
specified free play. Tighten the lock nut and check
the adjustment.

Honda CRF230F 2017 Specifications

General

Engine Type	223cc air-cooled single-cylinder four-stroke
Bore and Stroke	65.5mm x 66.2mm
Compression Ratio	9.0:1
Ignition	CDI
Rear Suspension	Pro-Link Showa single shock; 9.0 inches travel
Front Brake	Single 240mm disc
Rear Brake	Drum
Front Tire	80/100-21
Rear Tire	100/100-18
Curb Weight	249 pounds
Final Drive	Chain
Front Suspension	37mm leading-axle Showa fork
Trail	4.4 inches
Induction	Keihin 26mm piston-valve carburetor
