85
ASSEMBLY

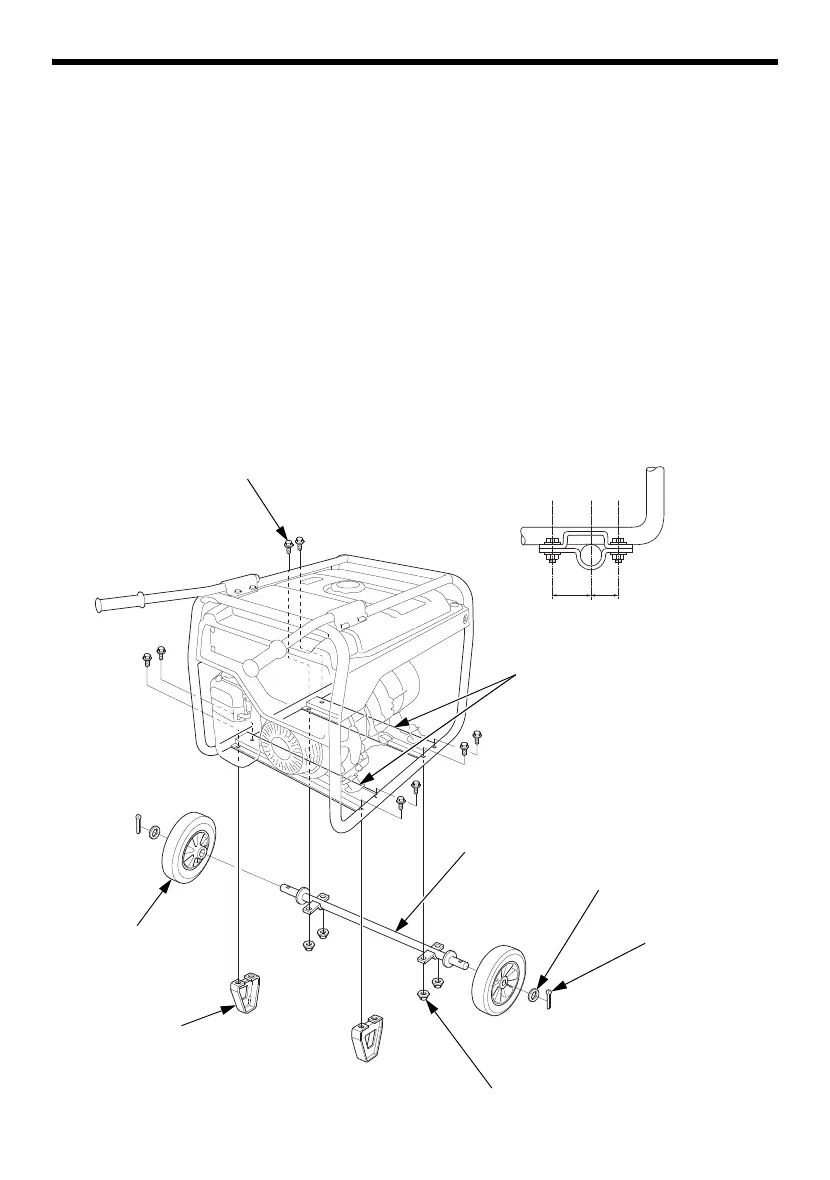

WHEEL KIT INSTALLATION (Optional Parts)
1. Install the two stands on the under frame using four 8×16 mm
flange bolts.
2. Install the two wheels on the axle shaft using the plain washers and
split pins. After installing the split pins, bend the pins to ensure that
the wheels are secured to the axle.
3. Install the axle assembly on the generator using four 8×16 mm
flange bolts and 8 mm flange nuts.
TORQUE: 17–22 lbf·ft (24–29 N·m, 2.4–3.0 kgf·m)
LONGER
UNDER FLAME
GENERATOR
SIDE
AXLE SHAFT
20 mm
PLAIN WASHER (2)
4×28 mm
SPLIT PIN (2)
8 mm FLANGE NUT (4)
STAND (2)
WHEEL (2)
8×16 mm FLANGE BOLT (8)
