OPERATION
AC PARALLEL OPERATION (optional equipment)
Both types of EU22i generator can be connected to each other to
increase the available power using a receptacle box.
Before connecting an appliance to either generator, make sure that it
is in good working order and that its electrical rating does not exceed
that of the receptacle.
Most motorized appliances require more than their electrical rating for
startup. When an electric motor is started, the overload indicator (red)
may come ON. This is normal if the overload indicator (red) goes OFF
within 4 seconds. If the overload indicator (red) stays ON, consult your
generator dealer.
During parallel operation, the Eco Throttle switch should be in the
same position on both generators.

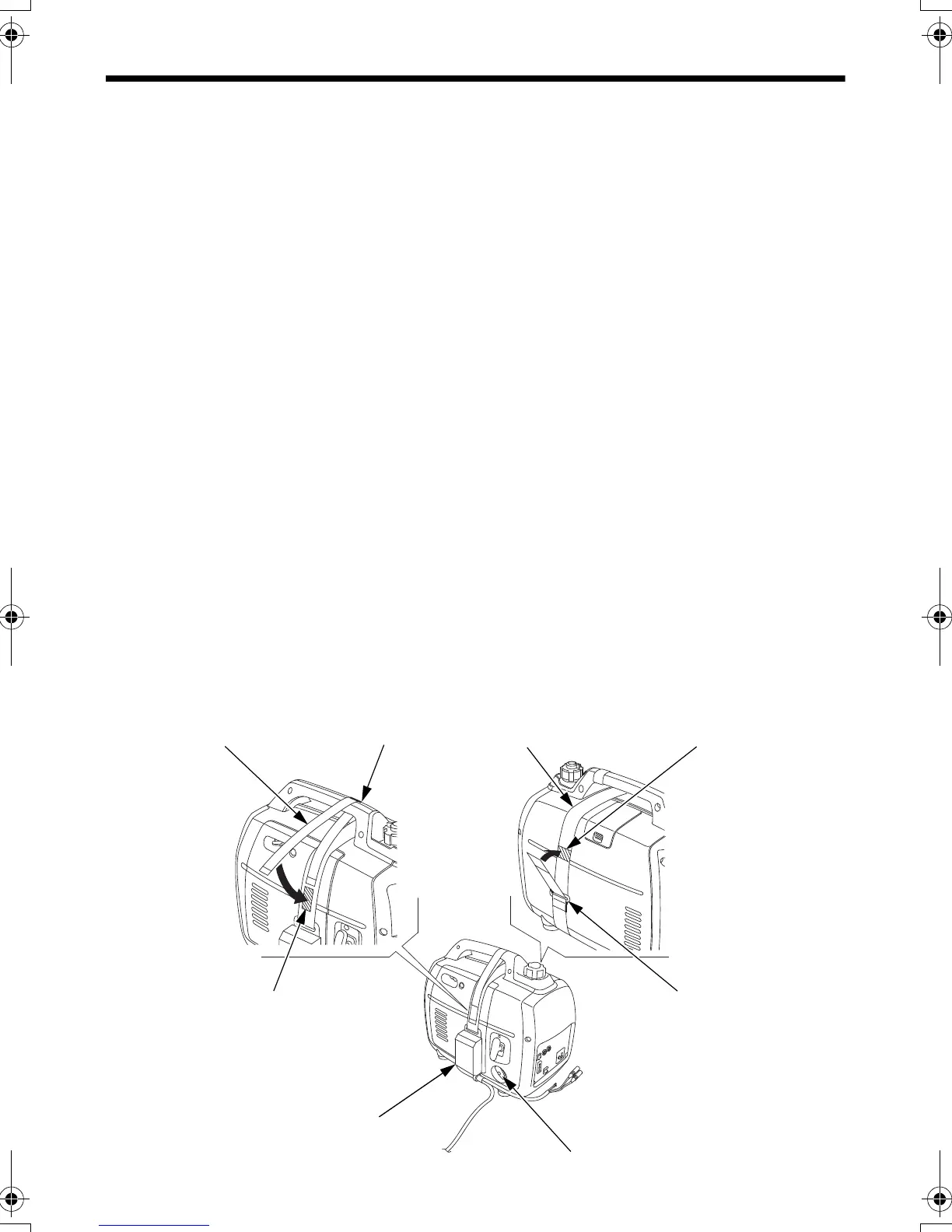

1. Install the receptacle box for parallel operation on to the one
generator and secure it with setting band as shown.
• Set the belt on the front side of the handle.
• Secure the narrow belt to the handle with the velcro fastening.
• Pass the upper wide belt through the lower belt hook and secure
with the velcro fastening.
• Route the receptacle box wires under the engine switch.
• Install the belts so they are not slack.
VELCRO FASTENING
ENGINE SWITCH
RECEPTACLE BOX FOR
PARALLEL OPERATION
(optional equipment)
NARROW BELT
HANDLE
WIDE BELT
VELCRO FASTENING
LOWER BELT HOOK
32Z446000.book Page 31 Friday, February 2, 2018 3:46 PM

Honda EU22i Specifications

General

Castor wheels	No
Product color	Black, Red
Oil tank capacity	0.44 L
Fuel type	Gasoline
Noise level	53 dB
Rated power	- W
Rated voltage	220 V
Ignition system	-
Rated frequency	50 Hz
Fuel consumption	- l/h
Rated DC voltage	12 V
Fuel tank capacity	3.6 L
Engine displacement	121 cm³
Output power capacity	1.8 kVA
Output power capacity (max)	2.2 kVA

Weight and Dimensions

Depth	290 mm
Width	509 mm
Height	425 mm
Weight	21100 g
