13-8
TRANSMISSION/DRIVE BELT HRN216
2. DISASSEMBLY/REASSEMBLY

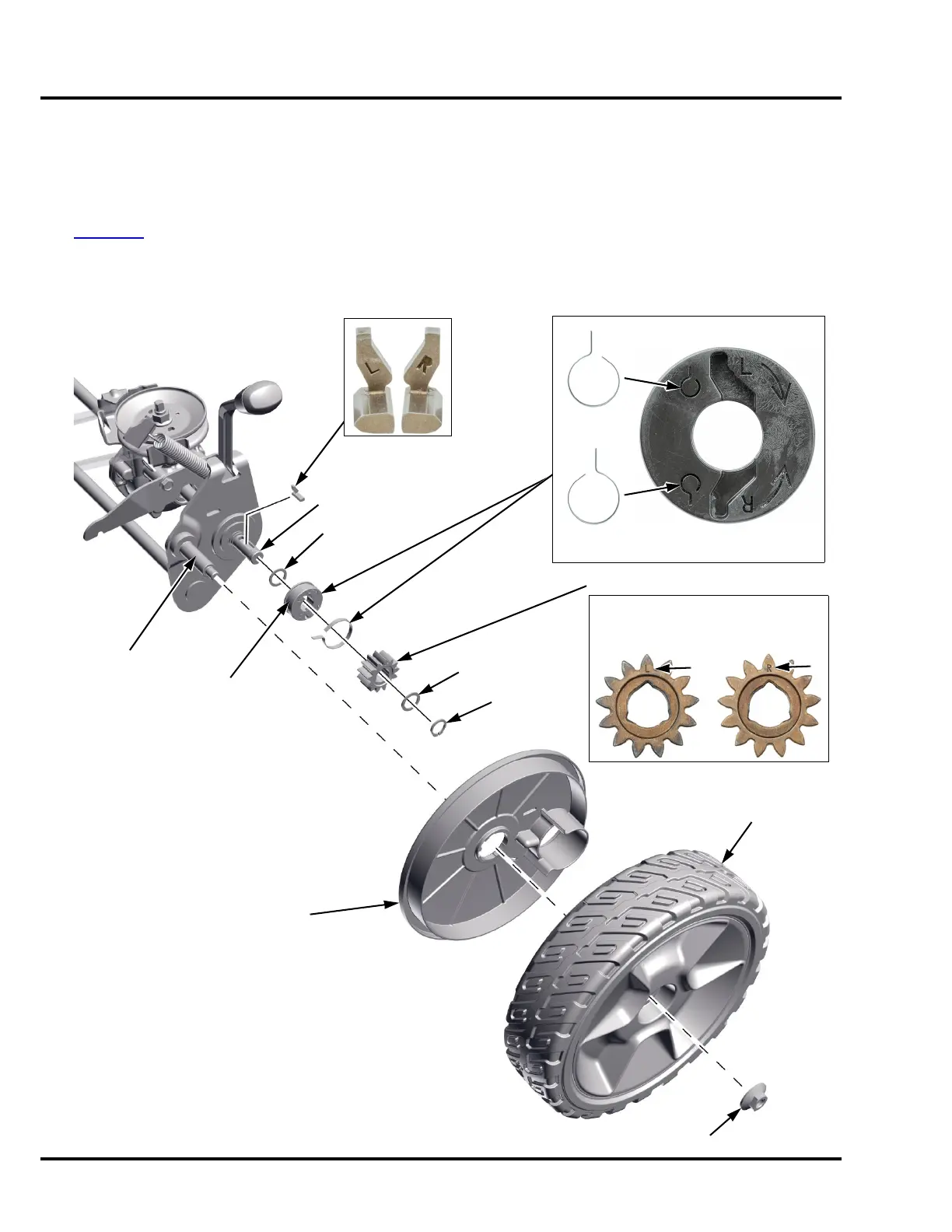

PINION GEAR
DISASSEMBLY
See page 3-17
for complete reassembly instructions.
The ratchet key is unique for each side. The ratchet holder, pinion, and spring must be installed in the appropriate
direction for the left and right wheel pinion assemblies.
WASHER
FLANGE NUT
WASHER
AXLE
REAR
WHEEL
PINION GEAR (13 TOOTH)
CIRCLIP
RATCHET KEY
LEFT WHEEL
RIGHT WHEEL
COVER
RATCHET HOLDER / SPRING
LEFT
WHEEL
RIGHT
WHEEL
The “L” should face out for the left
side and “R” for the right side.
