4-2
BLADE HOLDER/ROTO-STOP® HRN216

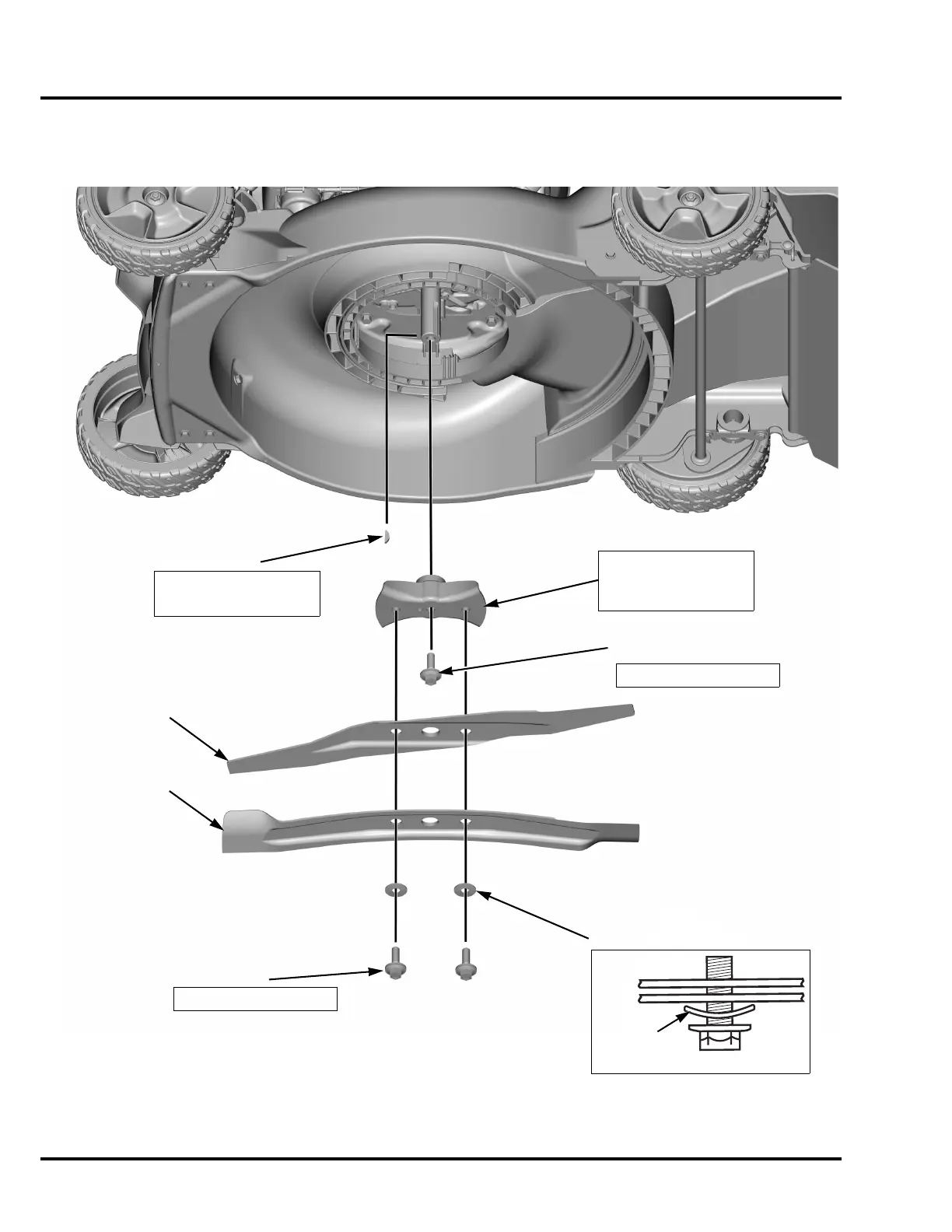

1. BLADE HOLDER/DRIVE PULLEY
PKA TYPE
BLADE HOLDER
3/8-24 x 1 in
SPECIAL BOLT
10 x 25 mm
SPECIAL BOLT
LOWER BLADE
UPPER BLADE
SPECIAL WASHER
Install the
washer in the
direction shown.
TORQUE: 54 N•m (40 ft-lb)
Align the slot in the
blade holder with the
Woodruff key in the
crankshaft.
WOODRUFF KEY
Install the Woodruff key into
the slot closest to the end of
the crankshaft.
TORQUE: 54 N•m (40 ft-lb)
