10-11
HRN216 CAMSHAFT/CRANKSHAFT/ PISTON/CYLINDER
8. Remove the flywheel (P. 9 -8 ).
PKA/VKA/VLA types only:
Pull the flywheel brake lever and secure the lever to the
handlebar with a strap or equivalent material. This allows
the flywheel and crankshaft to turn.

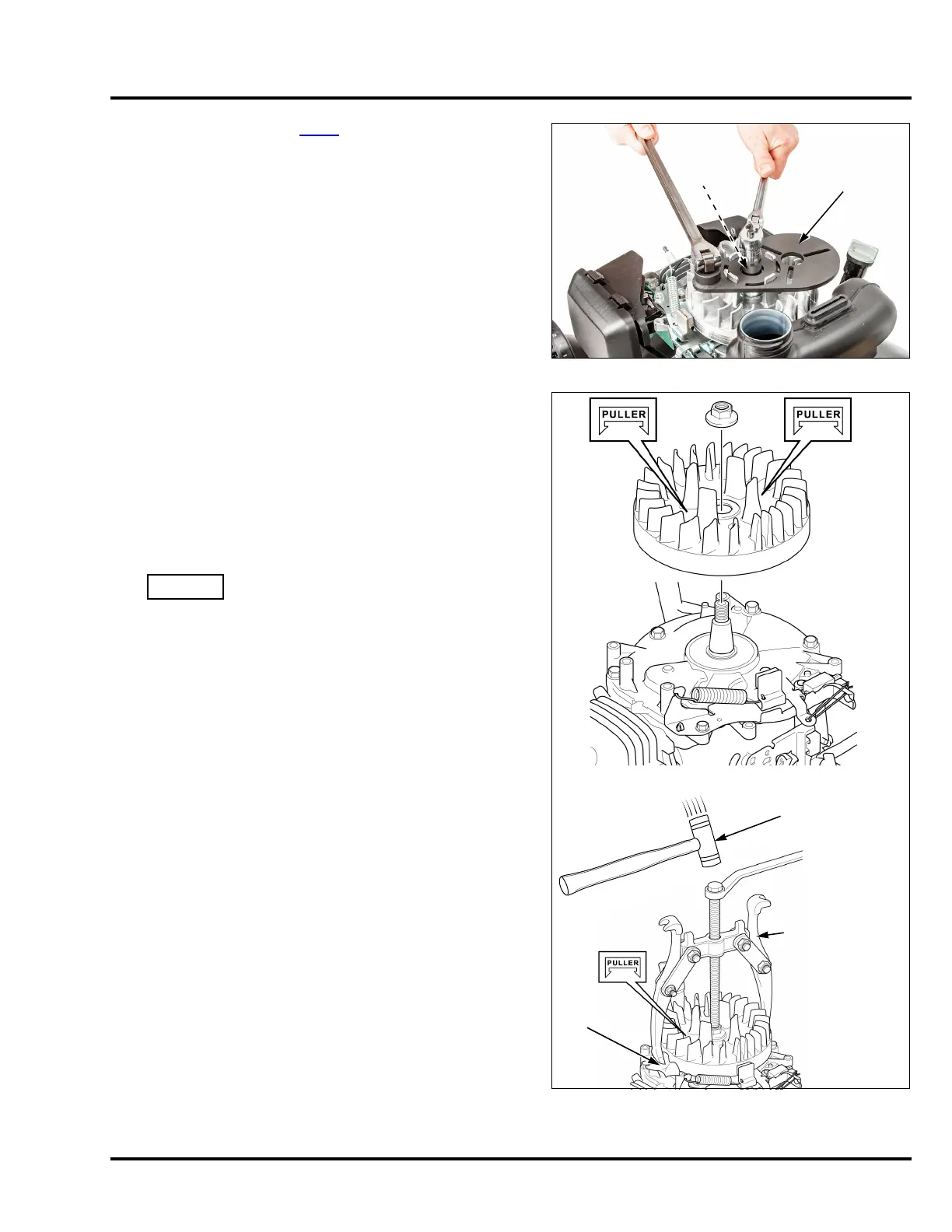

Holding the flywheel with the flywheel holder special tool
or a commercially available strap wrench, remove the
14 mm special nut.
TOOLS:
FLYWHEEL HOLDER 07APB-Z28A101
Note: Ignition coil removal my be required when using a
strap wrench and/or puller.
Position a commercially available 2-jaw flywheel puller on
the flywheel with one of the puller jaws under the magnets
(at the PULLER marks).
Set a shop towel or equivalent cloth between the flywheel
and puller.
Tighten the flywheel puller until snug and then tap the end
of the puller with a heavy brass hammer to release the
flywheel.
Do not use an impact wrench when removing the
flywheel. The flywheel may be likely to break if too much
force is applied.
SPECIAL
NUT,
14 mm
FLYWHEEL
HOLDER
SHOP TOWEL
FLYWHEEL
PULLER, OTC-1035
(commercially
available)
BRASS HAMMER
To Next Page
