12-17
HRN216 VARIABLE MOWING SYSTEM/ MOWER DECK/WHEELS

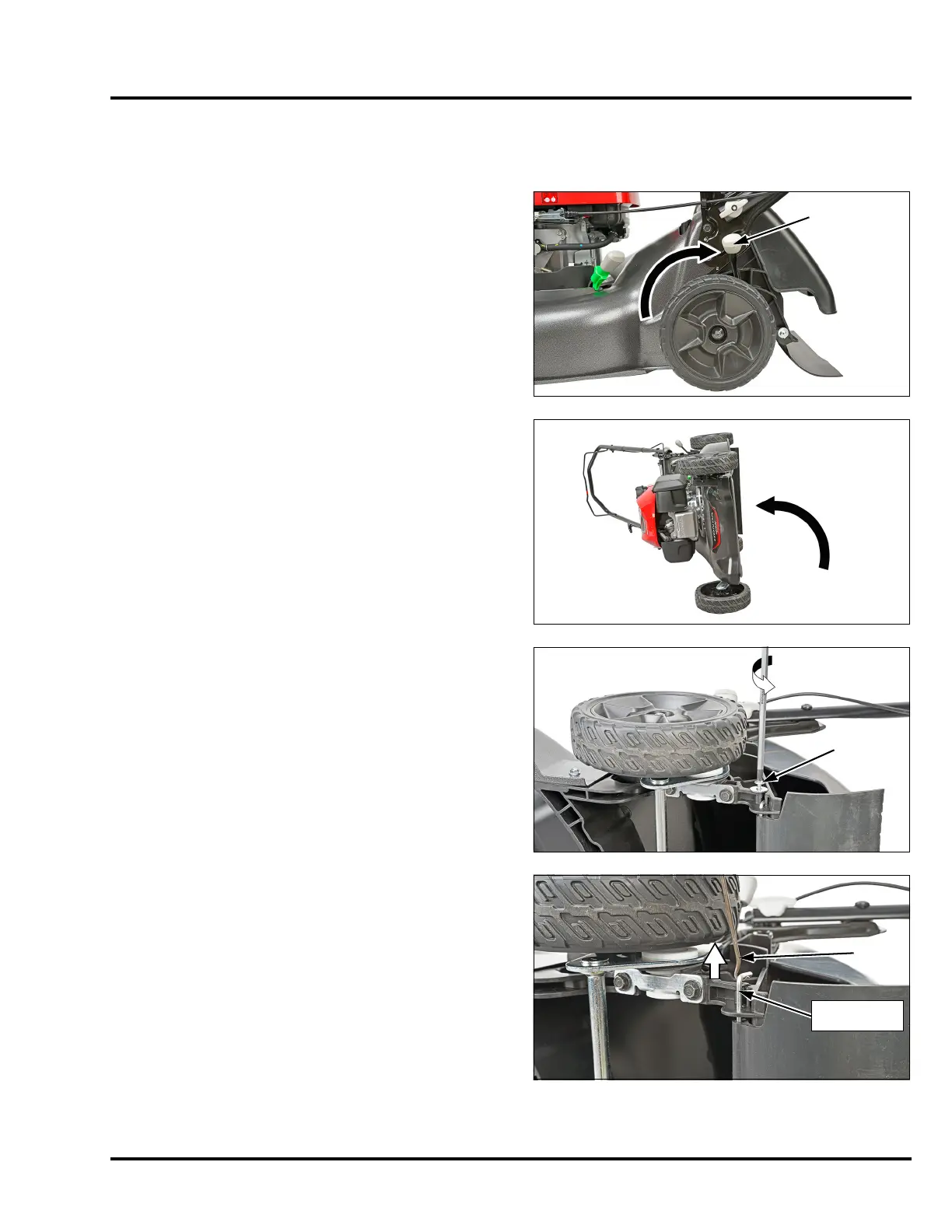

5. REAR SHIELD
REMOVAL
1. Move the rear wheel height adjuster to the lowest deck
height (position #1).
2. Tip the mower on the right-hand side so that the air
cleaner is facing up.
3. Remove the Phillips-head screw and plain washer from
the rear housing.
4. Use a pick tool to pull the rear shield shaft out of the
slot in the rear housing.
5. Pull the shaft completely out of the rear housing and
rear shield.
PICK
TOOL
REAR SHIELD
SHAFT
To Next Page
