Honda TRX500FE User Manual
4
of 1
of 1 rating
264 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
(1)
(2)
(1)

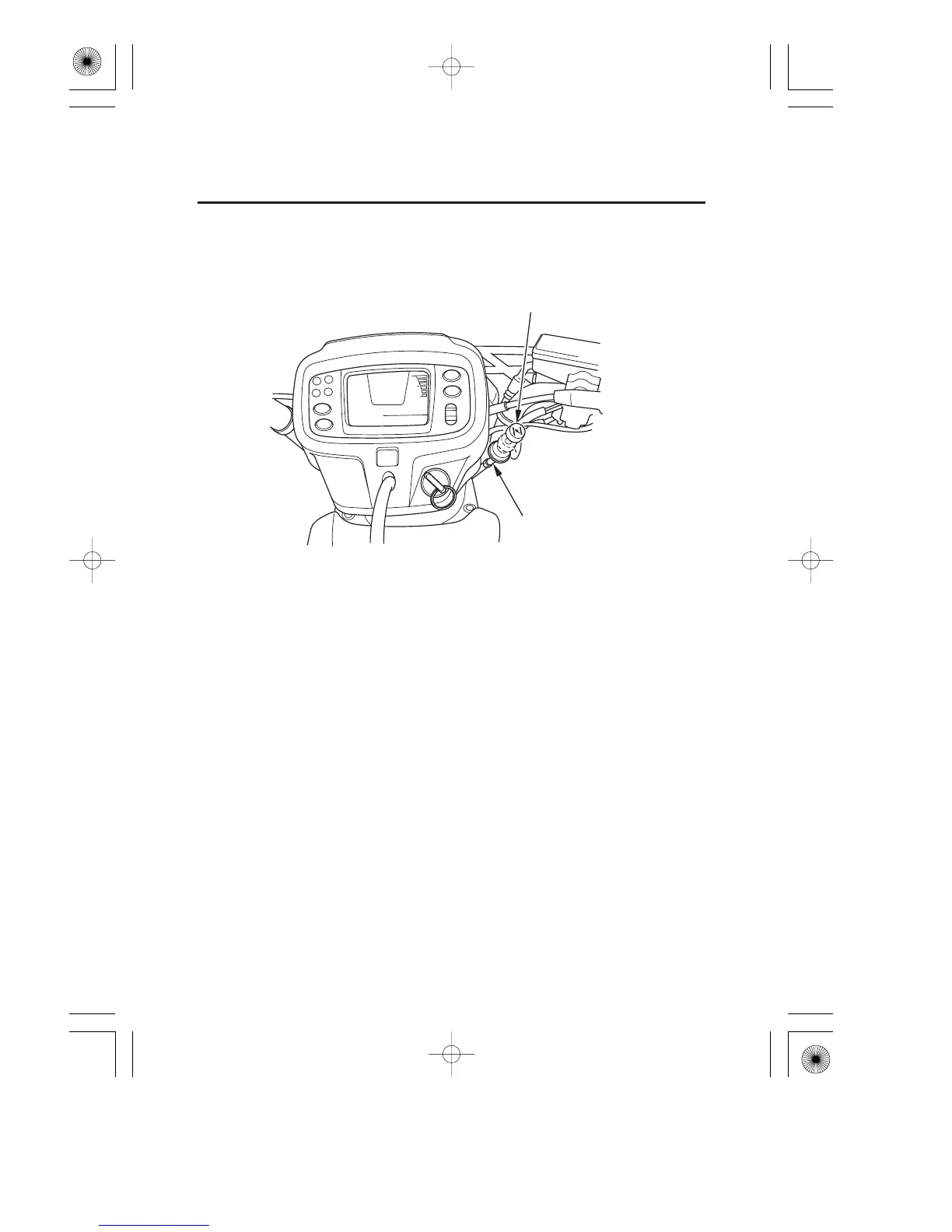

choke
c
able
CENTER
OF
HANDLEBAR
(2)
choke
k
nob
135
Carbur
etor
Choke
C
able
&
Knob
Servic
ing
Your
Honda
Saf
ety
Precautions
Ref
er
to
on
pag
e
.
Check
the
condition
of
the
choke
cable
(
).
Check
the
operation
of
the
choke
knob
(
).
If
the
cable
i
s
damaged
or
kinked,
have
it
repl
aced
by
your
Honda
dealer.
1.
2.
1
99
2
１０／０２／１２ １５：０９：１９ ３１ＨＰ０９７０ ０１４４
142
144
Table of Contents
Table of Contents
7
A few Words about Safety
4
ATV Safety
9
Important Safety Information
10
Safety Labels
13
Instruments & Controls
17
Operation Component Locations
19
Indicators & Displays
22
Multi-Function Display
26
Gear Position Indicator
27
Oil Change Indicator
28
Odometer/Tripmeter
29
Hourmeter
31
Digital Clock
32
Fuel Gauge
34
Controls & Features
35
Fuel Valve
35
Choke Knob
36
Ignition Switch
37
2WD/4WD Select Switch
38
Start Button
39
Engine Stop Switch
39
Headlight Switch
40
Headlight Dimmer Switch
40
Starting Primer Knob
41
Recoil Starter
41
Throttle Lever
42
Gearshift Switch
43
Reverse Selector Knob
44
Front Brake Lever
45
Rear Brake Lever
45
Rear Brake Pedal
45
Parking Brake
46
Flag Pole Bracket
47
Trailer Hitch
48
Accessory Socket
49
Utility Box
51
Storage Compartment
52
PS (Electric Power Steering)
53
Before Riding
55
Are You Ready to Ride
56
Protective Apparel
56
Rider Training
58
Age Recommendation
59
No Passengers
59
No Alcohol or Drugs
60
Is Your ATV Ready to Ride
61
Pre-Ride Inspection
61
Load Limits & Guidelines
64
Loading
64
Load Limits
65
Loading Guidelines
66
Accessories & Modifications
67
Accessories
67
Modifications
68
Basic Operation & Riding
69
Safe Riding Precautions
71
Off-Road Use Only
71
Keep Hands and Feet on Controls
72
Control Speed
73
Use Care on Unfamiliar or Rough Terrain
74
Do Not Perform Stunts
75
Starting & Stopping the Engine
76
Preparation
76
Starting Procedure
77
Flooded Engine
79
Stalled Engine
79
How to Stop the Engine
80
Using the Recoil Starter
81
Shifting Gears
82
Riding in Reverse
85
Braking
87
Riding Your ATV
89
Making Turns
89
Skidding or Sliding
91
Riding up Hills
92
Riding down Hills
96
Crossing or Turning on Hills or Slopes
97
Riding over Obstacles
99
Riding through Water
100
Parking
101
Servicing Your Honda
103
The Importance of Maintenance
105
Maintenance Safety
106
Important Safety Precautions
107
Maintenance Schedule
108
Maintenance Record
112
Maintenance Component Locations
113
Tool Kit
116
Owner's Manual Storage
117
Seat Removal
118
Fuel
119
Engine Oil & Filter
122
Gear Case Oil
131
Differential Oil
133
Air Cleaner
135
Throttle
141
Carburetor Choke Cable & Knob
143
Clutch System
144
Reverse Lock System
145
Engine Idle Speed
146
Spark Plug
147
Valves
150
Spark Arrester
151
Brakes
153
Tires
165
Tire Repair
170
Guards
172
Drivetrain Boots
173
Battery
174
Appearance Care
179
Tips
183
Preparing for a Ride
184
What to Take to the Riding Area
184
What to Take on the Trail
185
Transporting Your Honda
186
Storing Your Honda
188
Preparation for Storage
189
Removal from Storage
191
You & the Environment
192
Taking Care of the Unexpected
193
General Guidelines
194
If Your Engine Quits or Won't Start
196
If the Shift Switches Do Not Function
199
Emergency Gear Selection & Operation
200
If You Have a Flat Tire
202
If the High Oil Temperature Indicator Lights
206
If a Fuse Blows
207
If You Crash
211
If You Lose Your Key
212
If the Battery Is Low (or Dead)
213
If a Component Fails
214
Technical Information
215
Vehicle Identification
216
Specifications
218
Break-In Guidelines
222
High Altitude Carburetor Adjustment
223
Emission Control Systems
224
Catalytic Converter
228
Oxygenated Fuels
229
Consumer Information
231
Service Manuals
232
Authorized Manuals
232
Warranty Coverage
235
Warranty Service
236
Contacting Honda
237
Your Honda Dealer
238
The Honda Rider's Club (Usa Only)
239
Index
240
Quick Reference
