(1) fuel valve
27
Fuel Valve
Controls & Features
Instruments & Controls
The manual fuel valve ( ) is located on the left side of the fuel tank
cover.
For complete information about fueling your ATV, see page .
Remember to check that the fuel valve is in the ON position each time
you refuel. If the fuel valve is left in the RES position, you may run out
of fuel with no reserve.
Reserve Fuel
RES for extra fuel to get to a gas supply for refueling.
OFF for parking, storing, or transportation.
ON normal position for riding.

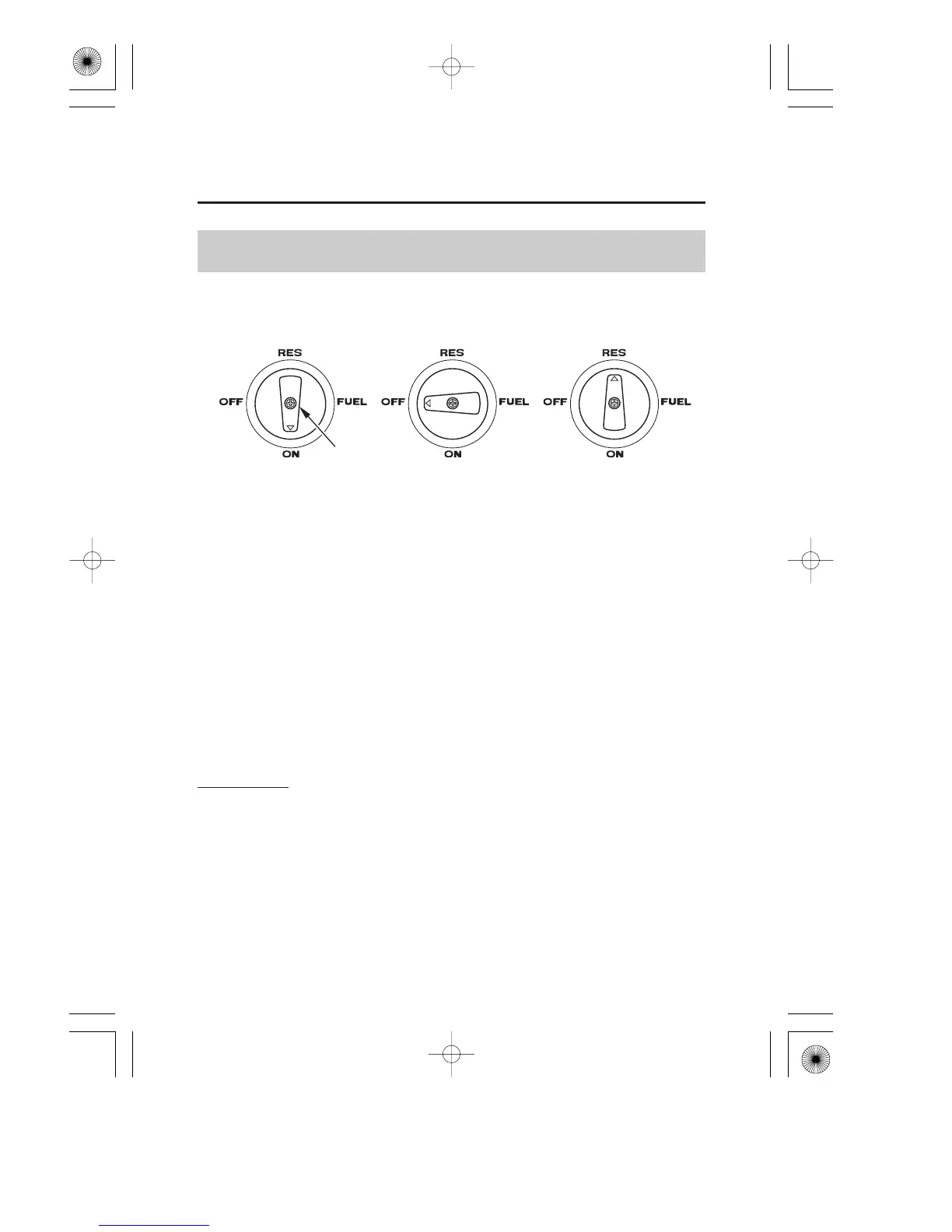

The three-way fuel valve is used to control the flow of fuel from the
fuel tank to the carburetor.
