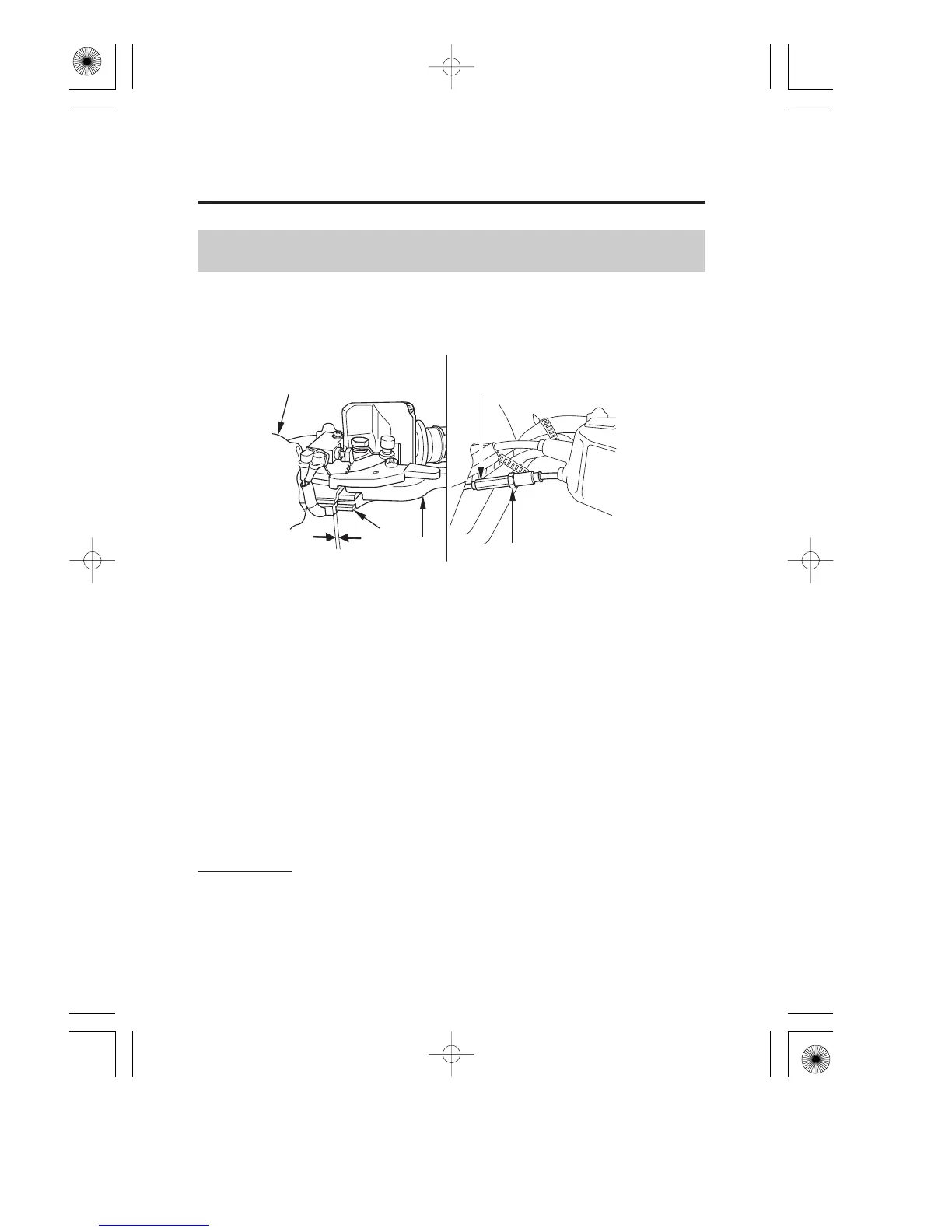

Honda TRX500FE - Reverse Lock System; Reverse Lock System Adjustment

−−
−
−
1/16 3/16 in
(2 4 mm)
1/16 3/16 in (2 4 mm)
LEFT HANDLEBAR
(4) lock nut
(5) adjusting nut
(1)
(3)
(1) dust cover
(2) reverse assist lever
(3) rear brake lever
(5)
(2)
(4)
137
Reverse Lock System Adjustment
Servicing Your Honda
Reverse Lock System
Saf ety Precautions
Other Checks
Check the reverse assist lever and cable for loose connections or other
damage. If the cable is worn or kinked, have it replaced by your Honda
dealer.
Refer to on page .
Check the reverse assist lever ( ) freeplay, measured at the rear brake
lever ( ) end near the cable:
To adjust, loosen the lock nut ( ) and turn the adjusting nut ( ).
After adjustment, tighten the lock nut securely.
Return the dust cover.
Pull back the dust cover ( ).1.
2.
3.
4.
4
1
2
3
5
99
