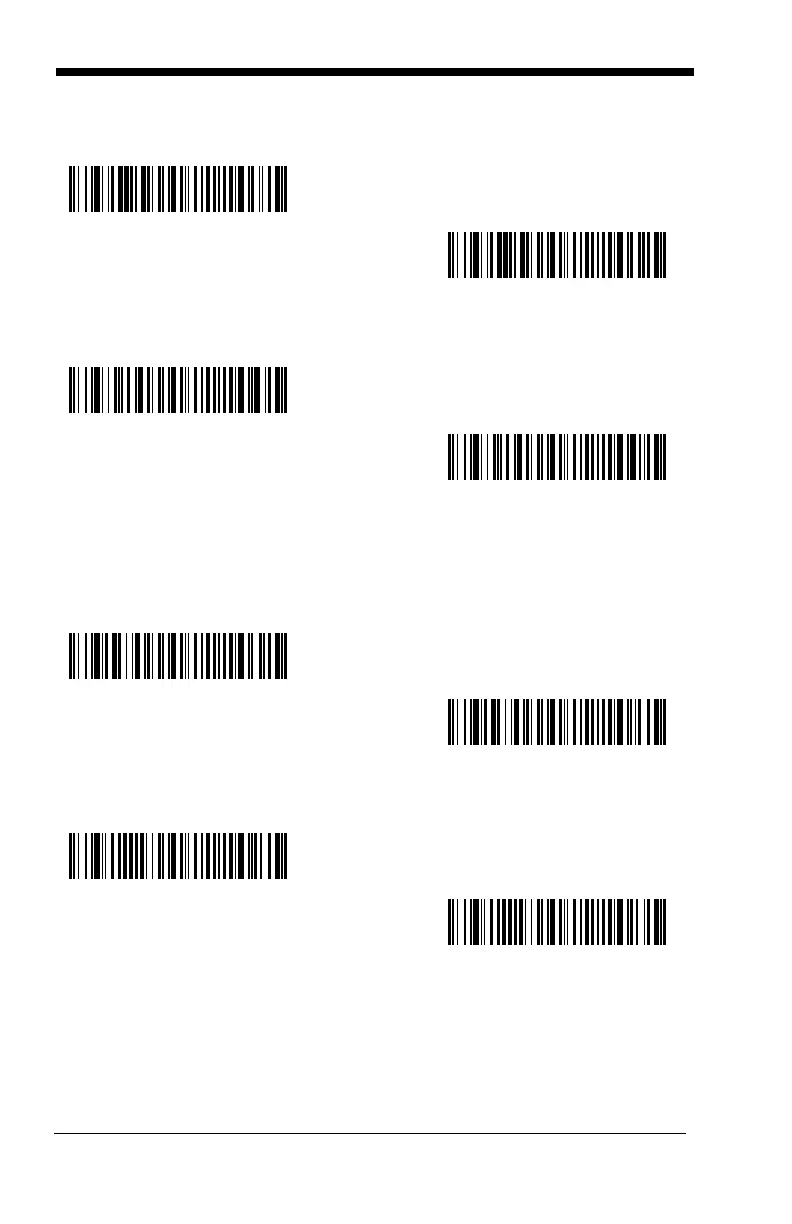

7 - 42
British P
ost
Canadian P
ost
Kix (Netherlands) P
ost
Note:
Kix code can misread when scanned sideways or upside down. Use
Working Orientation
,
page 4-22, if your Kix co
des will not usually be
presented upright to the image scanner.
A
ustralian Post
A
ustralian P
ost Interpretation
This option controls what inter
pretation
is applied to customer fields in Austra-
lian 4-State symbols.
Bar Output
lists the bar patterns in “0123” format.
*
Off
On
*
Off
On
*
Off
On
*
Off
On
157
159
Table of Contents
Default Chapter
11
Table of Contents
11
Chapter 1 - Getting Started
21
About this Manual
21
Unpacking the System
21
Image Scanner Models
21
Cordless System: Main Components
22
About the Battery
22
Proper Disposal of the Battery
23
Connecting the Base
23
Connecting the Base with USB
23
Connecting the Base with Keyboard Wedge
24
Connecting the Base with RS-232 Serial Port
26
Connecting the Base with RS-232 Wedge
26
Linking Image Scanner to Base
27
Communication between the Cordless System and the Host
28
Reading Techniques
29
Chapter 2 - Programming the Interface
31
Introduction
31
Programming the Interface - Plug and Play
31
Keyboard Wedge Connection
31
Laptop Direct Connect
31
Rs-232
32
Wand Emulation Plug & Play
32
IBM 4683 Ports 5B, 9B, and 17 Interface
33
IBM Surepos
34
USB PC or Macintosh Keyboard
35
Usb Hid
35
USB COM Port Emulation
35
Serial Wedge
36
Programming the Interface - Terminal ID Method
36
Supported Terminals
38
Keyboard Country
40
Keyboard Style
42
Keyboard Function Relationships
43
Keyboard Modifiers
43
RS-232 Baud Rate
45
RS-232 Word Length: Data Bits, Stop Bits, and Parity
45
RS-232 Receiver Time-Out
46
RS-232 Handshaking
47
Host ACK Selection
47
Host ACK Enable
49
Wand Emulation
50
Wand Emulation Connection
50
Wand Emulation Data Block Size
51
Wand Emulation Delay between Blocks
52
Wand Emulation Overall Checksum
52
Wand Emulation Transmission Rate
53
Wand Emulation Polarity
53
Wand Emulation Idle
54
Chapter 3 - Basic System Operation
55
Cordless Base
55
RF (Radio Frequency) Module Operation
55
Cordless Image Scanner
55
System Conditions
56
Linking Process
56
Image Scanner Is out of Range
56
Image Scanner Is Moved Back into Range
56
Out of Range and Back into Range with Data Accumulation Mode on
56
Base Charge Mode
57
Beeper and LED Sequences and Meaning
58
Image Scanner LED Sequences and Meaning
58
2020 LED Sequences and Meaning
58
Image Scanner Modes
59
Unlinking the Image Scanner
59
Single Image Scanner Operation
59
Locked Link Mode - Single Image Scanner
60
Open Link Mode - Single Image Scanner
60
Override Locked Image Scanner
60
Multiple Image Scanner Operation
61
Image Scanner Name
61
Image Scanner Report
63
Application Work Groups
63
Application Work Group Selection
64
Resetting the Standard Product Default Settings: All Application Work Groups
65
Resetting the Standard Product Default Settings: Current Application Work Group
65
Using the Image Scanner with Bluetooth Devices
66
Pc/Laptops
66
Pda/Mobility Systems Devices
66
Example of Setting up a
66
Windows Mobile® 5.0)
66
Changing the Image Scanner's Bluetooth PIN Code
72
Starting Scanwedge
74
Out-Of-Range Alarm
74
Duration
74
Alarm Sound Type
75
Data Accumulation Mode
76
Batch Mode Transmit Delay
77
Chapter 4 - Output
79
Good Read Indicators
79
Beeper - Good Read
79
Beeper Volume - Good Read
79
Beeper Pitch - Good Read
80
Beeper Duration - Good Read
80
LED - Good Read
80
Number of Beeps - Good Read
80
Good Read Delay
81
User-Specified Good Read Delay
81
Serial Trigger Modes
82
Manual/Serial Trigger, Low Power
82
Scan Stand Mode
84
Scan Stand Symbol
84
Presentation Mode
85
Presentation LED Behavior after Decode
85
Presentation Sensitivity
86
Streaming Presentation™ Mode
86
Image Snap and Ship
87
Hands Free Time-Out
87
Reread Delay
87
User-Specified Reread Delay
88
LED Power Level
88
Illumination Lights
89
Aimer Delay
90
User-Specified Aimer Delay
90
Aimer Mode
90
Centering
91
Decode Search Mode
92
Preferred Symbology
93
Symbology Chart
94
Output Sequence Overview
95
Output Sequence Editor
97
Require Output Sequence
97
Multiple Symbols
98
No Read
99
Print Weight
99
Video Reverse
100
Working Orientation
100
Chapter 5 - Data Editing
103
Prefix/Suffix Overview
103
To Add a Prefix or Suffix
103
To Clear One or All Prefixes or Suffixes
104
To Add a Carriage Return Suffix to All Symbologies
105
Prefix Selections
106
Suffix Selections
106
Function Code Transmit
106
Intercharacter, Interfunction, and Intermessage Delays
107
Intercharacter Delay
107
User Specified Intercharacter Delay
107
Interfunction Delay
108
Intermessage Delay
109
Chapter 6 - Data Formatting
111
Data Format Editor Introduction
111
To Add a Data Format
111
Other Programming Selections
112
Data Format Editor Commands
112
Data Format Editor
115
Data Formatter
115
Alternate Data Formats
116
Chapter 7 - Symbologies
118
All Symbologies
118
Message Length Description
118
Codabar
119
Codabar Concatenation
120
Code 32 Pharmaceutical (PARAF)
123
Full ASCII
124
Code 39 Code Page
124
Interleaved 2 of 5
125
Code 93
127
Code 93 Code Page
127
Straight 2 of 5 Industrial (Three-Bar Start/Stop)
128
Straight 2 of 5 IATA (Two-Bar Start/Stop)
129
Matrix 2 of 5
130
Code 11
131
Code 128
131
ISBT 128 Concatenation
132
Code 128 Code Page
133
Telepen
133
Upc-A
134
Upc-A/Ean-13
137
With Extended Coupon Code
137
Upc-E0
137
Upc-E1
140
Ean/Jan-13
140
ISBN Translate
142
Ean/Jan-8
142
Msi
144
Plessey Code
145
GS1 Databar Omnidirectional
146
GS1 Databar Limited
146
GS1 Databar Expanded
146
Posicode
147
Codablock F
148
Code 16K
149
Code 49
150
Pdf417
152
Micropdf417
152
GS1 Composite Codes
153
UPC/EAN Version
154
GS1 Emulation
154
TCIF Linked Code 39 (TLC39)
155
Postal Codes
155
Intelligent Mail Bar Code
155
ID-Tag (UPU 4-State)
156
Postnet
156
Planet Code
157
British Post
158
Canadian Post
158
Kix (Netherlands) Post
158
Australian Post
158
Japanese Post
160
China Post
160
Korea Post
161
QR Code
162
Data Matrix
163
Maxicode
164
Aztec Code
165
Chinese Sensible (Han Xin) Code
166
Chapter 8 - Imaging Commands
167
Single-Use Basis
167
Command Syntax
167
Image Snap - IMGSNP
168
IMGSNP Modifiers
168
Image Ship - IMGSHP
171
IMGSHP Modifiers
172
Image Size Compatibility
181
Intelligent Signature Capture - IMGBOX
181
IMGBOX Modifiers
183
RF Default Imaging Device
186
Chapter 9 - OCR Programming
187
OCR Fonts
187
Ocr
187
U.S. Currency Font
188
MICR E13 B Font
188
SEMI Font
189
OCR Templates
189
Creating an OCR Template
189
Stringing Together Multiple Formats (Creating "Or" Statements)
191
OCR User-Defined Variables
192
Reading Multi-Row OCR
193
OCR Check Character
193
OCR Modulo 10 Check Character
194
OCR Modulo 36 Check Character
194
OCR User-Defined Check Character
194
Weighting Options
196
OCR ISBN Application Example
197
OCR Template Codes
199
Chapter 10 - Interface Keys
201
Keyboard Function Relationships
201
Supported Interface Keys
203
Chapter 11 - Utilities
207
To Add a Test Code I.D. Prefix to All Symbologies
207
Show Decoder Revision
207
Show Engine Revision
207
Show Scan Driver Revision
208
Show Software Revision
208
Show Data Format
208
Reset Image Scanner
208
Image Scanner Report
209
Image Scanner Address
209
Base Address
209
Resetting the Standard Product Default Settings: Current Application Work Group
209
Resetting the Standard Product Default Settings: All Application Work Groups
210
Test Menu
210
Visual Xpress Introduction
211
Installing Visual Xpress from the Web
212
Quickview
212
Installing Quickview from the Web
212
Temporary Quickview Configuration
213
Chapter 12 - Serial Programming Commands
215
Conventions
215
Menu Command Syntax
215
Query Commands
216
Concatenation of Multiple Commands
216
Responses
217
Examples of Query Commands
217
Trigger Commands
218
Menu Commands
219
Factory Default Settings
219
Terminal Interfaces
219
Basic System Operation
223
Output Selections
225
Prefix/Suffix Selections
228
Data Formatter Selections
229
Symbologies
229
Imaging Default Commands
241
OCR Selections
243
Minimizing Bluetooth/Ism Band Network Activity
244
Chapter 13 - Product Specifications
245
4820 Product Specifications
245
4820I Product Specifications
247
2020-5 Product Specifications
248
Chapter 14 - Maintenance
255
Repairs
255
Cleaning the Device
255
Inspecting Cords and Connectors
255
Replacing the 2020 Interface Cable
256
Assembling the Battery Charge Sleeve Kit
257
Troubleshooting the Base
258
Troubleshooting the Image Scanner
258
Chapter 15 - Customer Support
261
Product Service and Repair
261
Online Product Service and Repair Assistance
262
Limited Warranty
262
Appendix A - Reference Charts
265
Symbology Chart
265
Possible Aim
266
Code Page Mapping of Printed Bar Codes
271
Appendix B - Minimizing Bluetooth/Ism Band Network Activity
273
Auto Reconnect Mode
273
Maximum Link Attempts
274
Relink Time-Out
274
Bluetooth/Ism Network Activity Examples
275
Sample Symbols
278
OCR Programming Chart
281
Programming Chart
282
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Honeywell 2020 and is the answer not in the manual?
Ask a question
Honeywell 2020 Specifications
General
Brand
Honeywell
Model
2020
Category
Barcode Reader
Language
English
Related product manuals
Honeywell 2020-5
192 pages
Honeywell 1300G-2
2 pages
Honeywell 1900GSR-2
298 pages
Honeywell 1900GHD-2
314 pages
Honeywell 1900GSR-2USB
298 pages
ControlEdge 2020 SC-TEPR01
126 pages
ControlEdge 2020 SC-UMIX01
126 pages
ControlEdge 2020 SC-UCNN11
126 pages
Honeywell Orbit MS7120
44 pages
Honeywell Genesis 7580G
202 pages
Honeywell Solaris MS7820
2 pages
Honeywell Hyperion 1300G
188 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
