14 - 3

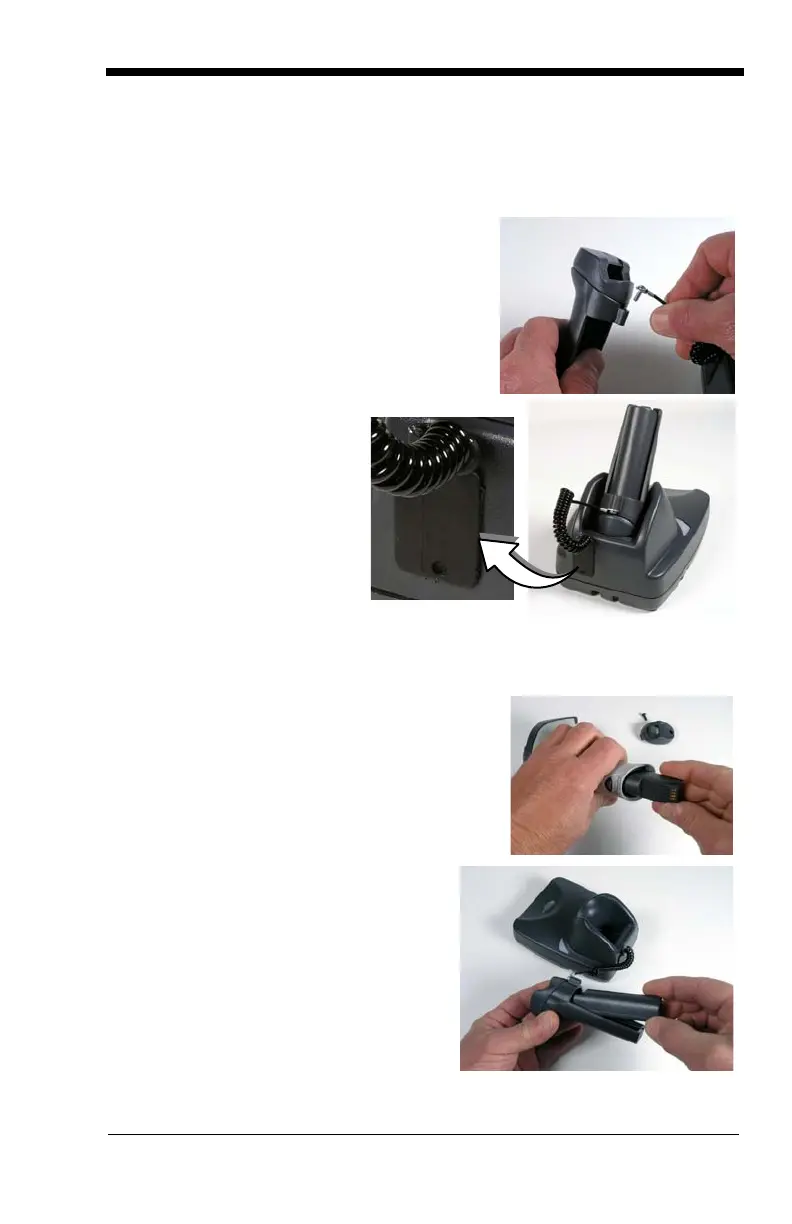

Assembling the Battery Charge Sleeve Kit
Attach Tether
1. Use the phillips screw to connect the metal
ring of the coiled tether to the battery charge
sleeve.
2. Peel the backing from the
metal plate on the coiled
tether and affix the metal
plate to the back of the
2020 base.
Note: For best adhesion, allow
a 24 hour cure time
before placing stress on
the metal plate.
Remove Battery
Remove the end cap of the image scanner (turn
the thumbwheel or use a hex wrench).
Insert Battery into Charge Sleeve
1. Place the squared-off end of the battery
into the sleeve and slide it until it stops.
The battery contacts should be show-
ing through the small rectangular open-
ing in the battery sleeve.
2. Press other end of the battery until you
feel a click.
