Mounting and Connection Instructions Reader series "luminAXS"
0
F
i
r
3
123
456
789
DUO LED
red/green
LED green
Disarm
Confirm entry
OK
Information
Arm
Function key
Cancel /
delete entry
LED
yellow
Numeric keypad for PIN entry
(PIN = Personal identification number)
Italics functions only in combination with IDS.
The LEDs and the buzzer are controlled over a bus system. The definition for each is specified in the
main software and not at the reader.
Special case MIFARE DESFire EV1/EV2 reader:
After the operating voltage has been applied, the LEDs green, yellow and red flash
simultaneously for 5 seconds at 2 Hz intervals. In this case, the interface is programmed in
Clock/Data mode.
Special case fault: The DUO LED flashes red / green.
In this case there is a . Please contact our application engineering.system fault
Lighting ring
Arm Disarm
LED
green
LED
yellow
DUO LED
red/green
Reader without keypad: The arrangement of
the LEDs is identical to the reader with 2 keys.
Keys and on ACS:
arm/disarm an IDS via ACS

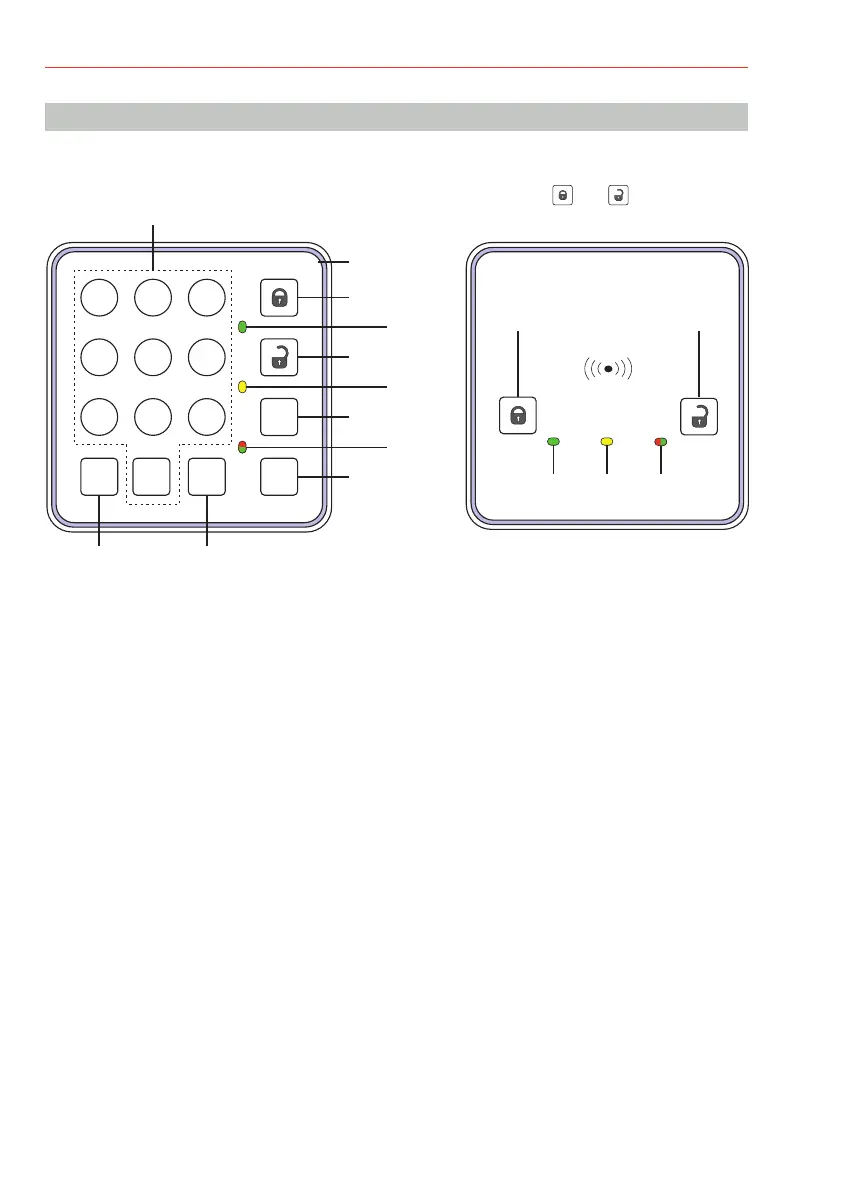

3. Operating and indication elements
3.1 Keypad and LED indication
