34
Mounting and Connection Instructions Reader series "luminAXS"

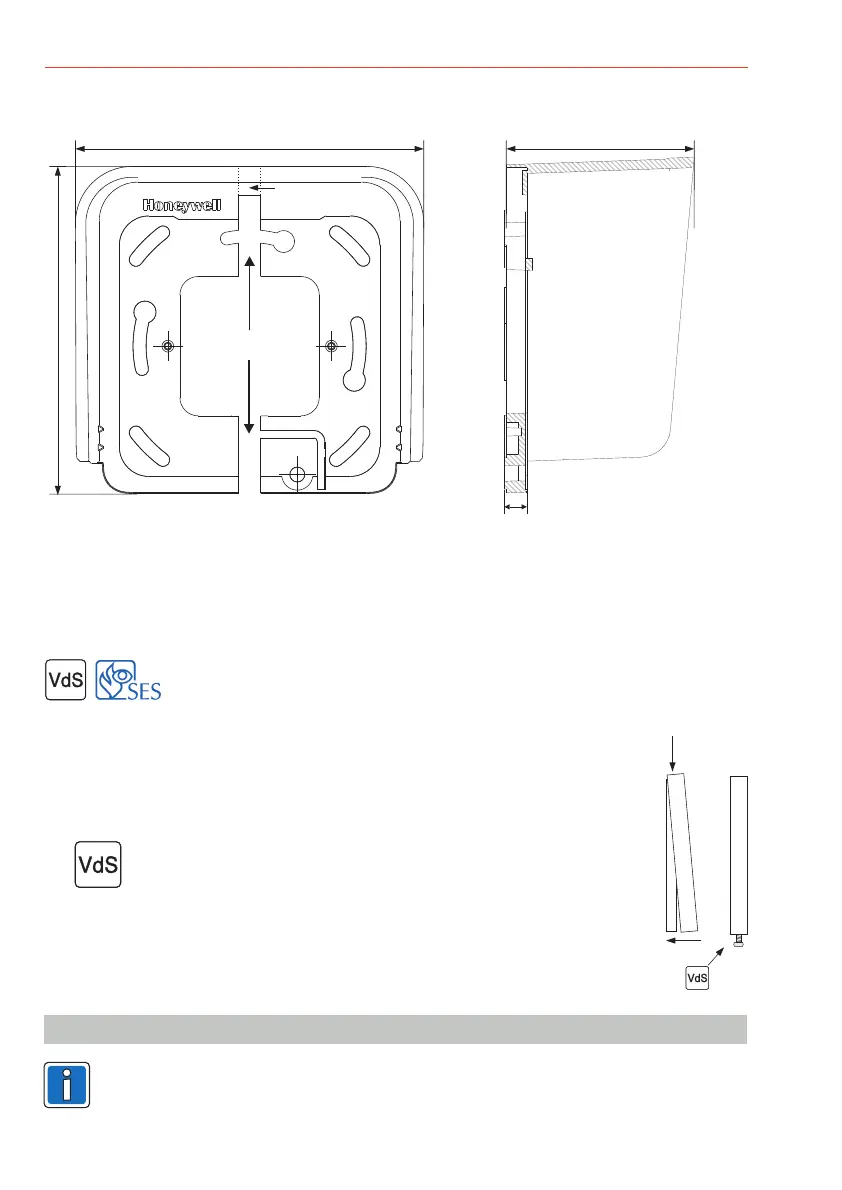

5.4 Mounting with luminAXS sight protection
The luminAXS sight protection (Item no. 027965) or luminAXS sight protection (Item no. 027965.10 for
VdS applications and SES applications) is suitable for f.m. and s.m. wiring.
The mounting is identical to the mounting with the mounting plate.
Note that the luminAXS sight protection cannot be rotated. For this reason, a surface mounted cable
entry from below or above is not possible.
For a lateral cable entry, it is therefore necessary to provide the wall plate under the sight protection.
5.5 Fasten reader and seal housing
hang the reader from above in the reader base
snap shut below
close with the two attached screws.
Press in plastic seals and clean the seals (free from grease).
Then cover the seals with VdS stickers.
After inserting the plastic seals, the housing cannot be opened without
destroying the seals.
.6 Connection diagram
A plug has been soldered to the cable of the reader at the factory especially for test and
premounting sets. For the final installation, it usually has to be cut off.
The connection be carried out in de-energized state! Risk of damage!must
50 (62)
6
95,0 (95,9)
89,2 (89,6)
s.m. cable entry
Break if
necessary
Dimensions 027965 (027965.10)
Please note when operating the 16-key reader: For installation in accordance to
VdS and SES (Requirement CHD.03 - Identifikation, 2.1.2 input devices),
mounting with luminAXS sight protection (item no. 027965.10) is required.
