7.2. SD card replacement
142 MC Toolkit (MCT404) User Manual Revision 3
6. Remove any existing SD card,
7. Slide the new SD card into place.

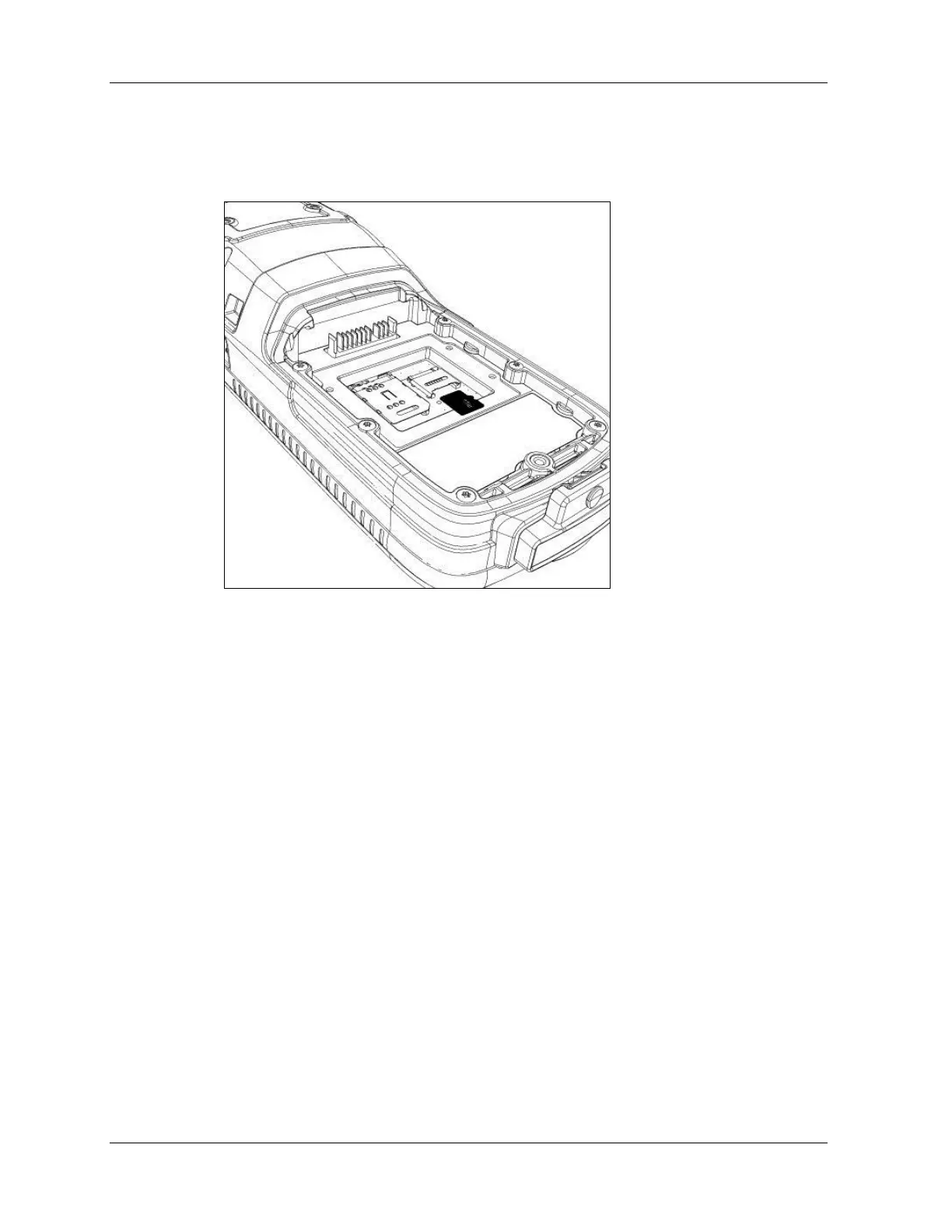

Figure 7-3 SD Card Replacement
1. Close the SD card door and slide it towards the bottom of the MCT404 to lock it in place.
2. Close the SIM card door and slide it to the right to lock it in place.
3. Close the card access door. Then replace the cover plate and fasten the four screws.
4. Install the battery. Press down firmly on the bottom of the battery. Then tighten the screw.
5. Reattach the handstrap.
6. Press the Power button. The MCT404 cold boots.
Note: The MCT404 resets when you open the card access door to insert the SD card. Make sure you completely
close the card access door before you use your MCT404.
