Honeywell MS3780 Fusion User Manual

11

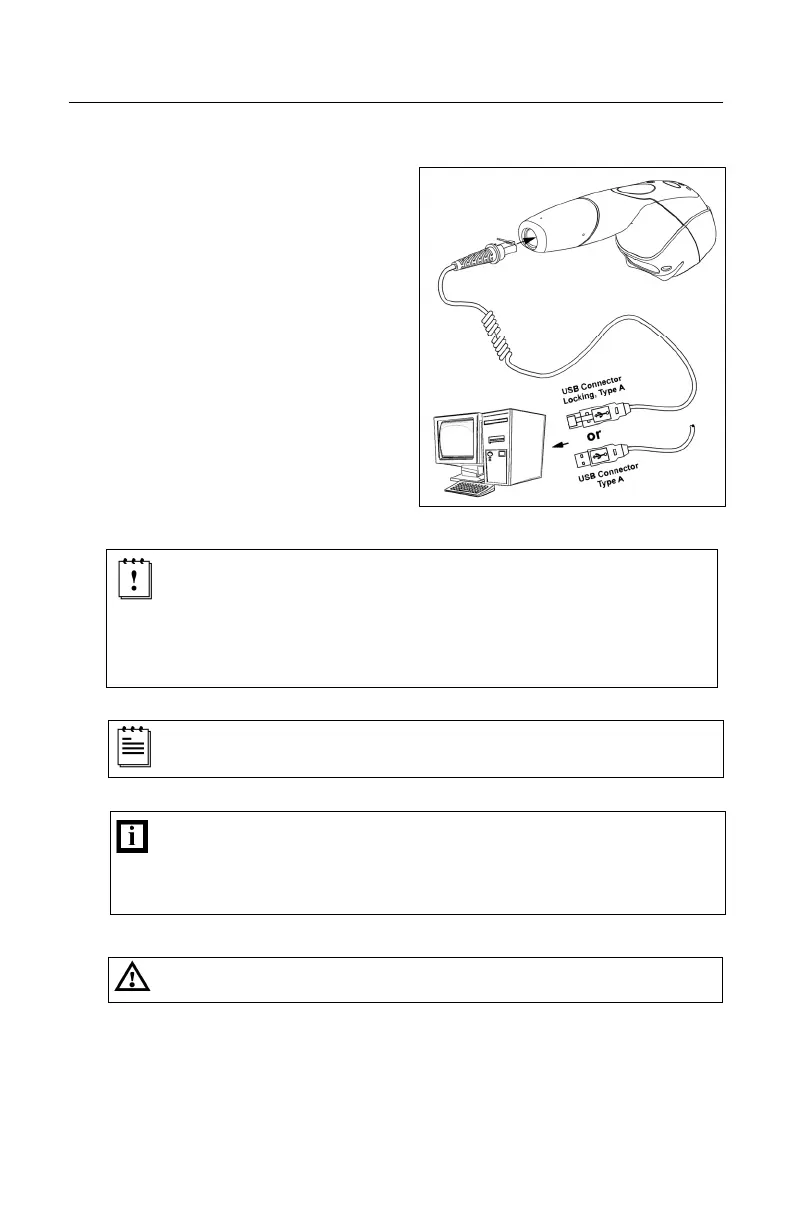

Figure 11.
INSTALLATION
Full Speed or Low Speed USB (Integrated)
1. Turn off the host device.
2. Plug the male 10-pin RJ45 end of
the USB PowerLink cable into the
10-pin socket on the MS3780.
3. Plug the other end of the USB
interface cable into the host
device’s USB port.
4. Turn on the host device.
As a default, the MS3780-38 leaves the factory with USB Keyboard
Emulation Mode enabled.
For information on configuring the MS3780-38 for USB Serial
Emulation Mode, please refer to the USB: Low Speed section of the
MetroSelect Configuration Guide (MLPN 00-02407).
When the scanner first receives power the white LED will flash, one
blue LED will turn on and the scanner will emit one beep.
Plugging the scanner into the USB port of the PC does not guarantee
that scanned information will appear at the PC. A software driver and
correct configuration setting are also required for proper
communication to occur.
See Caution statement on page 5.

Honeywell MS3780 Fusion Specifications

General

Scan speed	1333 sec/page
Wavelength	650 nm
Decoding standards	1D, GS1
Dimensions (WxDxH)	189 x 65 x 73 mm
Standard interfaces	Keyboard wedge
Input voltage	5 V
Certification	FCC Part 15, ICES-003, EN55022 Class B
Product color	Black
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	-20 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	195 g
