SCANNER OPERATION
The Scan Pattern Mode Select Button
There are two configurable scan pattern modes available with the MS3780.
• The primary scan pattern mode is the default scan pattern active when the
scanner starts. By default, the primary scan pattern is set to all-scan-lines
for omnidirectional reading.
• Pressing the scan pattern mode button (see figure below) activates the
secondary scan pattern mode. By default, the secondary scan pattern is
set to single-line mode for menu reading.
Please refer to the MetroSelect Configuration Guide for information
on changing the default scan pattern settings.

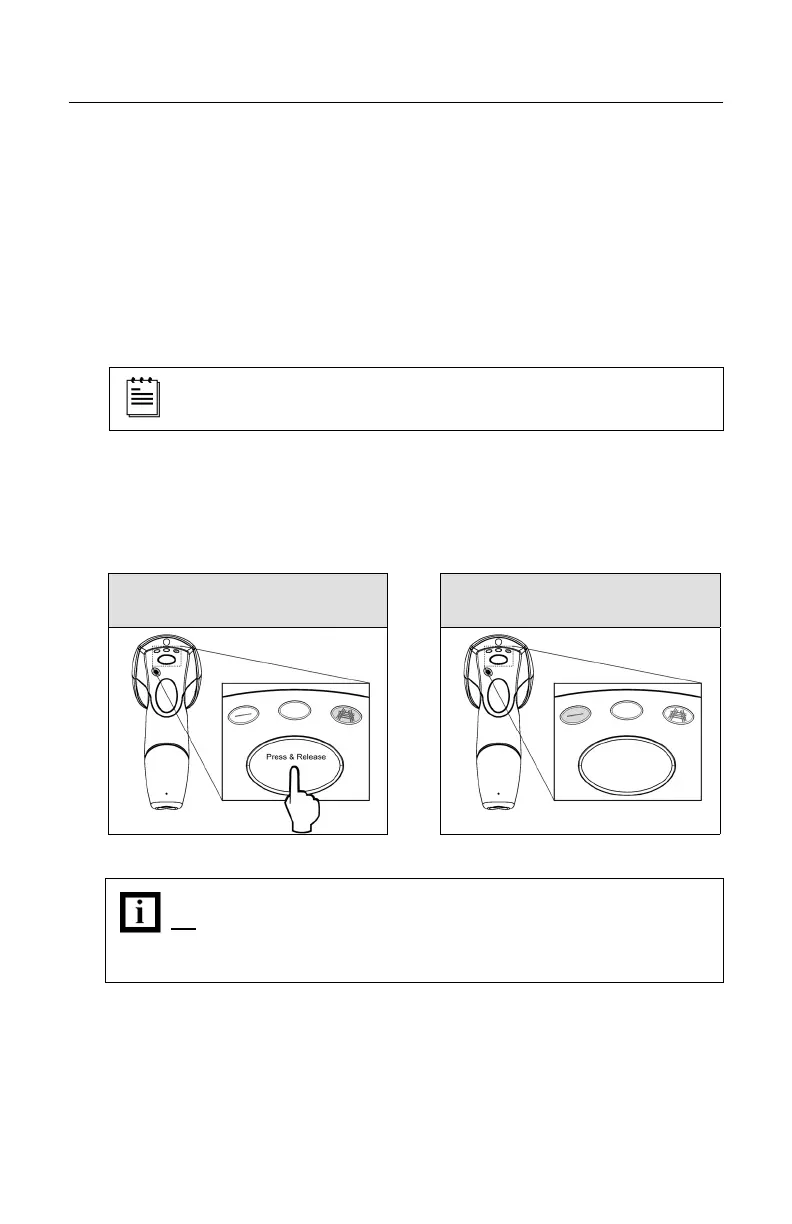

To Change Scan Pattern Modes
1. To activate the secondary scan pattern, press and release the
mode select button.
Press and Release the
Mode Select Button
Pattern Mode LED Switches
to New Active Pattern
Figure 14. Figure 15.
Activating a pattern mode when the scanner is out of its stand does
not change the in-stand pattern mode. When the scanner is
returned to the stand it will automatically revert to the most recent
scan pattern selected during in-stand operation.
2. To re-activate the primary scan pattern, press and release the
mode select button again.

Honeywell MS3780 Fusion Specifications

General

Scan speed	1333 sec/page
Wavelength	650 nm
Decoding standards	1D, GS1
Dimensions (WxDxH)	189 x 65 x 73 mm
Standard interfaces	Keyboard wedge
Input voltage	5 V
Certification	FCC Part 15, ICES-003, EN55022 Class B
Product color	Black
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	-20 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	195 g
