Honeywell MS3780 Fusion User Manual

32
SCANNER AND CABLE TERMINATIONS

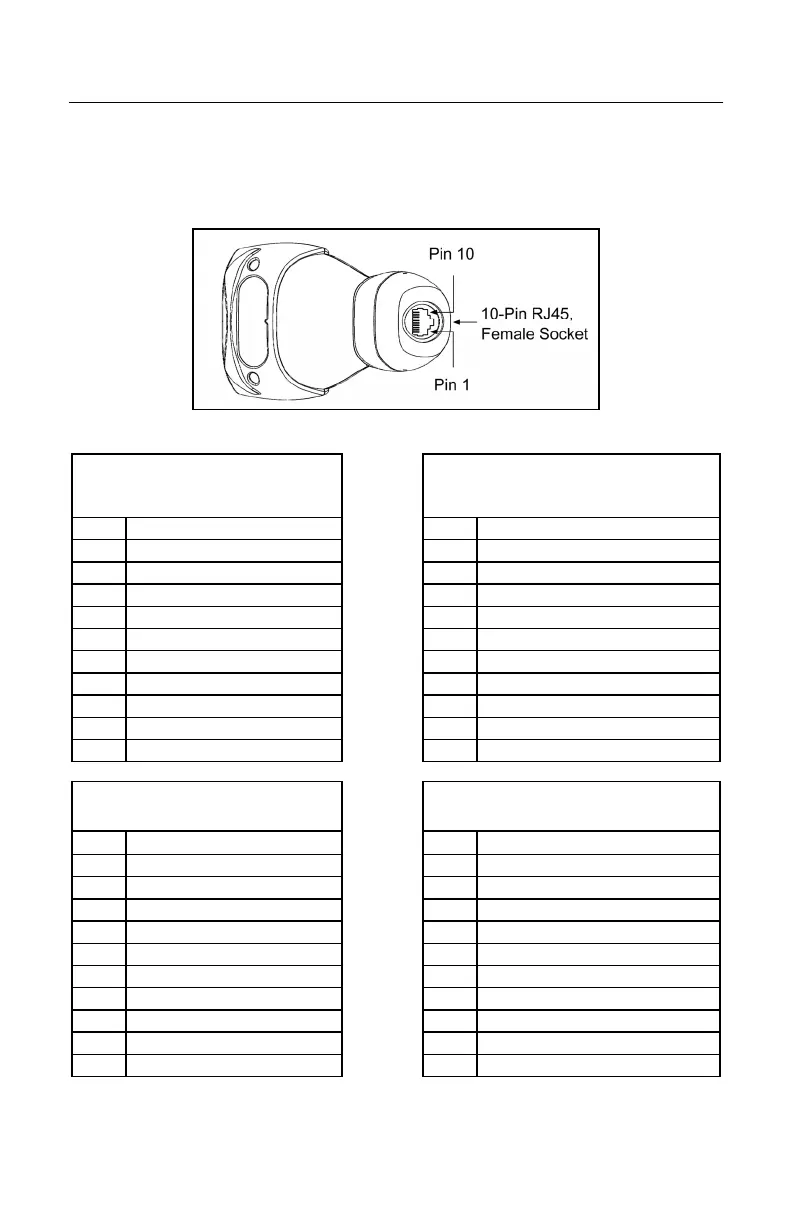

Scanner Pinout Connections
The MS3780 scanner interfaces terminate to a 10-pin modular socket.
The serial number label indicates the interface enabled when the scanner is
shipped from the factory.
Figure 24.
MS3780-47
Keyboard Wedge and
Stand-Alone Keyboard
MS3780-41
RS232 and Light Pen Emulation
Pin Function Pin Function
1 Ground 1 Ground
2 RS232 Transmit Output 2 RS232 Transmit Output
3 RS232 Receive Input 3 RS232 Receive Input
4 PC Data 4 RTS Output
5 PC Clock 5 CTS Input
6 KB Clock 6 DTR Input/LTPN Source
7 PC +5V 7 Reserved
8 KB Data 8 LTPN Data
9 +5VDC 9 +5VDC
10 Shield Ground 10 Shield Ground
MS3780-40
Full Speed USB
MS3780-38
RS232 Low Speed USB
Pin Function Pin Function
1 Ground/USB- 1 Ground/USB-
2 RS232 Transmit Output 2 RS232 Transmit Output
3 RS232 Receive Input 3 RS232 Receive Input
4 RTS Output 4 RTS Output
5 CTS Input 5 CTS Input
6 D+ 6 D+
7 USB +V 7 USB +V
8 D- 8 D-
9 +5VDC 9 +5VDC
10 Shield Ground 10 Shield Ground
Continued on next page.

Honeywell MS3780 Fusion Specifications

General

Scan speed	1333 sec/page
Wavelength	650 nm
Decoding standards	1D, GS1
Dimensions (WxDxH)	189 x 65 x 73 mm
Standard interfaces	Keyboard wedge
Input voltage	5 V
Certification	FCC Part 15, ICES-003, EN55022 Class B
Product color	Black
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	-20 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	195 g
