ID2000 Series Operating Manual
Operator Actions at Panel
29 997-434-000-4, Issue 4
May 2010
4.10 Display, Log and Print
This function allows the following:
a. Display and or logging of device data (see Section 4.10.1).
b. Printing of device data (see Section 4.10.2)
c. Display and reprint of the event log (see Section 4.10.3).
d. Control of the printer mode, if the printer is fitted (see
Section 4.10.4).
All operations use the LCD display menu, the structure
of which is shown below.

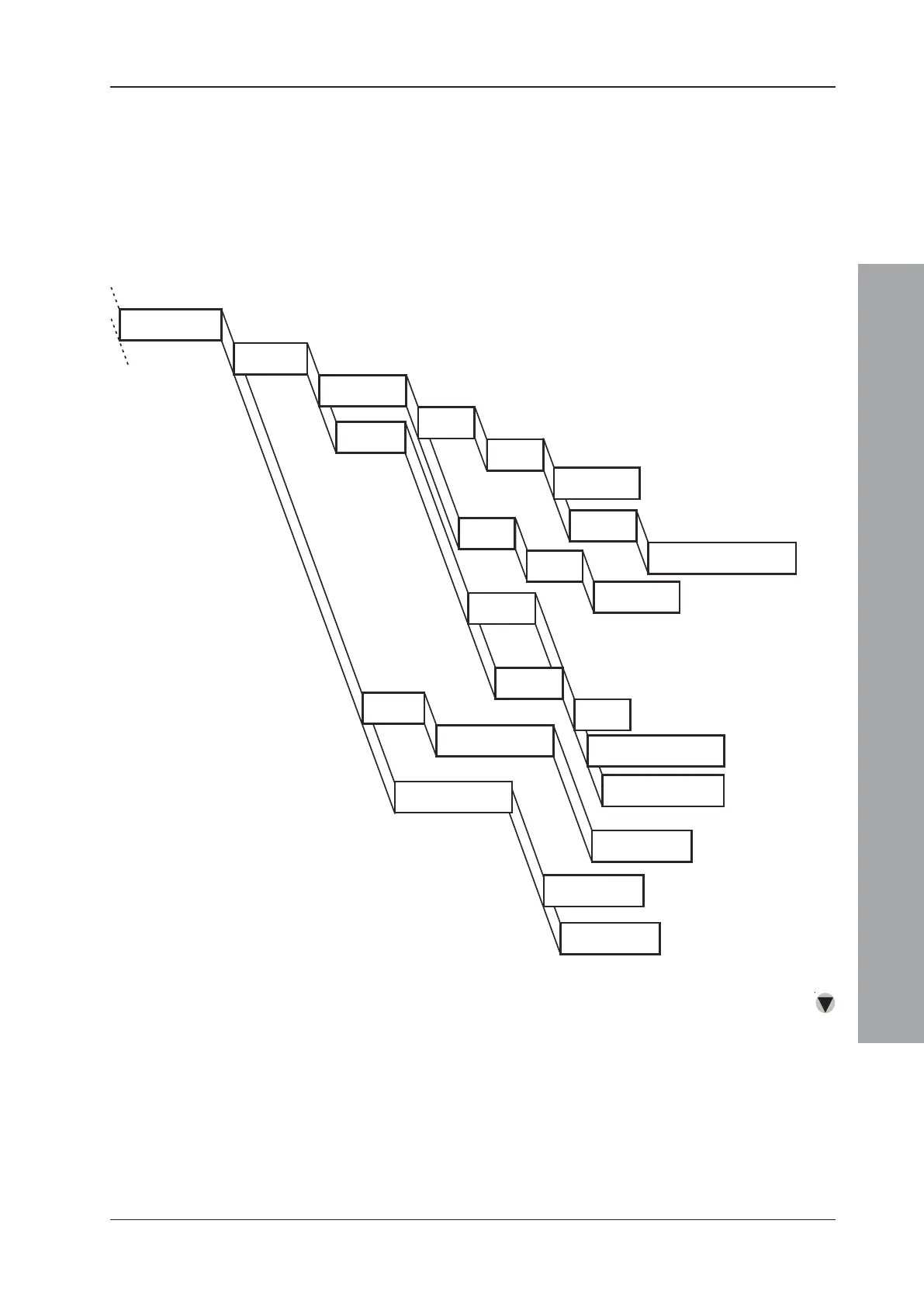

Log/Display menu structure. The available
menus within this structure depend upon
the passcode and the panel configuration.
LOG/DISPLAY
DEVICES
DISPLAY
PRINT
ZONE
ZONE
SENSOR
MODULE
NOT LOGGED
NOT LOGGED
LOGGED
ENTER LOGGING DETAILS
ENTER LOGGING DETAILS
SENSORS
MODULES
ZONE
BY VALUE THRESHOLD
DISABLED DEVICES
DISABLED DEVICES
EVENTS
SELECT DATE/TIME
PRINTER CONTROL
PRINTER CONTROL
RE-PRINT LOG
ON HOLD
When the panel status is NORMAL, use the
pushbutton to advance the printer paper.
