42 PX4ie and PX6ie High Performance Printer User Guide

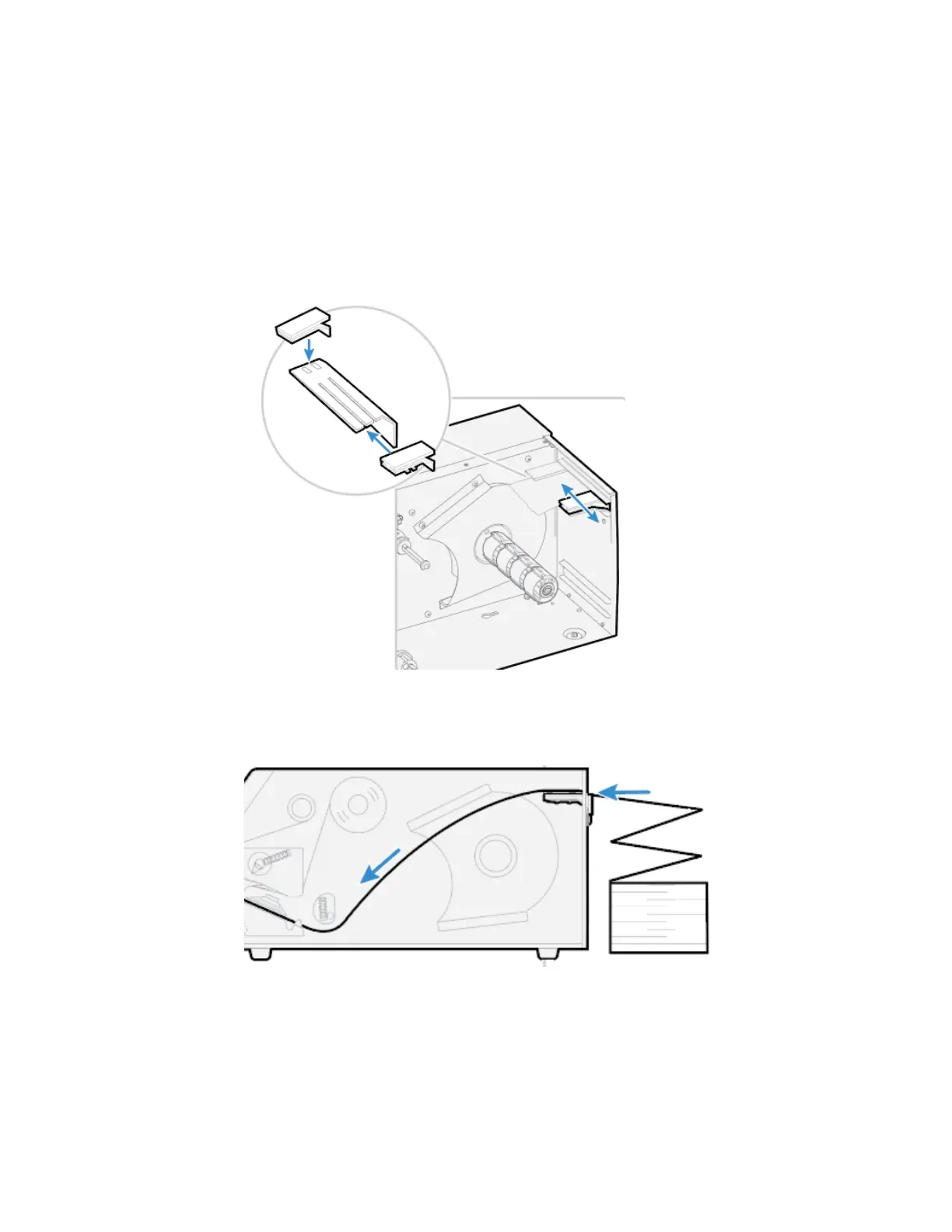

To load media for printing from an external supply
1. (Optional) Fit the fanfold guides in either the upper or lower slot. The outer
guide is adjustable for various media widths. The minimum width is 40 mm
(1.58 in).
• Fit the fanfold guide into the upper slot in the rear plate when the supply is at the
same level as the printer or in peel-off mode.
• Fit the fanfold guide into the lower slot in the rear plate when the supply is
placed lower than the printer.
2. Feed the media through the slot in the rear plate.
Feeding Media Through the Upper Slot

Honeywell PX4ie Specifications

General

Print Technology	Direct Thermal/Thermal Transfer
Print Resolution	203 dpi
Max Print Speed	10 inches per second (254 mm/s)
Connectivity	Ethernet, USB, Serial
Media Handling	tag, fan-fold
Supported Barcode Types	1D and 2D
Supported Media Types	Paper
