XNX Universal Transmitter
HART Protocol
187
Information Screens
All of the information in the Conguration Summary can be
viewed live on various informational displays. For example,
alarm settings are shown in this gure.

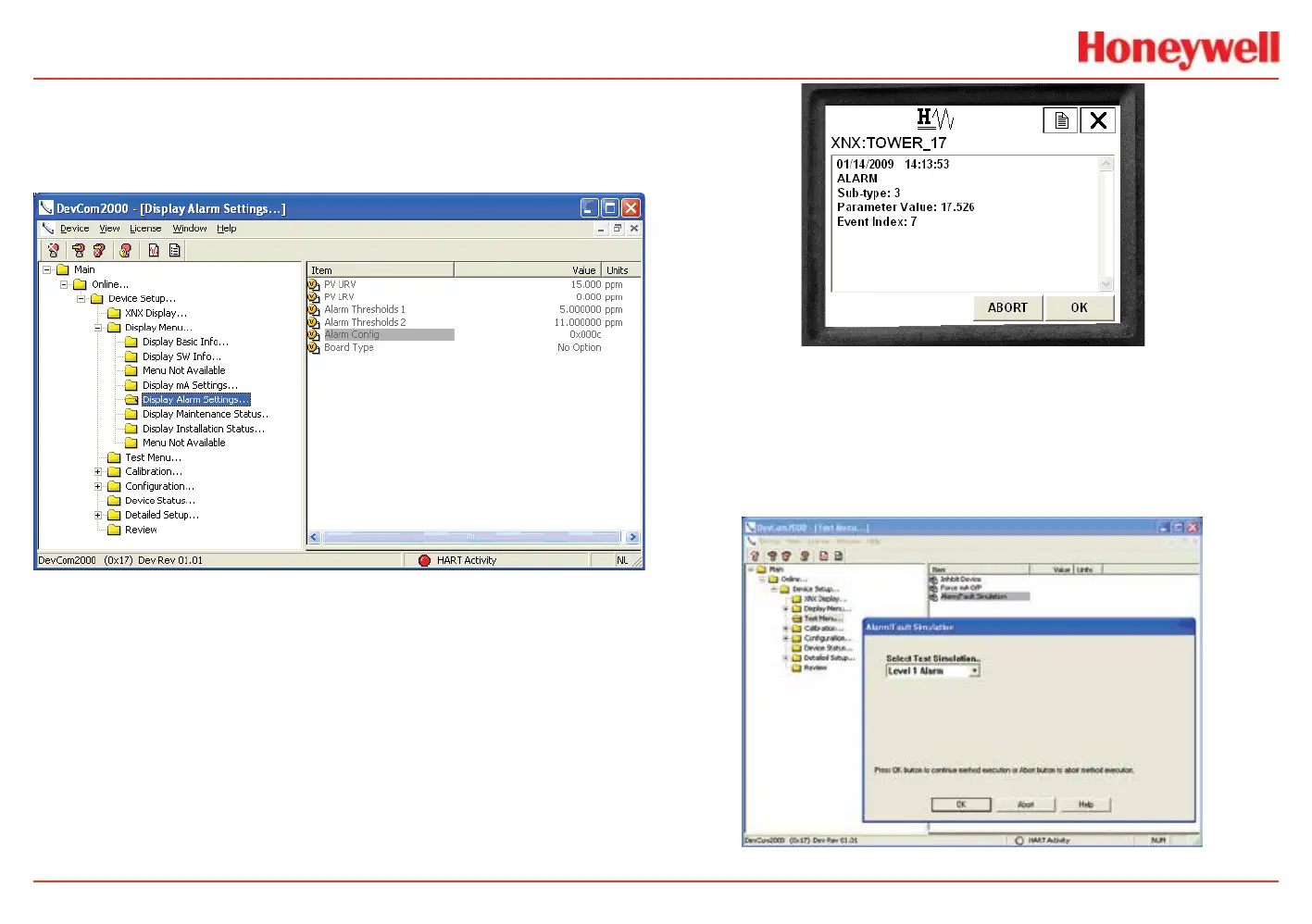

Figure 240. Typical alarm settings display
Event History
The transmitter maintains a record of alarms, warnings, and
faults. Additionally, over sixty types of informational events are
dened to record important transactions such as recalibrations
or conguration changes. One-thousand records are maintained
and every event has a timestamp.
Figure 241 HART event history display
Test
The test menu provides methods for inhibiting the output,
exercising the analog output, or simulating alarms or faults.
These methods simplify common tasks by providing a simple
user interface.
Figure 242. Alarm simulation
