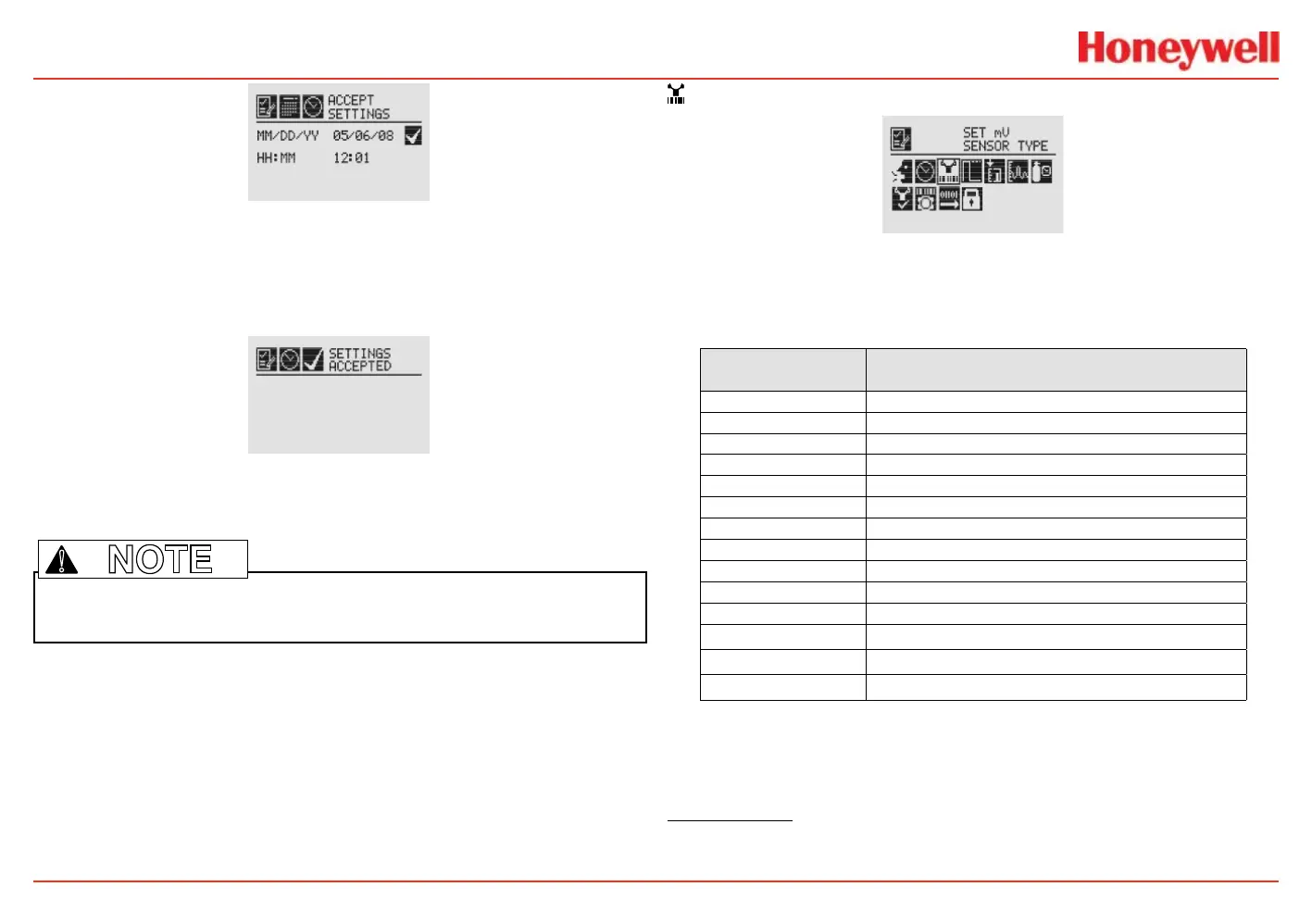

Figure 71. Accept Time-Date Changes screen
When the new settings have been saved, the “Settings
Accepted” screen will be displayed.
Figure 72. Time-Date Settings Accepted screen
Note: The remainder of this section requires Level 2 access.
NOTE
!
Set mV Sensor Type
Figure 73. Set mV Sensor Type screen
Set mV Sensor Type sets the identity of the type of mV sensor
attached to the transmitter. The available mV sensor type
selections are:
Sensor Description
MPD-IC1 (5%V) MPD Carbon Dioxide 5%Vol
MPD-IV1 (5%V) MPD Methane 5%Vol
MPD-IV1 (100%L) MPD Methane 100%LEL
MPD-IF1 (100%L) MPD Flammable 100%LEL
MPD-CB1 (100%L) MPD Flammable 100%LEL
705-HT (20%L) 705 Flammable 20%LEL (High-Temp)
705-HT (100%L) 705 Flammable 100%LEL (High-Temp)
705-STD (100%L) 705 Flammable 100%LEL
SP-HT (20%L) Sensepoint Flammable 20%LEL (High-Temp)
SP-HT (100%L) Sensepoint Flammable 100%LEL (High-Temp)
SP-STD (100%L) Sensepoint Flammable 100%LEL
SP-PPM (10%L)
Sensepoint Flammable PPM (10%LEL equiv)
SP-PPM
Sensepoint Flammable PPM
SP-HT-NH3
Sensepoint Ammonia 30,000 PPM
1
In nonane detection applications, if an MPD-CB1 sensor is employed, use star rating 2; with SP-HT
sensors, use star rating 4.
