Honeywell XNX-UTAI Series User Manual

XNX Universal Transmitter
Introduction
20

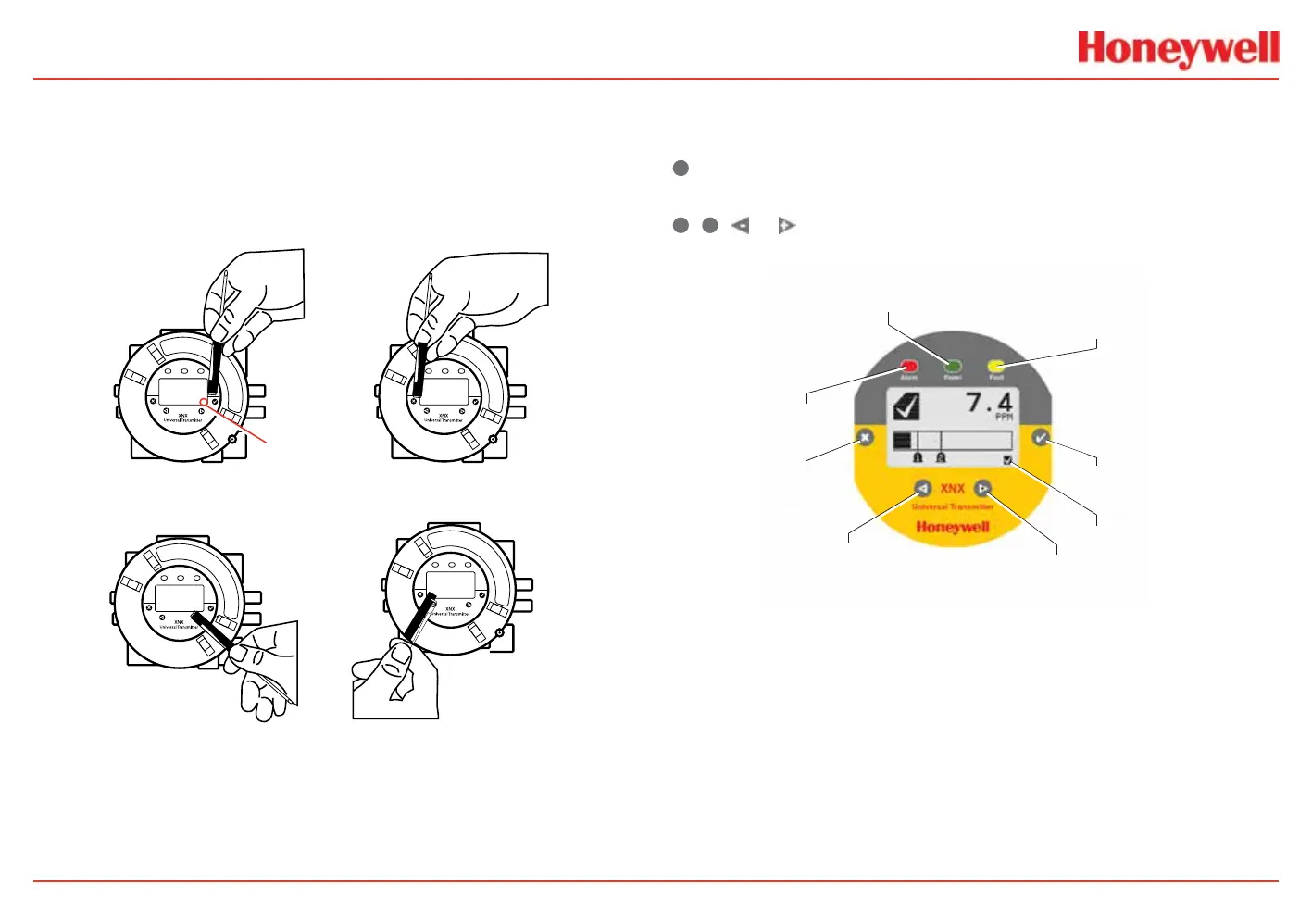

The Front Panel
The transmitter uses magnetic switches to enable non-intrusive
operation. To activate a magnetic switch, hold the magnetic end
of the screwdriver up to the glass window and slowly swipe the
magnet directly over the switch area. For best results, hold the
screwdriver as illustrated in Figure 7.
Enter/Accept
Escape/Back
Move Right/Increase Value Move Left/Decrease Value
Switch Actuation
Visual Indicator
Figure 7. Using the magnetic wand
A visual indication of the switch actuation will appear in
the lower right corner of the display each time the switch is
activated.
In some menus where displayed values can be changed, the
magnet must be swiped over the switch to cause the numeral
on the display to advance through the available values. Use the
✖
switch to return to a previous menu or eld.
For the purposes of this manual, the instruction to use
✓
,
✖
, or , means to activate the relevant magnetic switch as
described above.
Power LED (green)
Alarm LED (red)
Fault LED (yellow)
Escape
Move Left
Decement Value
Move Right
Increment Value
Switch Actuation
Visual Indicator
Enter/Accept
Figure 8. Front panel display of the transmitter
