XNX Universal Transmitter
Installation and Operation
32

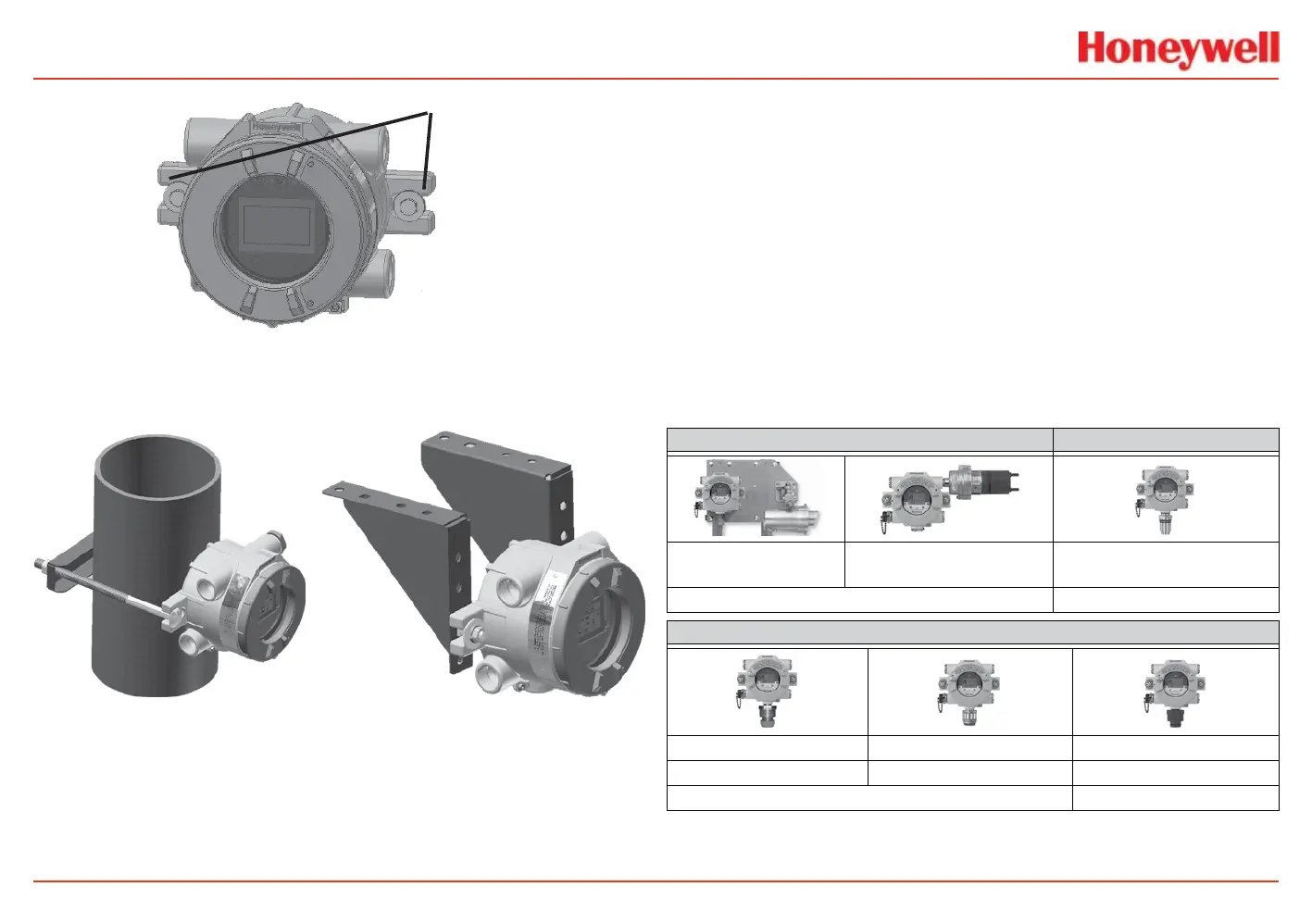

Integral Mounting Lugs
Figure 24. XNX Universal Transmitter mounting lugs
Figure 25. Optional pipe and ceiling mounts
Wiring the Transmitter
The transmitter is available in sensor technologies, or personality
options, which support a variety of sensors and applications.
Each of the personalities use a dedicated interface board.
Pluggable terminal blocks are used for easy connection and
service. The personality boards and optional communication
interfaces are enclosed in plastic housings comprising the
electronics POD (Personality, Options, and Display). The
Personality circuit board determines the transmitter’s behavior
based on the type of sensor attached to the interface. See
Specications for drift and zero deviation values.
This table illustrates the three transmitter congurations and the
sensors supported by each.
XNX IR Personality XNX EC Personality
Searchline Excel
Searchpoint Optima Plus Local/
Remote
XNX EC Sensor
Generic mA Sensors XNX EC Sensor Remote Mount Kit
XNX mV Personality
705 Local / Remote MPD Local (cat bead and IR) Sensepoint Local / Remote
705HT Local / Remote MPD Remote Sensepoint PPM Local/Remote
Sensepoint HT Remote
Figure 26. XNX Transmitter personalities
