Honeywell XNX-UTAI Series User Manual

XNX Universal Transmitter
Installation and Operation
40
box in multi-node systems when used with the supplied terminal
jumpers. These jumpers enable an electrical connection without
connecting to the Personality Board. Install them between pins 1
and 2 and between pins 3 and 4 to support multi-node wiring.
Keep the total load resistance for the 4-20mA between 200 and
500Ω, including the resistance of the properly selected 4-20mA
cable and input impedance of the equipment to be connected.
Failure to perform ‘Calibrate mA Output’ or with loads outside
the recommended values may result in a diagnostic warning or
fault messages.
If the 20 mA output is not used, a 500 ohm resistor must be
installed.
The transmitter’s power consumption is dependent on the
sensor and options for the specic conguration. For proper
operation, the input voltage must be maintained between 16 and
32 VDC for EC and mV units and between 18 to 32 VDC for IR
units.
Controller
+VE
Signal
-VE
R
L
1
2
3
1-1
1-5
1-3
+V
+mA
-V
XNX

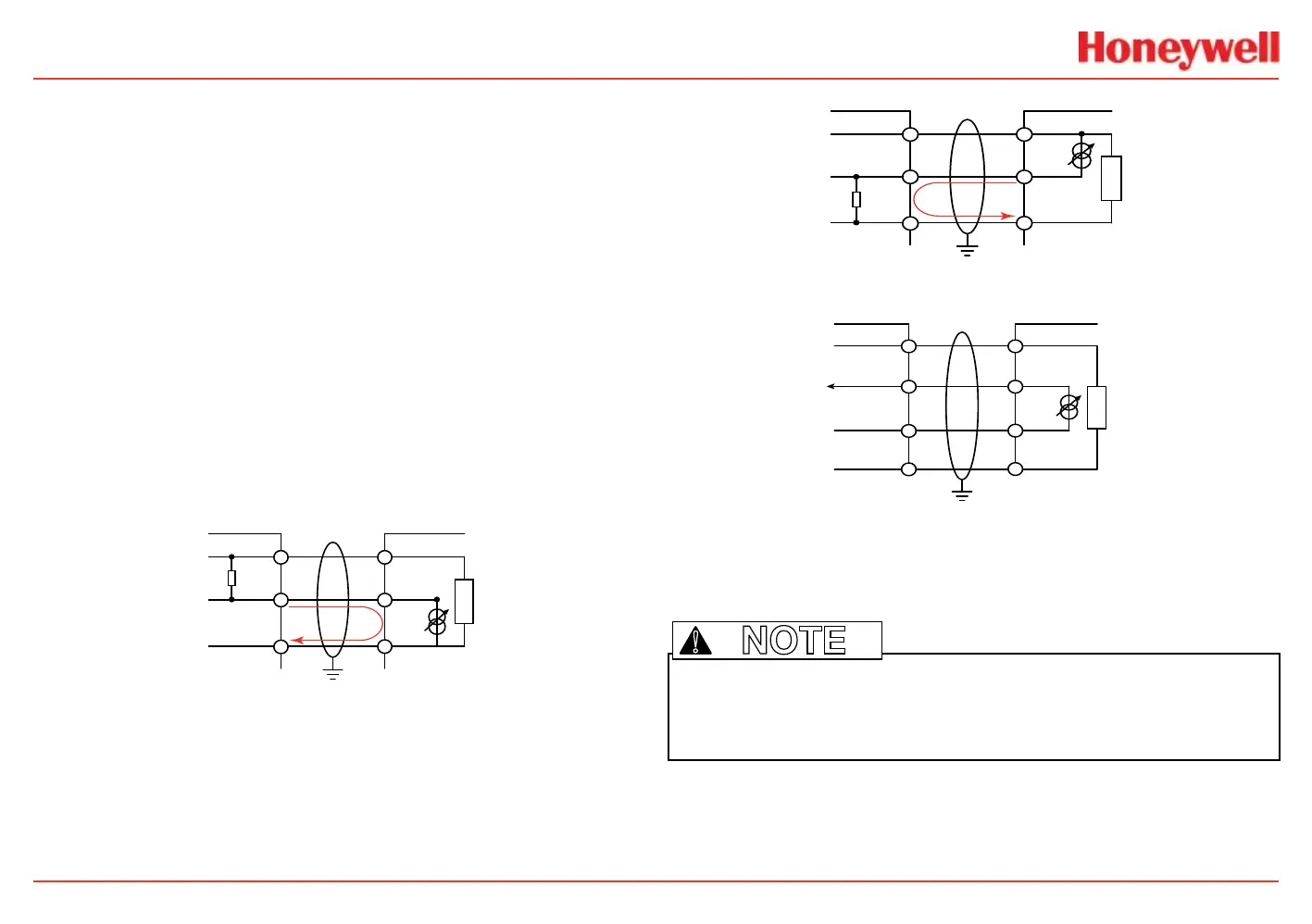

XNX Sink Configuration
Current
Flow
Figure 34. Sink wiring
XNX Source Configuration
Controller
+VE
Signal
-VE
R
L
1
2
3
1-1
1-6
1-3
+V
-mA
-V
XNX
Current
Flow
Terminate cable screen at the detector or controller, not both�
Figure 35. Source wiring
Controller
+V1
+V2
-V2
1-1
1-5
1-6
+V
+mA
-V
XNX
1-3
-mA
-V1
XNX Isolated Configuration
Figure 36. Isolated wiring
Labels applied to the back of the POD identify each of the
connection points.
Note: Pins 2 and 4 of terminal block TB1 have no internal connection on the
personality board. When used with the terminal block jumpers, pins 2 and 4 can
provide additional 4-20mA connections or supply power for daisy-chained units.
NOTE
!
