Removing the Power Supply
Removing the Power Supply
1. Position the workstation on its side so the power supply label is facing you. It is best to use a cushioned
surface to protect the exterior of the system from damage.
2. Position the conductive sheeting so that an inch of one edge is under the workstation and the rest is flat
against the work area to lay system components on after you remove them. Also ensure that your
static-grounding strap is securely attached to your wrist and to bare metal on the workstation.

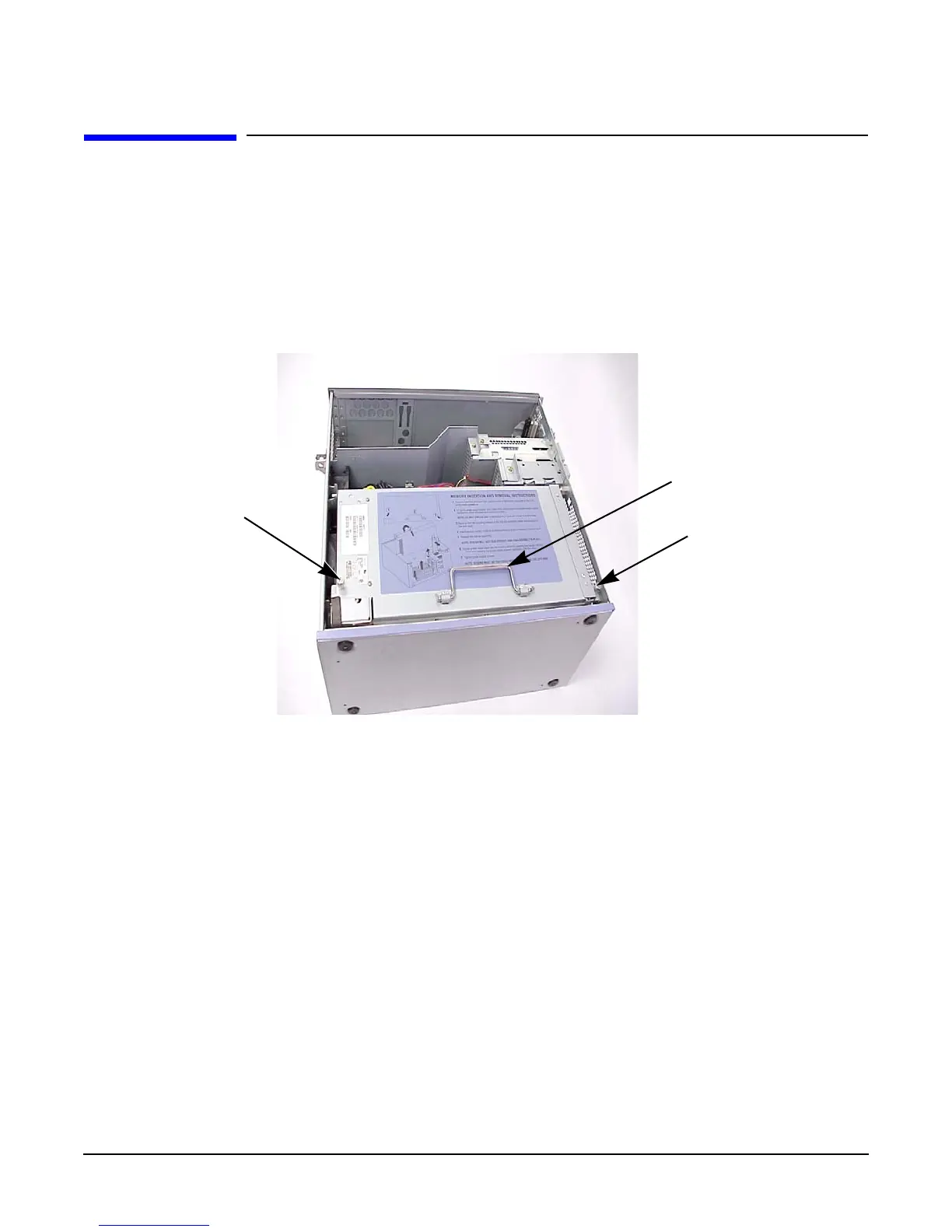

Figure 2-7. Power Supply Screws and Handles
T15 Torx
Power Supply
Thumbscrew
Handle
T15 Torx
Thumbscrew
3. Alternately loosen the two T-15 Torx screws from the corners of the power supply as shown
above.
