Upgrading Your System

Reconnecting Cables

1. Connect the following nine cables to their respective connectors on the system board (which, for clarity, is

again shown outside the chassis):

• Fan cables for top and bottom system-board fans and I/O fan

• Power cable for Optical Device

• Data cables for Optical Device and ﬂoppy drive

• Front-panel display cable

• Ultra 2 Wide LVD SCSI cable

• Speaker cable

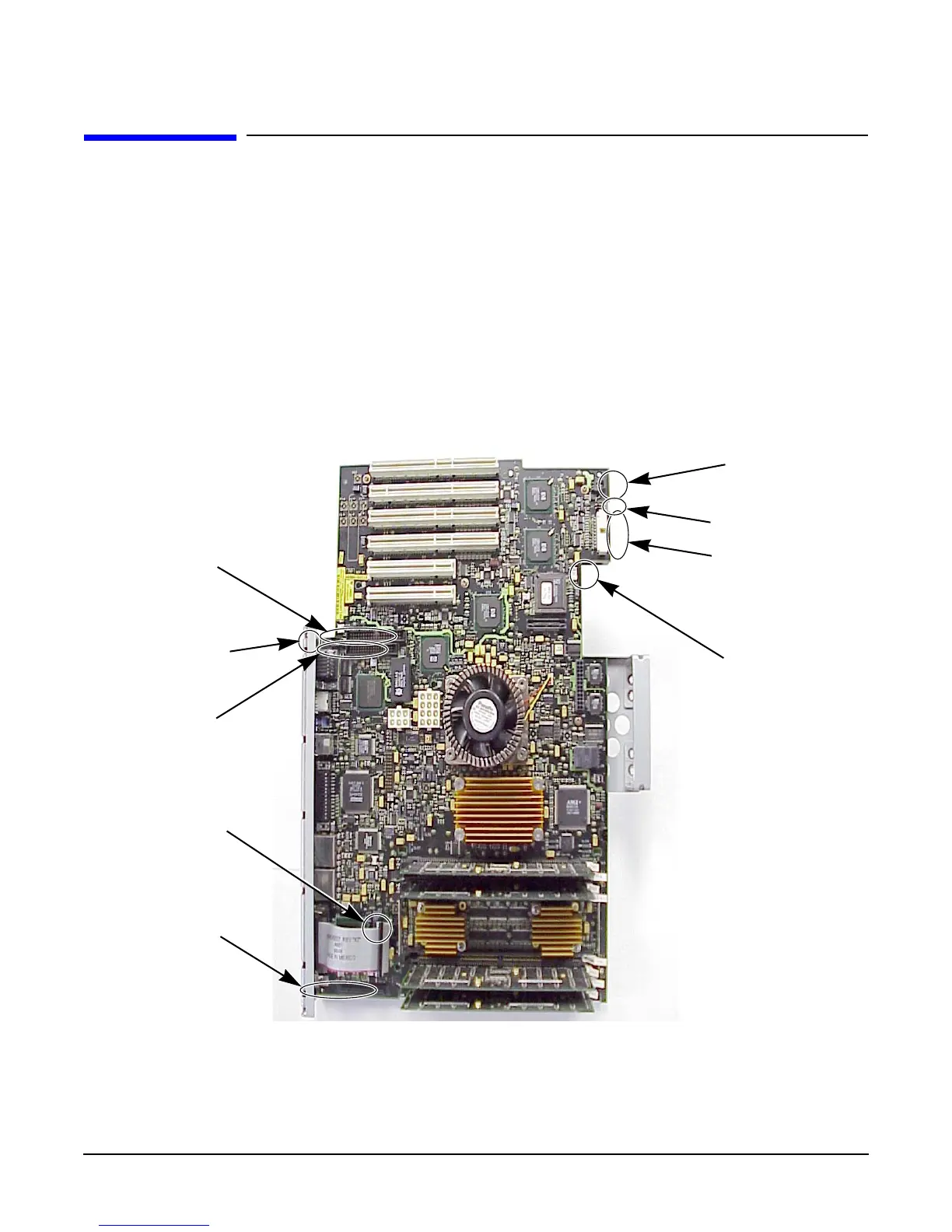

Figure 2-17 Connecting the Cables

Speaker Connecto

Bottom Sys. Board Fan

ower Connector

op Sys. Board Fan

ower Connector

Front-Panel Displa

Connector

ata Connector

ltra 2 Wide LVD

CSI Connector

I/O Fan

Power Connector

Optical Device

Power

Cable Connector

Floppy Drive

2. Inspect the system board to ensure that all cables are connected (all cables, except the fan cables, are

unique and ﬁt only one connector) and securely seated—loose connections may result in poor system

performance.

Chapter 2

HP b2600 Upgrade Instructions
