Upgrading Your System
Replacing the Left Side Panel
Replacing the Left Side Panel
1. Replace the left side panel by holding it an angle and inserting its top and bottom hinge hooks
with their respective slots in the chassis. Swing the back edge of the panel toward the back of the
workstation and press the panel firmly into place.

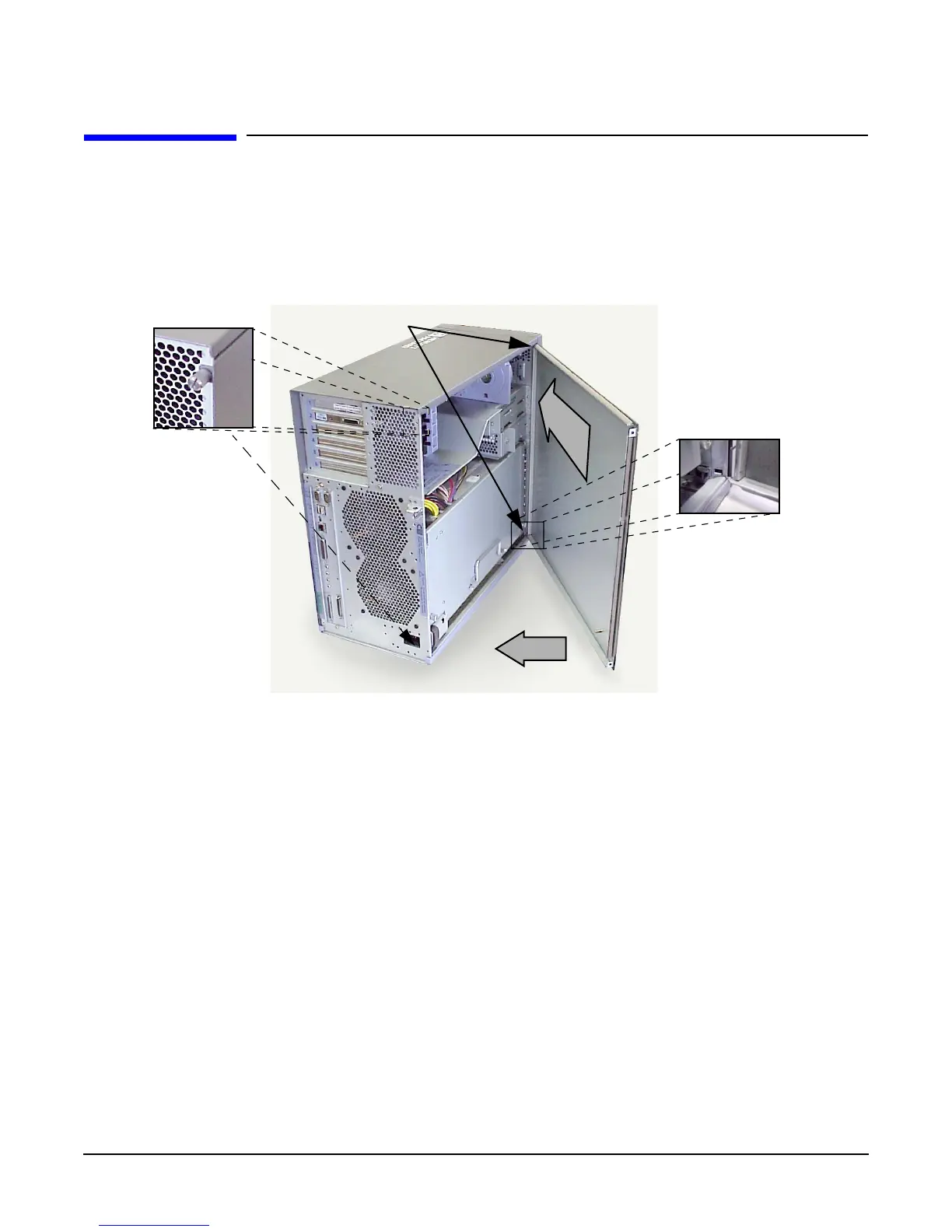

Figure 2-26 Opened Side Panel
Side-Panel Thumbscrew
Side-Panel Hook
1
2
Hinge Slots
2. Replace the two T-15 Torx thumbscrews that secure the left side panel to the chassis.
3. For each of the two SCSI connectors on the rear wall of the chassis, replace either the external
SCSI devices (if you had any such devices attached previously) or the appropriate terminator (if
you didn’t have any external devices attached). One or the other must be in place.
4. The LVD SCSI bus must be properly terminated.
