Upgrading Your System
Reinstalling the Power Supply
Reinstalling the Power Supply
1. To install the power supply:
a. Pick up the power supply by the handle and position its right-side hinge pin into the right side hinge
bracket, as shown below.
b. Align the shaft of the spring hinge (on the left side) with its hole in the hinge bracket, release the
spring-hinge lever, and let it snap left into the hole.
c. Reconnect the power supply to the bail lock.

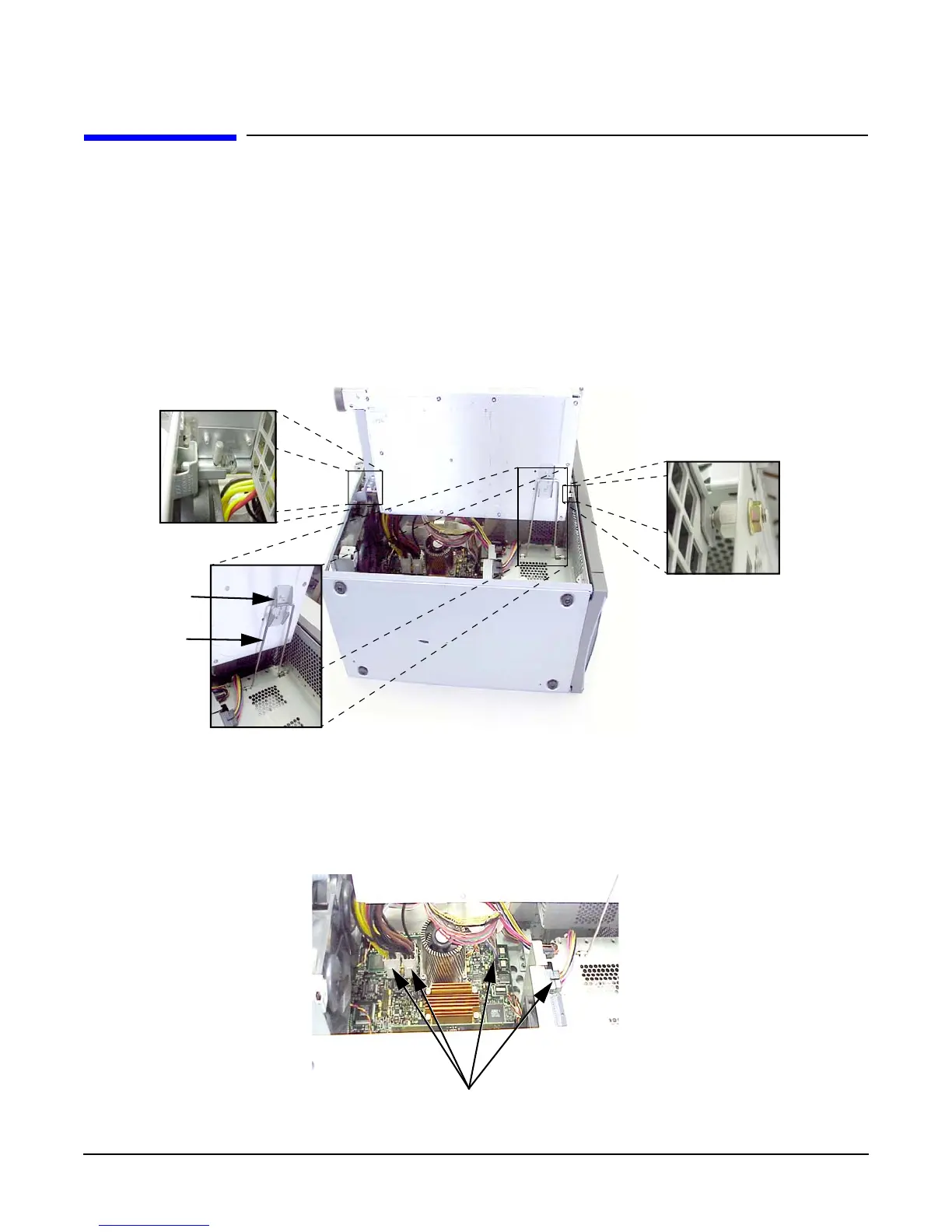

Figure 2-23 Reinstalling the Power Supply
Bail
Spring Hinge
Bail
Lock
Right-side Hinge Pin
2. Connect the four power cables.
• Three system power cables
• SCA hard-disk backplane power cable
Figure 2-24 Location of Power Cables
Power Cables
28
Chapter 2
