HP Compaq 6000 Pro User Manual

Graphics Board
Description Spare part number
Graphics card, G210, 512 MB 621426-001
Graphics card, HD5570, 1 GB 628380-001
Graphics card, GFX, 1 GB 652164-001
The graphics board is located under the bottom part of the heat sink. You must remove the heat sink to
remove the graphics board. The board is secured with two screws.

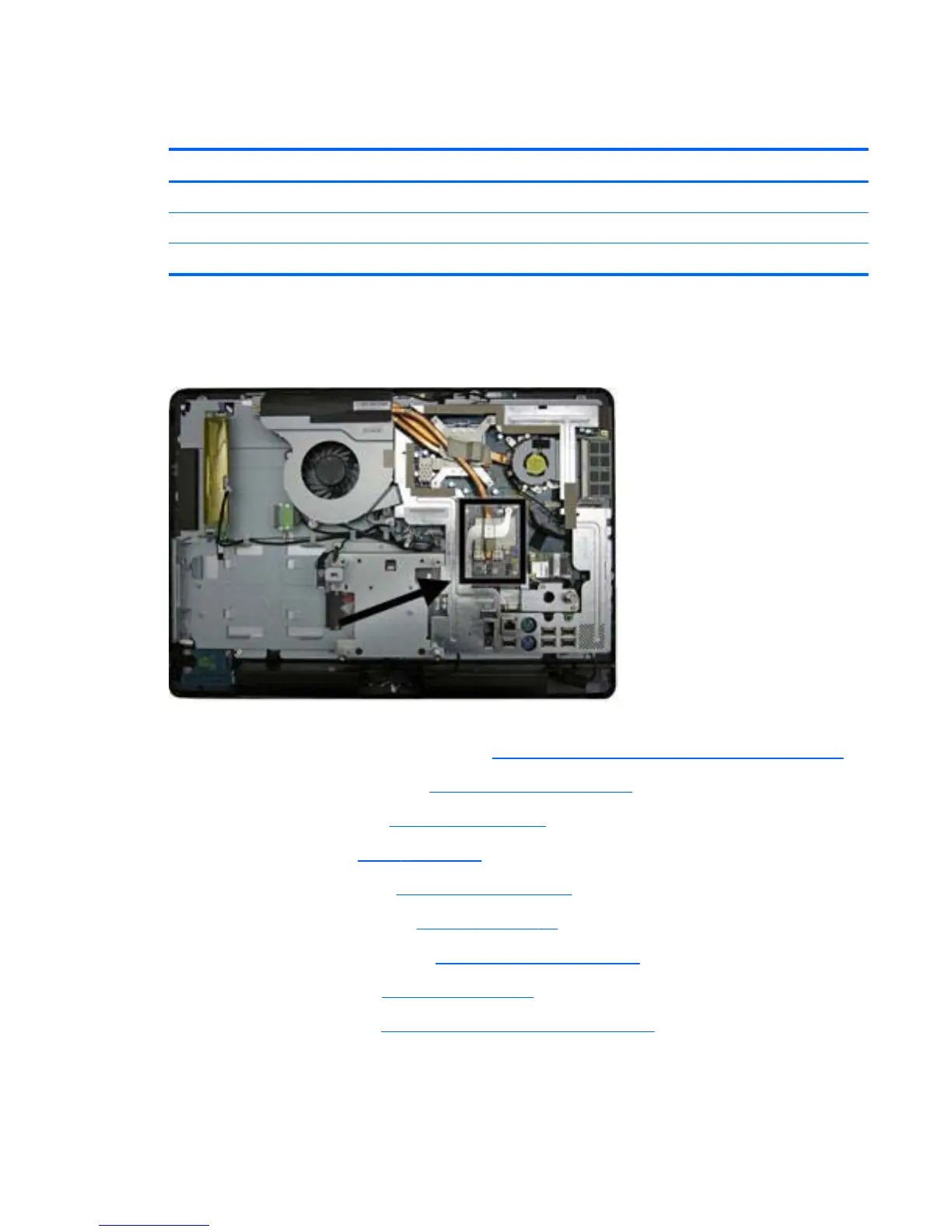

Figure 7-23 Graphics board location
To remove the graphics board:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer on page 43).
2. Remove the small rear cover (see
Small Rear Cover on page 44).
3.
Remove the port cover (see
Port Cover on page 45).
4. Remove the stand (see
Stand on page 46).
5. Remove the drive cover (see
Optical Drive on page 47).
6. Remove the memory cover (see
Memory on page 53).
7. Remove the upper rear panel (see
Upper Rear Panel on page 55).
8. Remove the small fan (see
Small Fan on page 61).
9. Remove the heat sink (see
Heat Sink (Thermal Module) on page 62).
10.
Remove two small screws (1) that secure the board to the computer.
Graphics Board
65

HP Compaq 6000 Pro Specifications

General

Tcase	72.4 °C
Bus type	FSB
Stepping	C0
Processor cache	6 MB
Processor cores	2
Processor model	E8500
Processor family	Intel® Core™2 Duo
Processor series	Intel Core 2 Duo E8000 Series
Processor socket	LGA 775 (Socket T)
Processor codename	Wolfdale
Processing Die size	107 mm²
Processor frequency	3.16 GHz
Processor cache type	L2
Processor lithography	45 nm
Processor system type	DP
Processor manufacturer	Intel
Processor front side bus	1333 MHz
Processor operating modes	64-bit
ECC supported by processor	No
Thermal Design Power (TDP)	65 W
Processor core voltage (AC)	0.850/1.3625 V
Number of processors installed	1
CPU multiplier (bus/core ratio)	9.5
Number of Processing Die Transistors	410 M
Platform	PC
LightScribe	Yes
Power supply type	AC/DC
Security features	TPM 1.2
External drive bays	2 x 5.25\
Internal drive bays	2 x 3.5\
Networking features	Gigabit Ethernet
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Audio system	Realtek ALC261
Motherboard chipset	Intel® Q43
Audio output channels	2.0 channels
Memory slots	4x DIMM
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	16 GB
Memory layout (slots x size)	2 x 2 GB
HDD size	3.5 \
HDD speed	7200 RPM
HDD interface	SATA
Optical drive type	DVD-RW
Total storage capacity	500 GB
Discrete graphics card model	Not available
On-board graphics card model	Intel® GMA 4500
On-board graphics card family	Intel® GMA
Operating system installed	Windows 7 Professional
USB 2.0 ports quantity	10
Firewire (IEEE 1394) ports	0
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Chassis type	Micro Tower
Product color	Black
Country of origin	China
Cable lock slot type	Kensington
Number of 3.5\" bays	3
Power supply	320 W
Processor code	SLAPK
Processor ARK ID	33911
Processor package size	37.5 x 37.5 mm

Weight and Dimensions

Depth	430 mm
Width	176 mm
Height	377 mm
Weight	9300 g
