HP Compaq 6000 Pro User Manual

WLAN Module
Description Spare part number
WLAN module (802.11b/g/n) 593897-001
WLAN module (802.11a/b/g/n, 2x2) 652165-001
The WLAN module is located on the lower right side of the computer. The module is secured with one
screw and has two connected antennas.

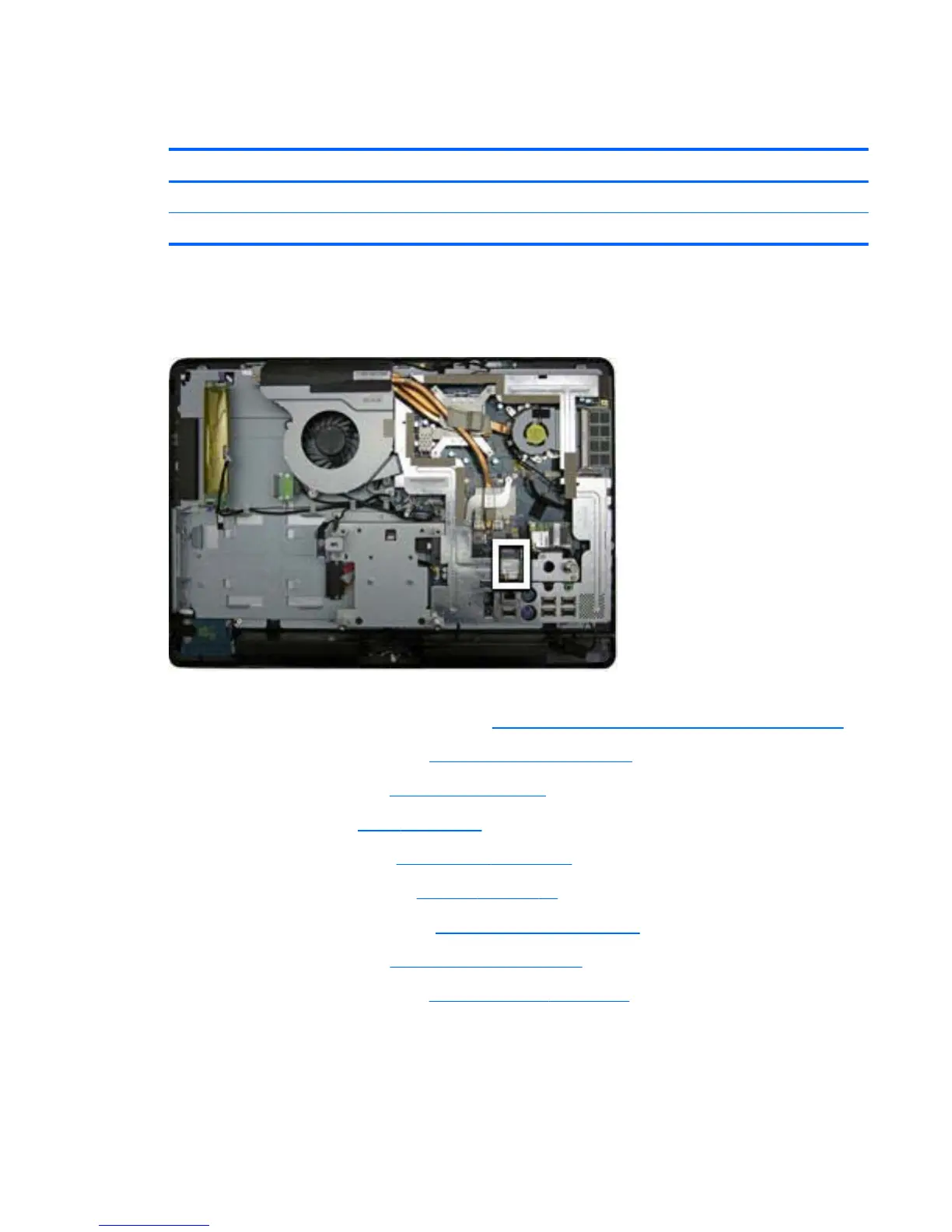

Figure 7-31 WLAN module location
To remove the WLAN module:
1.
Prepare the computer for disassembly (see
Preparing to Disassemble the Computer on page 43).
2. Remove the small rear cover (see
Small Rear Cover on page 44).
3.
Remove the port cover (see
Port Cover on page 45).
4. Remove the stand (see
Stand on page 46).
5. Remove the drive cover (see
Optical Drive on page 47).
6. Remove the memory cover (see
Memory on page 53).
7. Remove the upper rear panel (see
Upper Rear Panel on page 55).
8. Remove the I/O panel (see
Rear I/O Cover on page 67).
9. Remove the cable connector (see
Cable Connector on page 71).
10.
Disconnect the two antenna cables from the module (1).
11.
Remove the screw (2) that secures the module to the computer.
WLAN Module
73
