CAUTION: Clearing CMOS and/or NVRAM deletes configuration information. Be sure to
properly configure the server or data loss could occur.
NMI jumper
The NMI jumper allows administrators to perform a memory dump before performing a hard reset. Crash
dump analysis is an essential part of eliminating reliability problems, such as hangs or crashes in OSs,
device drivers, and applications. Many crashes can freeze a system, requiring you to do a hard reset.
Resetting the system erases any information that would support root cause analysis.
Systems running Microsoft® Windows® experience a blue-screen trap when the OS crashes. When this
happens, Microsoft® recommends that system administrators perform an NMI event by temporarily
shorting the NMI header with a jumper. The NMI event enables a hung system to become responsive
again.
HP Systems Insight Display LEDs

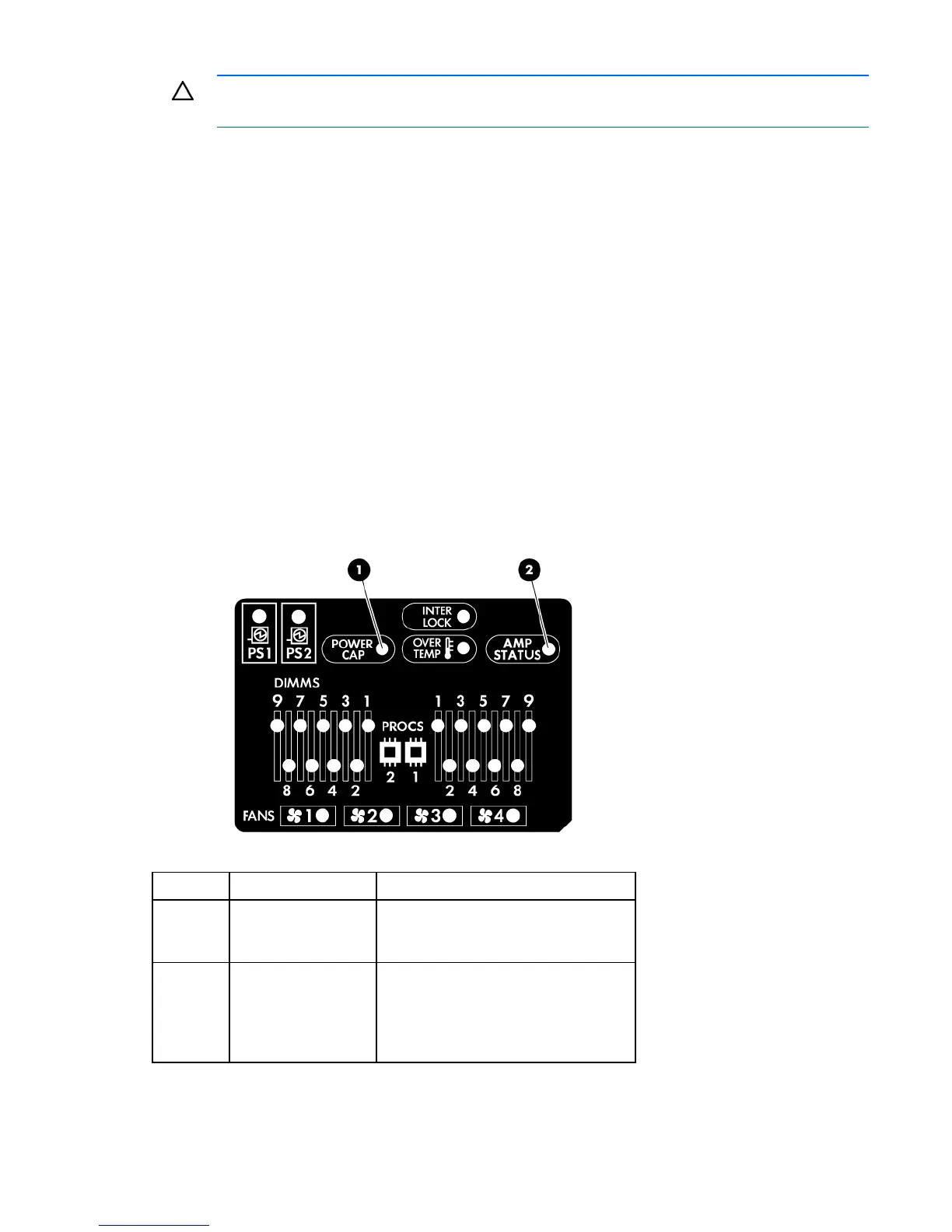

The HP Systems Insight Display LEDs represent the system board layout. The display provides status for all
internal LEDs and enables diagnosis with the access panel installed.
To view the LEDs, access the HP Systems Insight Display (on page 21).
Item Description Status
1 Power cap LED To determine Power cap status, see
"Systems Insight Display LED
combinations (on page 15)."
2 AMP status Green = AMP mode enabled
Amber = Failover
Flashing amber = Invalid configuration
Off = AMP mode disabled
